Product Details
| Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | ut802 |
| Measuring Current Range: | 200μA-10A | Measuring Voltage Range: | 200mV-1000V | Measuring Resistance Range: | 200Ω-200MΩ |
| Measuring Capacitance Range: | 20nF-200μF | Operating Temperature: | -40 °C - 1000°C | Dimensions: | 300mm * 245mm * 105mm |
Product Description

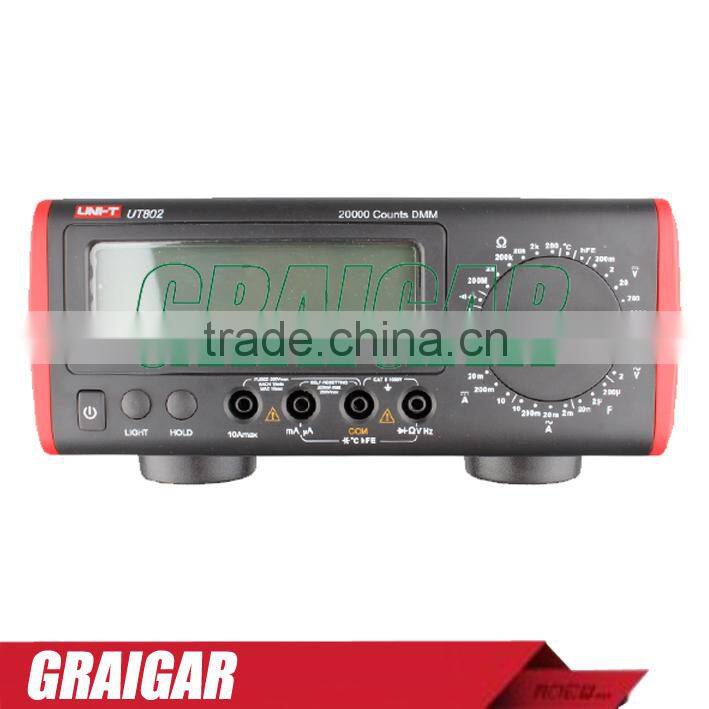

Bench Type Digital Multimeters UNI-T UT802 automatic range True Valid Values average value display
Introduction
UT802 is a manual range digital bench-type multimeter with average value display, full function and
full range overload protection and a unique outlook design. It can be powered by AC 220V/50Hz or 1.5V
batteries(R14)*6. It’s your ideal testing meter with superior performance.
UT802is widely used in Industrial Production and Service, Technological Research and Design,
College Education (Laboratory, Courses), and Automotive Industry. The meter complies with IEC61010-1
standard, CATII 1000V.
Specification
| Specifications | Range | Best Accuracy | |
| Model | UT801 | UT802 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+2) | ±(0.1%+3) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) | ±(0.5%+20) |
| DC Current (A) | 200μA/2mA/20mA/200mA/10A | ±(0.8%+2) | ±(0.5%+20) |
| AC Current (A) | 2mA/20mA/200mA/10A | ±(1.0%+3) | ±(0.8%+40) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+3) | |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ | ±(0.5%+10) | ||
| Capacitance (F) | 20nF/2μF/200μF | ±(4%+3) | ±(4%+10) |
| Frequency (Hz) | 2kHz/200kHz | ±(1.5%+5) | ±(1.2%+10) |
| Temperature (°C) | -40 °C~1000°C | ±(1.2%+3) | ±(1.2%+25) |
| Features | |||
| Display Count | 2000 | 20000 | |
| Manual Range | √ | √ | |
| Diode | √ | √ | |
| Transistor | √ | √ | |
| Continuity Buzzer | √ | √ | |
| Low Battery Indication | √ | √ | |
| Data Hold | √ | √ | |
| LCD Backlight | √ | √ | |
| Input Impedance for DCV | Around 10MΩ | √ | √ |
| Misuse Alarm | √ | √ | |
| General Characteristic | |||
| Power | AC 220V/50Hz or 1.5V Batteries (R14)×6 | ||
| LCD Size | 108mm × 34.5mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 1650g | ||
| Product Size | 300mm × 245mm × 105mm | ||
| Standard Accessories | Battery, Test Lead,Alligator Clip, Point Contact Temperature Probe, Multi-Purpose Socket, AC 220V Power Cord, Power Adapter | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 4 PCs | ||
| Standard Carton Measurement | 680mm×365mm×320mm(0.0794 CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 11.7 Kg | ||
Accessory
- Battery, (not included)
- Test Lead,
- Alligator Clip,
- Point Contact Temperature Probe,
- Multi-Purpose Socket,
- AC 220V Power Cord,
- Power Adaper
