DY5500 Multi Function Tester
US$ 130 - 160
/ Piece
1 Piece(Min. Order)
- ShenZhen
- T/T Money Gram Credit Card PayPal
You May Like
-
Original TES PROVA 210 Solar Module Analyzer Prova-210
-
UTE1010A Uni-t Digital Power Meter True Rms Power Factor Analyzer 0.3W ~ 3000W
-
UNI-T UT70B LCD Digital Multimeter Frequency Conductance Logic Test Transistor Temperature Analog Display
-
Uni T Ut512 Insulation Resistance Tester Meter Ohm 2500v Usb Interface Ohm
-
2500V Digital Insulation Resistance Meter Tester Megohmmeter Highly Voltmeter Continuity Tester W/LCD Backlight UNI-T UT502A
-
UNI-T UT70C LCD Digital Multi-purpose Meter Multimeters Volt Amp Ohm Capacitance Tester UT-70C
Product Details
| Type | Battery Tester | Voltage | 250V,500V,1000V | |
| Certification | CE | Applicable Models | Auto ranging, data hold, More Auto ranging, data hold, LCD backlight | |
| Brand Name | DUOYI | Model Number | DY5500 |
Product Description
Specifications
DY5500 Multi Function Tester
DY5500 Multi Function Tester
Features
- Ground resistance measurements from 0.01ohm to 2000ohms with 0.01ohm resolution
- Measure insulation resistance to 2000M ohms
- Test voltage 250V, 500V, 1000V
- AC voltage measurement to 600V
- Check phase sequence and phase status
- Auto ranging, data hold, LCD backlight
- Low battery warning
- Complete with test leads, auxiliary earth bars, phase wire, heavy duty carry case and eight AA 1.5V dry cells
Specifications
| MODEL | DY5500 |
|---|---|
| Earth Resistance | 0~20/200/2000Ω ±(2%+5) |
| Testing Voltage | 250/500/1000V |
| Insulation Resistance | 0.1~2000MΩ ±(3%+5) |
| Phase Rotation Check | yes |
| AC V | 700V ±(2%+5) |
| Auto Range | yes |
| Function Symbol Display | yes |
| Data Hold | yes |
| Low Battery Warning | yes |
| Max. Displays | 1999 |
| LCD Backlight | yes |

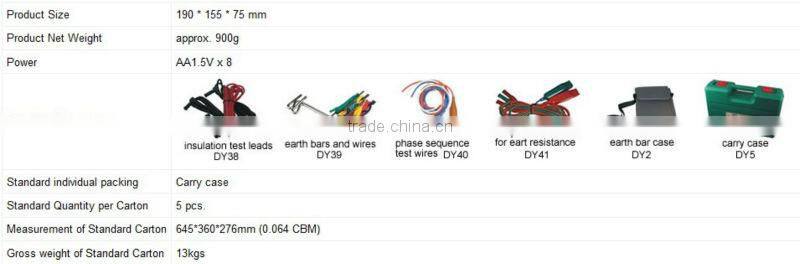

General Characteristics
