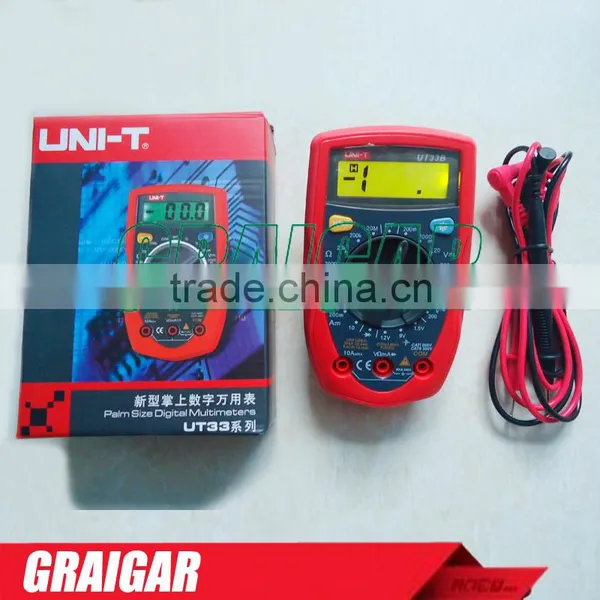

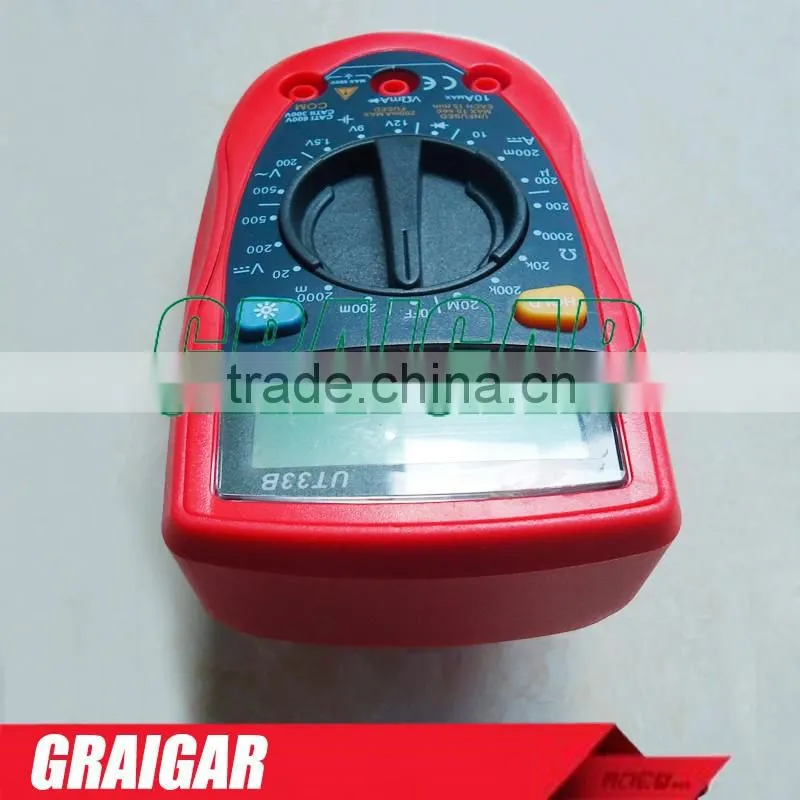

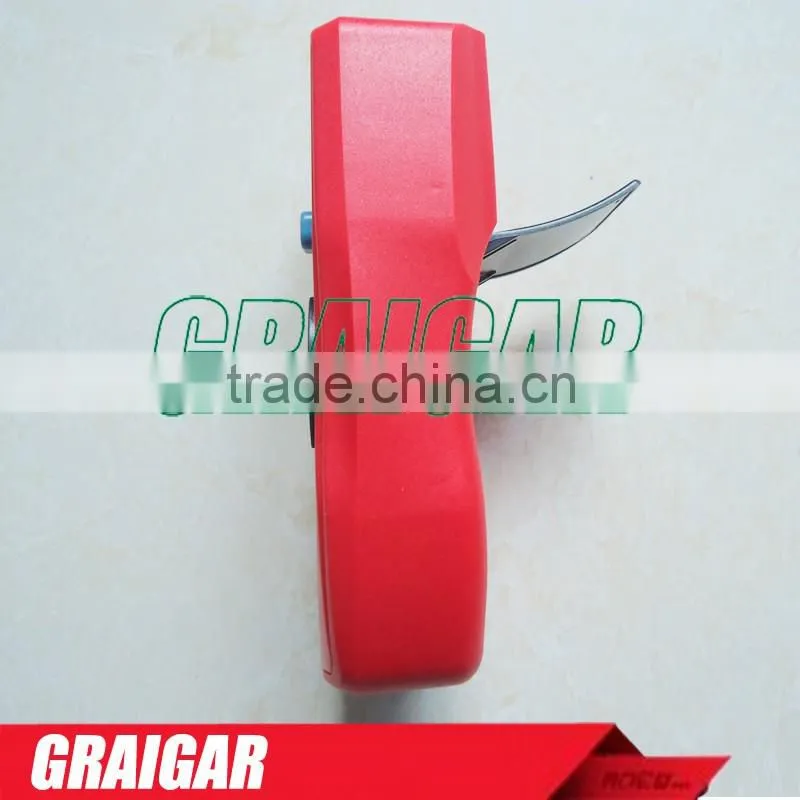

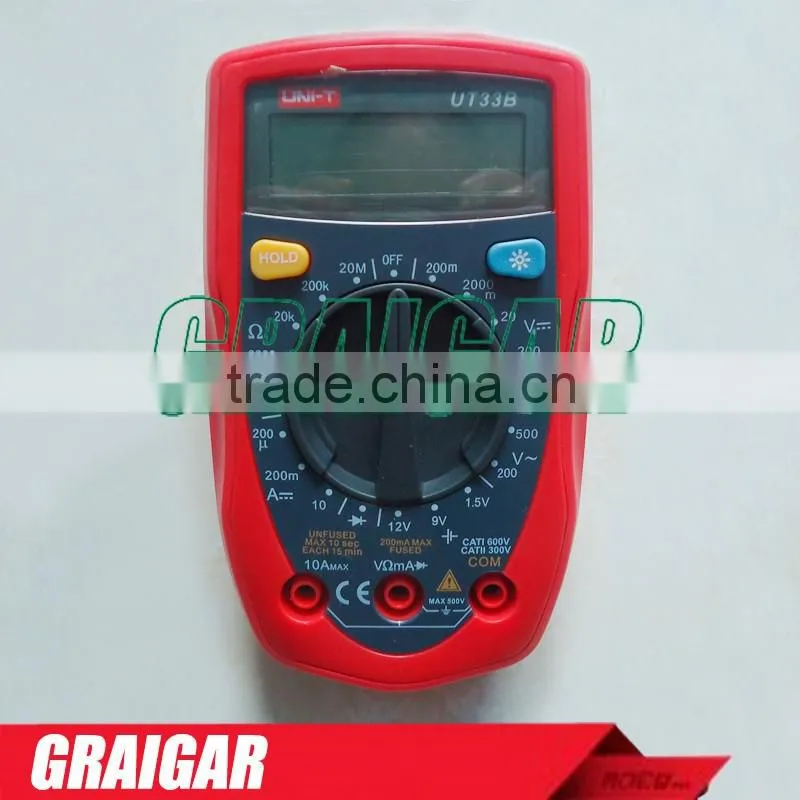

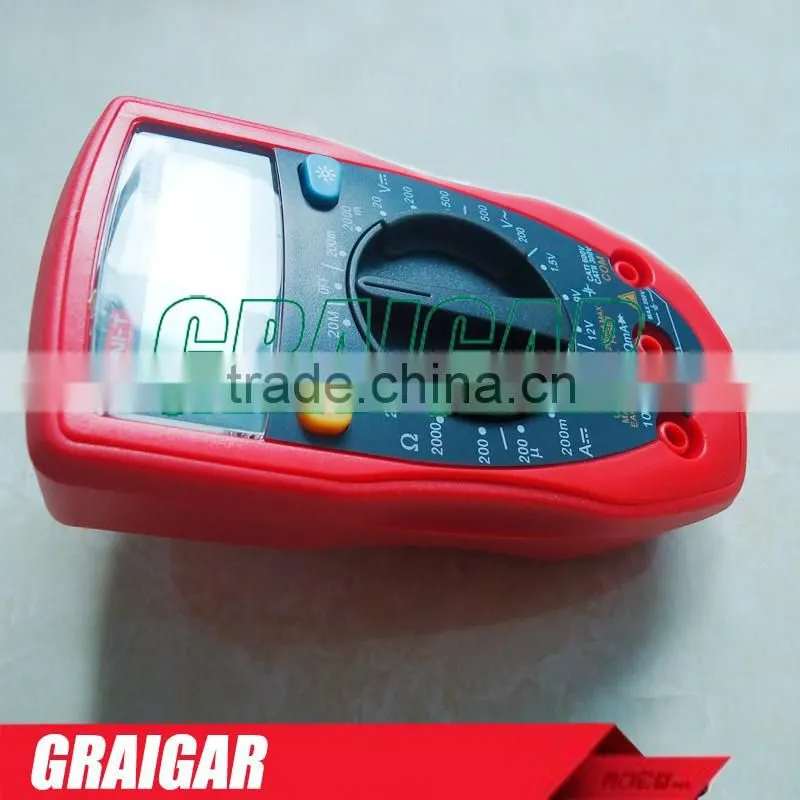

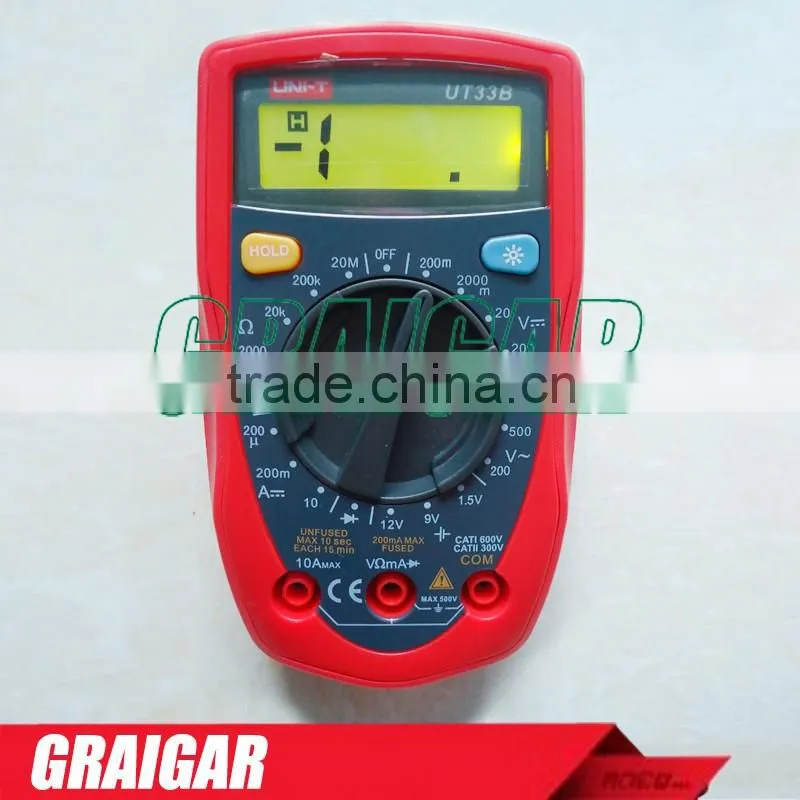

UNI-T UT33B Palm Size DC/AC Voltage DC Current Resistance DMM Digital Multimeters With Battery Test Multimetro
US$ 1 - 7
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT33B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UNI-T UT33D Palm Size Digital Multimeter Handheld AC DC Volt Ohm MeterUS$ 1 - 8MOQ: 5 Pieces -
Modern Digital Multimeters UNI-T UT151E Handheld Multi Purpose Meter Voltage Tester Overload Protection High PreciasionUS$ 1 - 25MOQ: 5 Pieces
-
General Digital Multimeters UNI-T UT58E Voltage Current Resistance Capacitance Temperature Meter TesterUS$ 1 - 40MOQ: 5 Pieces
-
General Digital Multimeters UNI-T UT58A Voltage Current Resistance Capacitance Temperature Meter TesterUS$ 1 - 20MOQ: 5 Pieces
-
UNI-T UT216C 600A True RMS Digital Clamp Meters Auto Range W/Frequency Capacitance Temperature NCV TestUS$ 1 - 60MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UT33B
Measuring Current Range
200μA-10A
Measuring Voltage Range
200mV-500V
Measuring Resistance Range
200Ω-20MΩ
Measuring Capacitance Range
none
Measuring Inductance Range
none
Operating Temperature
-40 °C - 1000°C
Dimensions
130mm*73.5mm*35mm
UNI-T UT33B Palm Size DC/AC Voltage DC Current Resistance DMM Digital Multimeters with Battery Test Multimetro
Introduction
UT33 Series handheld digital multimeter is a fully functional, stable performance, novel structure, safe and reliable, cost-effective small handheld 3 1/2 digit digital multimeter manual range.
Can be used in homes, schools, metallurgy, communications, manufacturing, petroleum, defense, power, chemical and other fields, is a circuit, electrical equipment maintenance, the ideal tool for maintenance.
Specification
| Model | UT33A | UT33B | |
| DC Voltage (V) | 400mV/4V/40V/400V/500V | ±(0.8%+1) | |
| 200mV/2000mV/20V/200V/500V | ±(0.5%+2) | ||
| AC Voltage (V) | 4V/40V/400V/500V | ±(1.2%+3) | |
| 200V/500V | ±(1.2%+10) | ||
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+2) | |
| 200μA/200mA/10A | ±(1%+2) | ||
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.5%+5) | |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) | |
| 200Ω/2000Ω/20KΩ/200KΩ/20MΩ | ±(0.8%+2) | ||
| Features | |||
| Display Count | 3999 | 1999 | |
| Auto Range | √ | ||
| Model Range | √ | ||
| Battery Test | ±(2.5%+2) | ||
| Diode | √ | √ | |
| Transistor | √ | ||
| Continuity Buzzer | √ | ||
| Low Battery Indication | √ | √ | |
| Input Impedance for DCV | ≥10MΩ | √ | √ |
| Data Hold | √ | ||
| LCD Backlight | √ | ||
| General Characteristic | |||
| Power | UT33A-1.5V Batteries (R03)×2 (not included) ,UT33B- 9V Batteries(6F22) |
||
| LCD Size | 48mm×16mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 179g (Including Holster) | ||
| Product Size | 130mm×73.5mm×35mm | ||
| Standard Accessories | Batteries, Test Lead,Holster | ||

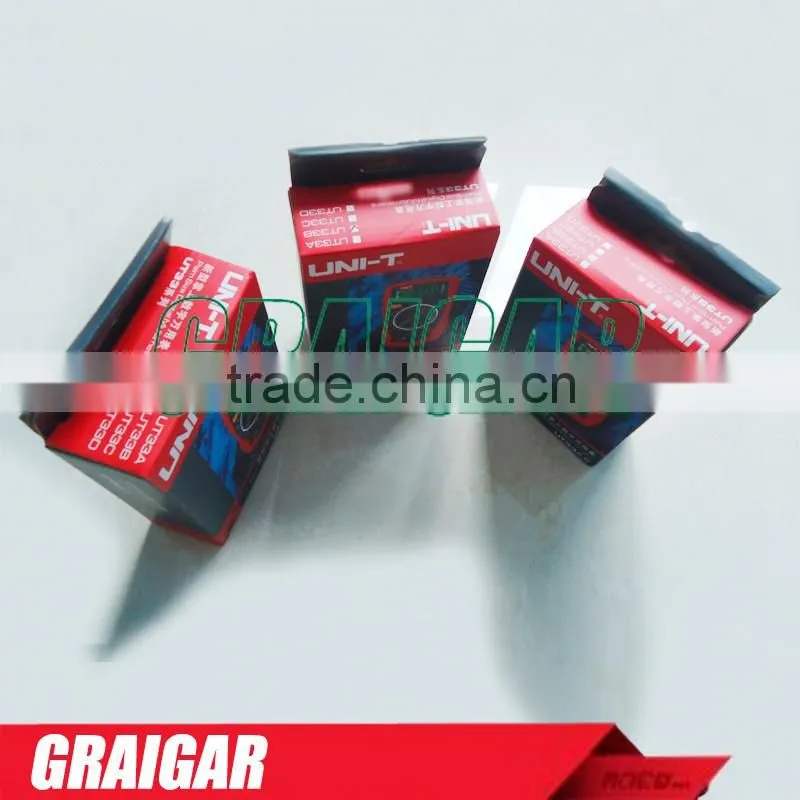

| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 60Pcs | ||
| Standard Carton Measurement | 490mm×356mm×315mm (0.055 CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 18Kg |
||

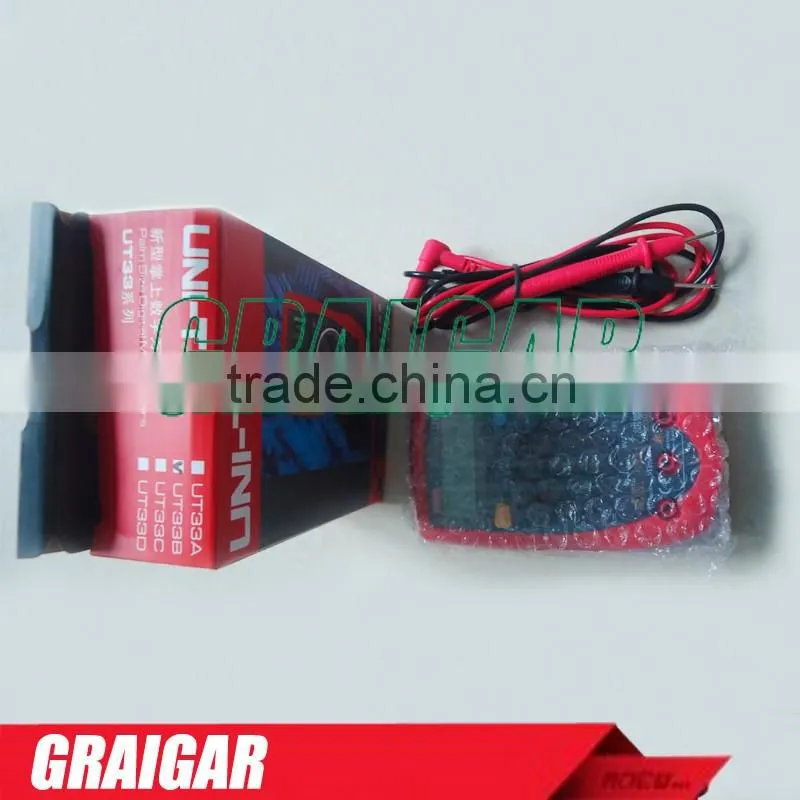

Accessory
1. Battery,(not included)
2. Test Lead
3. Holster
