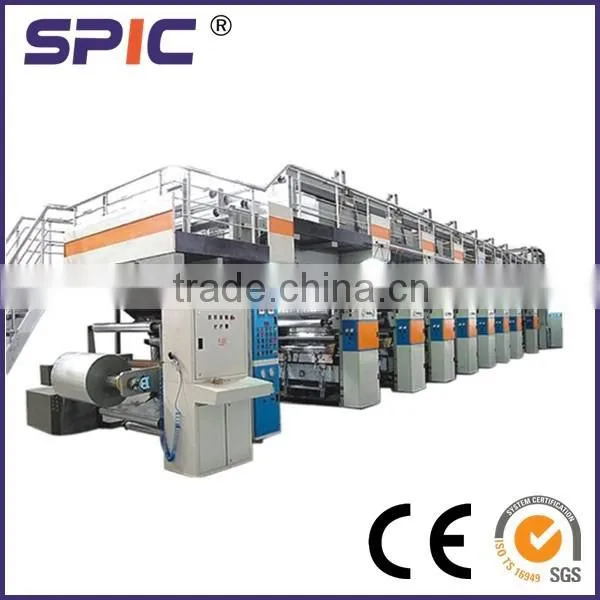

ELS High speed 8 color rotogravure printing machine
Unwind unit of rotogravure printing machine
Structure
- Structure: turret type
- Loading web mode: air shaft
- Independent driving control system: vector frequency conversion control system
- The opposite sensor couple automatic position the new reel for unwind
- Tension detect: displacement of dancing roller
- Auto tension controller
- Closed loop tension control
- Pre-driving of waiting roller before roll exchange and splicing
- Auto position limit for unwind stand turning
- Web Guide (EPC)
Infeed unit
Structure
- Mutual impression with one steel roller and one rubber roller
- Steel roller controlled by imported vector frequency conversion control system
- Rubber roller controlled by pneumatic cylinder
- Tension detect: displacement of dancing roller
- Dancing roller driven by mini friction air cylinder
- Auto tension controller: touch screen + PLC
- Closed loop tension control
Feature
Mutual impression by steel and rubber roller to guarantee the stage tension;
Independent tension control for stable printing tension;
Integrated tension control with main machine
Integrated rubber roller with main machine, controlled by central control unit
Independent framework for infeed unit

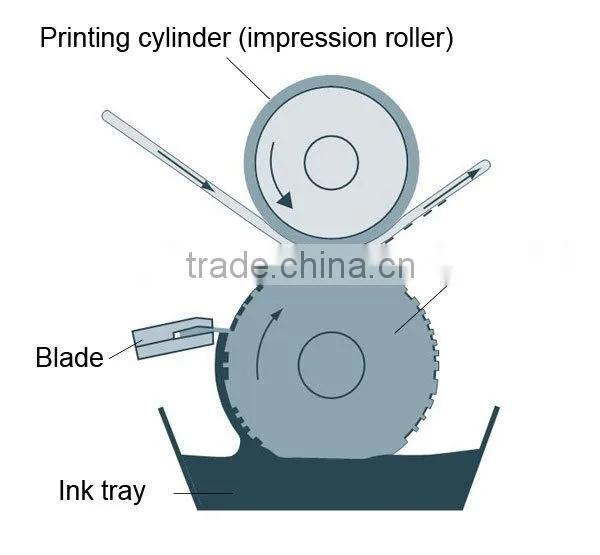

Printing unit
Structure
- Structure type: shaftless
- Shaftless cylinder for rapid cylinder exchange;
- Arm style for impression rubber for tension compensation to guarantee stable tension for up/down;
- Impression rubber roller can auto impress in order, easy to operate
- Rubber roller impresses printing cylinder in order but up at the same time
- Three-direction adjust pneumatic doctor blade for optimal position
- Integrated rate with main driving system of transverse movement of doctor blade;
- Auto backflow ink pan with manual rise/down adjustment;
Parameter
Length of printing cylinder 780~1000mm
Dia. of impression roller Φ125mm (A) 70°-75°
Max. Impression pressure 370kgf
Doctor movement ±5mm
Doctor blade pressure 10~150kgf
Feature
Shaftless cylinder for rapid cylinder exchange;
Full range for color compensation;
Optional position for doctor blade by three direction adjustments;
Transverse pre-cylinder position with scale
Drying unit:
Structure
- Individually control for every color
- Intelligentized constant temperature control;
- Sharp heat air injector;
- Electrical heating and hot oil heating system.
- Pneumatically open/close cabinet with guide way and trolley
