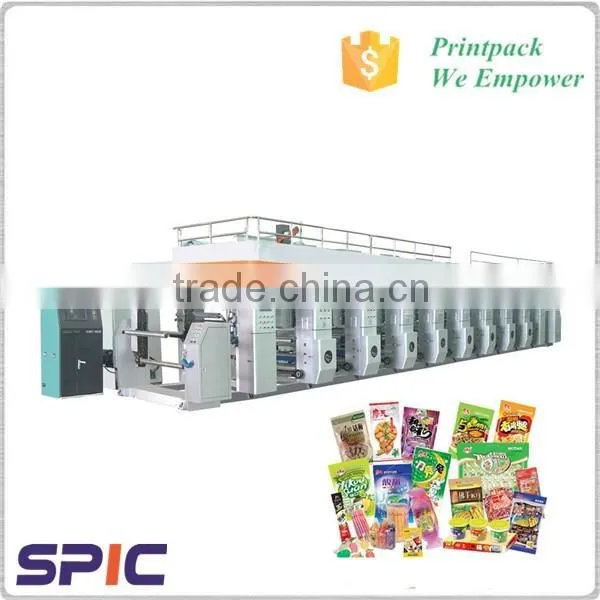

BWY-1050 8 color rotogravure printing machine price in China
Unwind unit
Structure
- Structure: turret type
- Loading web mode: air shaft
- Independent driving control system: vector frequency conversion control system
- The opposite sensor couple automatic position the new reel for unwind
- Tension detect: displacement of dancing roller
- Auto tension controller
- Closed loop tension control
- Pre-driving of waiting roller before roll exchange and splicing
- Auto position limit for unwind stand turning
- Web Guide (EPC)
Infeed unit
Structure
- Mutual impression with one steel roller and one rubber roller
- Steel roller controlled by imported vector frequency conversion control system
- Rubber roller controlled by pneumatic cylinder
- Tension detect: displacement of dancing roller
- Dancing roller driven by mini friction air cylinder
- Auto tension controller: touch screen + PLC
- Closed loop tension control
Feature
Mutual impression by steel and rubber roller to guarantee the stage tension;
Independent tension control for stable printing tension;
Integrated tension control with main machine
Integrated rubber roller with main machine, controlled by central control unit
Independent framework for infeed unit

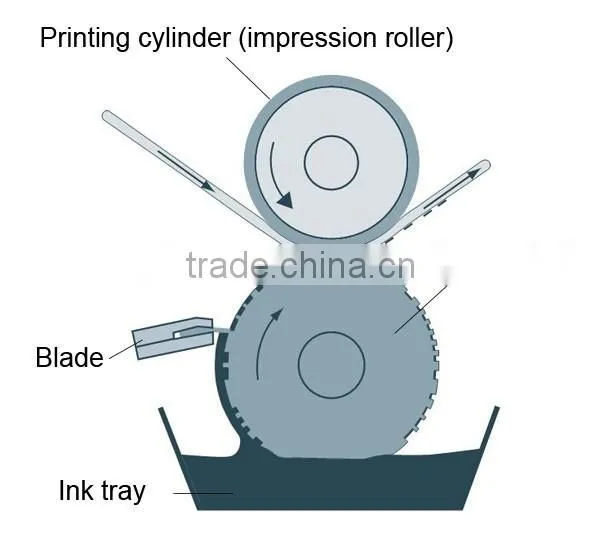

Printing unit
Structure
- Structure type: shaftless
- Shaftless cylinder for rapid cylinder exchange;
- Arm style for impression rubber for tension compensation to guarantee stable tension for up/down;
- Impression rubber roller can auto impress in order, easy to operate
- Rubber roller impresses printing cylinder in order but up at the same time
- Three-direction adjust pneumatic doctor blade for optimal position
- Integrated rate with main driving system of transverse movement of doctor blade;
- Auto backflow ink pan with manual rise/down adjustment;
- Compensation roller adopts up/down movement with precise screw lead;
- Full closed gear box for main driving;
- Reverse turn bar unit for the last color
Parameter
Length of printing cylinder 780~1000mm
Dia. of impression roller Φ125mm (A) 70°-75°
Max. Impression pressure 370kgf
Doctor movement ±5mm
Doctor blade pressure 10~150kgf
Feature
Shaftless cylinder for rapid cylinder exchange;
Full range for color compensation;
Optional position for doctor blade by three direction adjustments;
Transverse pre-cylinder position with scale
Drying unit:
Structure
- Individually control for every color
- Intelligentized constant temperature control;
- Sharp heat air injector;
- Electrical heating and hot oil heating system.
- Pneumatically open/close cabinet with guide way and trolley
Feature
Independent temperature control for ease of operation of every printing unit
Big airflow and high air speed for low temperature drying mode
Inside negative pressure without heat air outlet;
Out-feed unit
Structure
- Mutual impression with one steel roller and one rubber roller;
- Steel roller controlled by imported vector frequency conversion control system
- Rubber roller controlled by pneumatic cylinder
- Tension detect system and dancing roller stabilization system
- Tension detect: displacement of dancing roller
- Dancing roller driven by mini friction air cylinder
- Auto tension controller: touch screen + PLC
- Closed loop tension control
Feature
F Mutual impression by steel and rubber roller to guarantee the stage tension;
F Independent tension control for stable printing tension;
F Impression controlled by central control unit, integrated with main machine;
F Integrated tension control with main machine;
Rewind unit
Structure
- Turret type and independent rewind stand
- Loading web mode: air shaft
- Tension detect: displacement of dancing roller
- Auto tension controller control the cluth.
Parameter
Max. rewind width 1250mm
Max. rewind Dia.Φ600mm
Rewind motor 2×4kW
Tension setting range 3~50kgf
Tension precision≤3
Web Guide (EPC)
Framework and guide roller
Structure
- High strength and low stress casting iron;
- Module style design;
- Casting iron for beam;
Feature
Tress eliminated for stableness;
Imported machining center;
Reasonable layout of the rollers for smooth web flow;
