2-12oz different sizes automatic paper cup machine

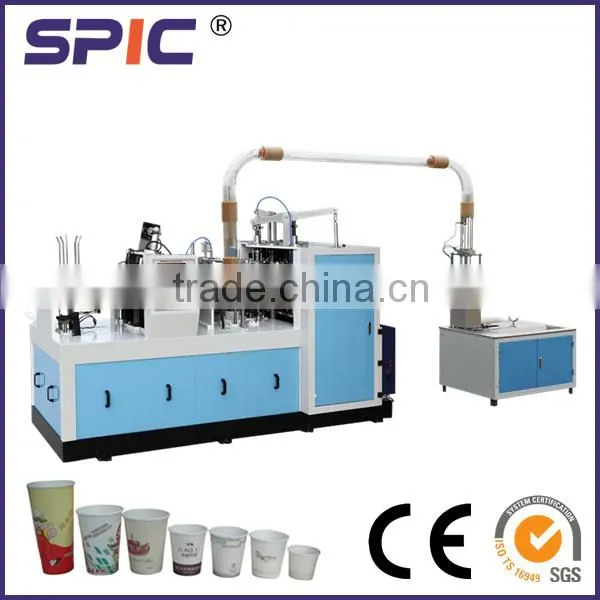

Automatic paper cup machine

Features:
1.Automatic paper cup machine adopt ultrasonic wave technology bonding, which ensures high

bonding strength and handsome appearance.

2. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.

3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)

4. The heat seal barrel forming part is provided with non-cup barrel detection, alarming and sopping

functions, which enhance the automation degree of the machine.

(optional according to the demand of the customer)

5. The bottom-punching part is changed into mechanical probe type detection which

ensures the detection precision and the pass rate of finished products.

6. The machine adopts high-position stopping device, so that the machine always stops at

 the highest point, the mold and the heating furnace are fundamentally separated and

the paper cup is prevented from being burned.

7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.

8. The company has improved therolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting,being capable of producing thick paper which is more than 300gsm, and is free of water seepage and water leakage.

Specifications:

More Information:

Make Paper Cups: The material is PE film coated/laminated paper.
PE: Polyethylene;
One(single) side PE coated paper: PE film laminated on one-side of the paper;
Two(double) side PE coated paper: PE film laminated on both-side of the paper

One(single) PE coated paper cup, Popular for hot drink cups.
Two(double) PE coated paper cup, Popular for cold drink cups.
If use one PE paper cup for cold drink, the cup will become soft.

Making two-side PE film coated paper cup,
Cup side welding by Ultrasonic,
Bottom heating use hot air,
Bottom knurling adopt cool-device (circle water),

Why use ULTRASONIC & HOT AIR & Cool-Device for Two/Double PE Paper Cups?
The reason is, when heater straight touch the PE film (out-surface of the paper), the PE film will be burnt, and become yellow or black, that make the cups ugly.

Ultrasonic Paper Cup Machine,
available to make BOTH one-side and two-side PE coated paper cups,
