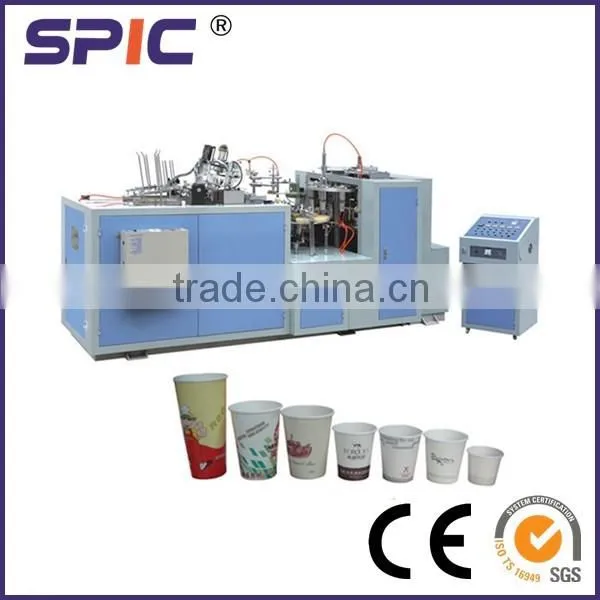

Automatic jbz a12 paper cup machine
Features:
1. jbz a12 paper cup machine adopt ultrasonic wave technology bonding, which ensures high
bonding strength and handsome appearance.
2. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
4. The heat seal barrel forming part is provided with non-cup barrel detection, alarming and sopping
functions, which enhance the automation degree of the machine.
(optional according to the demand of the customer)
5. The bottom-punching part is changed into mechanical probe type detection which
ensures the detection precision and the pass rate of finished products.
6. The machine adopts high-position stopping device, so that the machine always stops at
the highest point, the mold and the heating furnace are fundamentally separated and
the paper cup is prevented from being burned.
7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
8. The company has improved therolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting,being capable of producing thick paper which is more than 300gsm, and is free of water seepage and water leakage.
Specifications:
Model |
A12 |
A16 |
A22 |
Specification of paper cup |
6oz,8oz,12oz |
12oz,14oz,16oz |
16oz, 22oz |
Paper material |
Single-sided, double-sided PE coated paper |
||
Outer diameter of cup rabbet |
50-95 |
50-95 |
50-95 |
Outer diameter of cup bottom |
35-70 |
35-70 |
35-70 |
Cup height |
50-120 |
100-150 |
100-175 |
Bottom depth |
≤10 |
≤10 |
≤12 |
Rated productivity |
40-50pcs/min |
35-45pcs/min |
30-40pcs/min |
Power supply |
380V 50Hz |
||
Total power |
6.5KW |
8KW |
|
Weight |
1600Kg |
1700Kg |
1900Kg |
Packing size(L*W*H) |
2800×1350×1800mm |
3000×1450×1900mm |
3300×1450×2000mm |
Air Pressure Request |
0.2m3/min;0.6MPa (provided by customer) |
||
More Information:
Make Paper Cups: The material is PE film coated/laminated paper.
PE: Polyethylene;
One(single) side PE coated paper: PE film laminated on one-side of the paper;
Two(double) side PE coated paper: PE film laminated on both-side of the paper
One(single) PE coated paper cup, Popular for hot drink cups.
Two(double) PE coated paper cup, Popular for cold drink cups.
If use one PE paper cup for cold drink, the cup will become soft.
Making two-side PE film coated paper cup,
Cup side welding by Ultrasonic,
Bottom heating use hot air,
Bottom knurling adopt cool-device (circle water),
Why use ULTRASONIC & HOT AIR & Cool-Device for Two/Double PE Paper Cups?
The reason is, when heater straight touch the PE film (out-surface of the paper), the PE film will be burnt, and become yellow or black, that make the cups ugly.
Ultrasonic Paper Cup Machine,
available to make BOTH one-side and two-side PE coated paper cups,
