Home > Products > MMA welding machine > dc ac welder
dc ac welder
USD $46 - $100
/ Piece
20 Pieces(Min.Order)
- 25000 Piece / Pieces per Month
- Ningbo/Shanghai and so on
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC100P | |
| Arc Current | 10-100A | Pulse Frequency | 60HZ | |
| Pilot Arc Current | 30A | Rated Duty Cycle | 60@80A,35@100A | |
| Motor Type | DC Motor | Dimensions | 28X11X17CM | |
| Usage | metal welding | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available |
Product Description
dc ac welder(ARC 100)
Specification:
| Model No. | ARC100 | Input power voltage (V) | AC230V±10% |
| Rated input current(A) | 16A | Input AC(HZ) | 50/60 |
| NO-load voltage(V) | 75 | Output voltage(V) | 25V |
| Output current range(A) | 10-120 | Protection class | IP21 |
| Efficiency(%) | 85 | Duty cycle(%) | 60 |
| No-load power(W) | 20 | Power factor cos | 0.93 |
| Net Weight(KG) | 3.2kg | Dimensions | 28x11x17cm |
| Standard | CE | Trademark: | OEM/SONSCN |

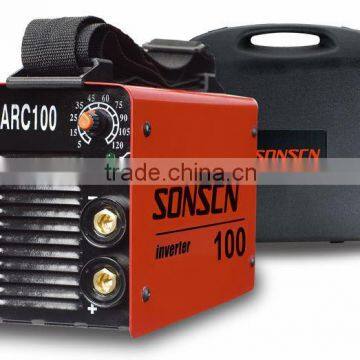

Product pictures
Characteristics:
1. Compact in volume, light in weight and power saved
2. Easy to arc initiation, resistance to interference, good force adjustment
3. Stable welding current, low welding spatter
4. Good welding result, deep welding pool, high intension
5. Protection for over voltage, over current
6. Automatic voltage pulsation compensation capability.
7. Applicable for various acid and basic welding electrodes.
