This inverter welding equipment/arc welder/ arc welding machine/ inverter welding machine/ mma welding machine/ zx7 welder has the following characteristics:
Effective, power saving, compact, stable arc, good welding pool, high no-load voltage, good capacity of force compensation.
Inverter technology - Providing powerful DC
Superb portability - Weighing only 3.2kgs~4.8kgs

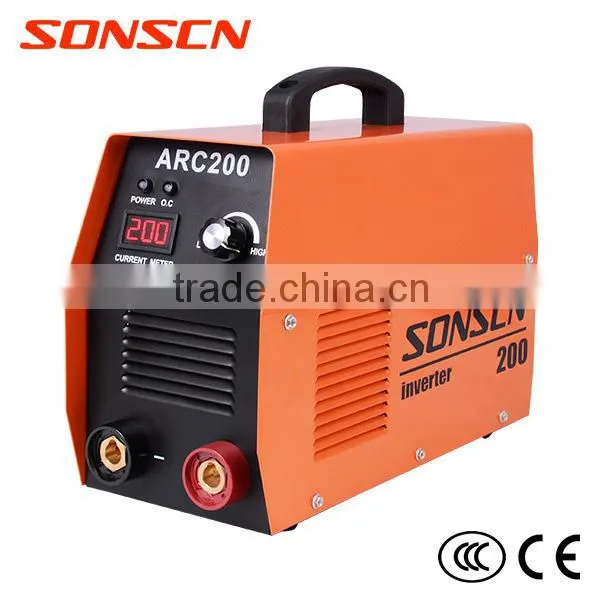

An industrial grade ultra powerful lightweight 200amp Arc/Stick/MMA welding machine with CE approval. Protection for over voltage, over current. This welder adopts advanced circuitry ensuring consistent performance and reliability day in and day out.

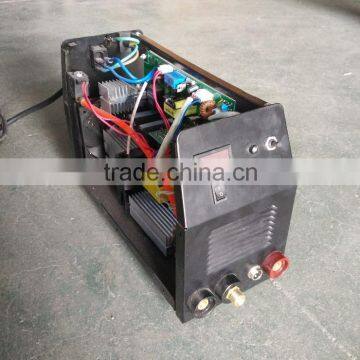

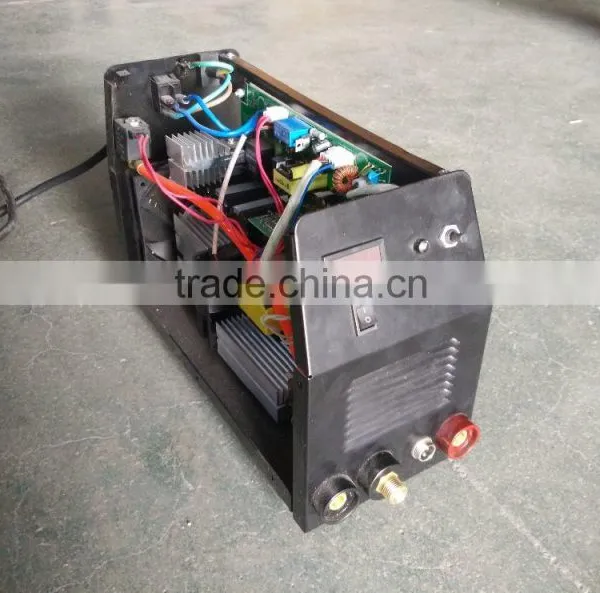

This arc welding machine/MMA welding machine/welder uses advanced inverter technology (IGBT Inverters) which allows for an ultra powerful welder that is lightweight. Handle on top allows you to carry the unit for those off site jobs requiring portability. The beauty of this welder is that it does not sacrifice power output for its reduced weight. The circuitry of the inverter welding machine reduces energy costs up to 50% compared to traditional welders while being highly effective. The welders robustness makes it usable for your average weekend hobbier all the way up to your Industrial welder. The Inverter technology produces a very stable andreliable welding current.
Load sensing circuit - Automatically reduces input current when machine is not under load
Hot start - For trouble free arc striking capability
Anti stick circuit
Turbo fan cooled
Thermal overload - Maximum safety guaranteed
International latest technology adopted, novel design, perfect workmanship, and excellengperformances;
Compact, light and easy in carrying.
Provided with automatic temperature protector and air-cooling unit, and highly effective and safe
Technical data:
Model |
ARC200 |
ARC180 |
ARC160 |
ARC120 |
ARC100 |
Input voltage |
50/60hz(1ph) |
50/60hz(1ph) |
50/60hz(1ph) |
50/60hz(1ph) |
50/60hz(1ph) |
230V±10% |
230V±10% |
230V±10% |
230V±10% |
230V±10% |
|
Rated input current |
Max.29A |
Max.24A |
Max.22A |
Max.18A |
Max.16A |
No-load voltage |
80V |
80V |
80V |
75V |
75V |
Eiffciency |
85% |
85% |
85% |
85% |
85% |
Input power |
Max.6.4kw |
Max.5.3kw |
Max.4.8kw |
Max.3.9kw |
Max.3.5kw |
Current range |
10-200A |
10-180A |
10-160A |
10-120A |
10-100A |
Duty cyclereal 100% |
35%@200A 60%@160A |
35%@180A 60%@ 140A |
35%@ 160A 60%@ 120A
|
35%@120A 60%@100A
|
35%@100A 60%@80A
|
Welding rod |
1.5-4mm |
1.5-4mm |
1.5-3.2mm |
1.5-2.5mm |
1.5-2.5mm |
Welding board thickness |
1.5-11mm |
1.5-10mm |
1.5-6mm |
1.5-3mm |
1.5-3mm |
Protection class |
IP21 |
||||
Weight |
4.9kg |
4.7kg |
4.6kg |
3.4kg |
3.2kg |
Dimensions |
31x13x21cm |
31x13x20cm |
29x13x20cm |
29x13x19cm |
28x11x17cm |
Standard |
CE |
||||
Unit Includes |
|
Inverter Welder box carton |
or
Unit Includes |
|

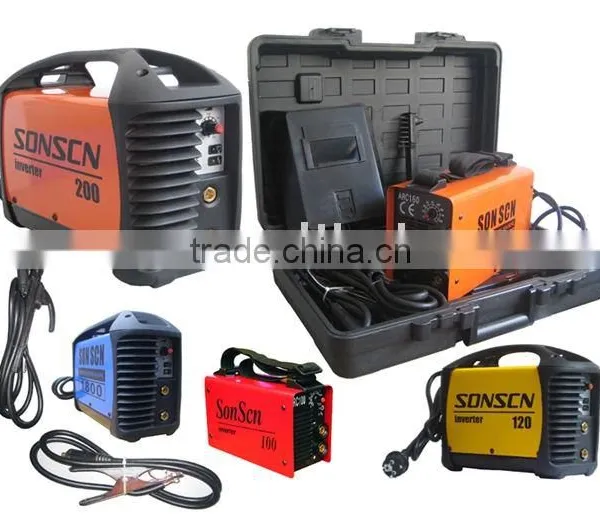

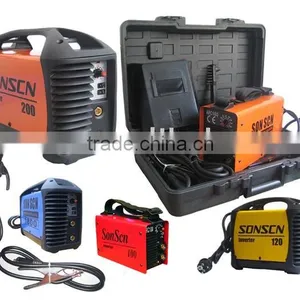

Inverter Welder plastic suitcase (carrying case) carton |
