BCZY-2 turbocharger test bench laboratory testing equipment from BEACON
Function Introduction
This test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values.
It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger,
and print the test result and wave form curve with a printer.
It achieves comprehensive dynamic test and data record of turbocharger.
Technical Parameter
| Power | AC380V 50HZ (made to Measure) |
| Power of airflow generator | 5.5KW (made to order) |
| Frequency converter power | 7.5KW |
| RPM of airflow generator | 0--20000r/min |
| Maximum air pressure of airflow generator | 5KPa |
| Maximum flow rate of airflow generator | 1500m³/h |
| Power of oil pump motor | 750W |
| Rated pressure of oil pump | 0.3MPa |
| Maximum displacement of oil pump | 15L/min |

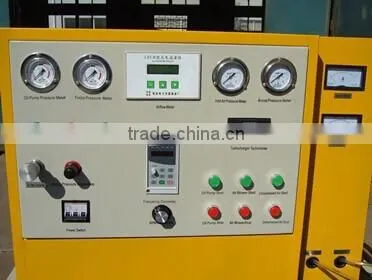

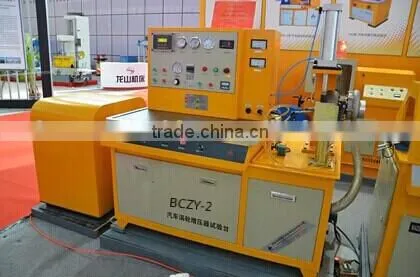

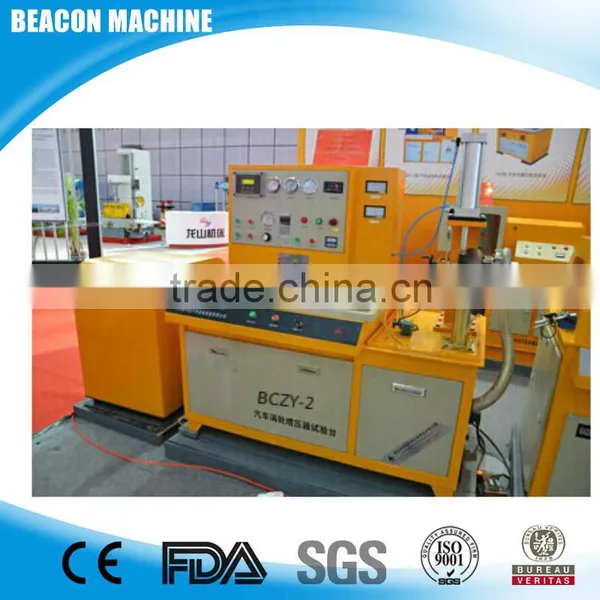

Real photos
We also have other model test bench,please point the model and check:
| Diesel Injection Pump test bench | Common Rail System Test Bench | Common Rail Tester and Electronic Pump Tester |
| 12PSB | PQ1000 | CR1000 |
| MINI12PSB | BCS300 | CR2000 |
| BC3000 | BC-CR708 | CR2000A or CRS3 |
| BCS619 | BC-CR819 | EUI/EUP tester and CAM BOX |
| BCS815 | CRS708 | VP44 tester |
| BC2001 | CRS709 |
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
