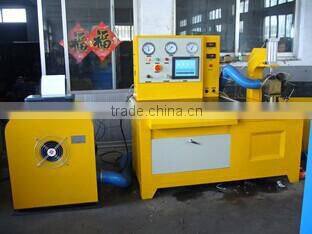

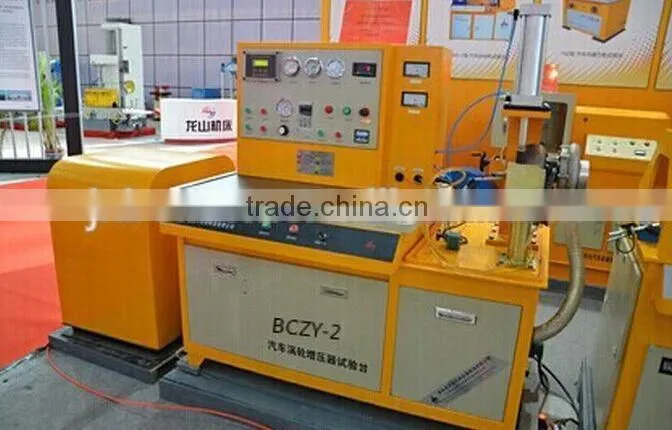

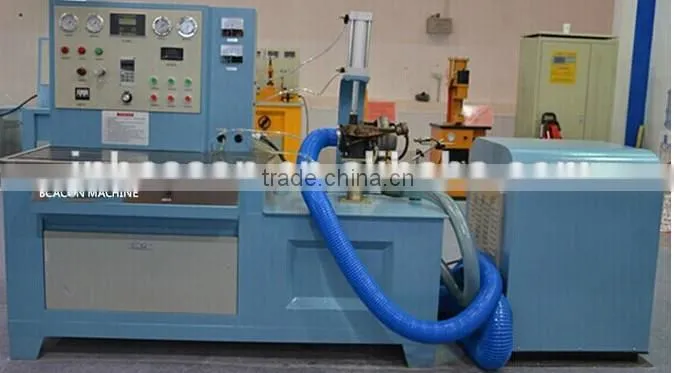

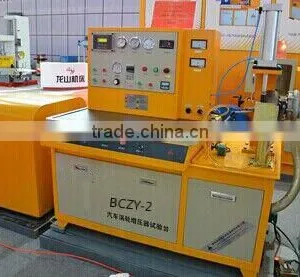

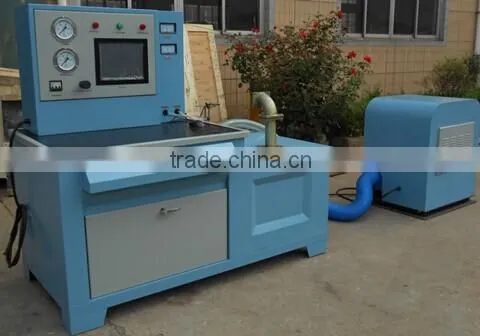

universal turbocharger test bench for testing inlet & outlet air pressure
1.Function Introduction
This test bench is applicable for testing performance of turbochargesr on various models vehicles and can carry out dynamic test of boost pressure,
air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

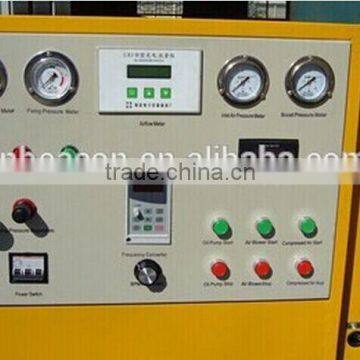

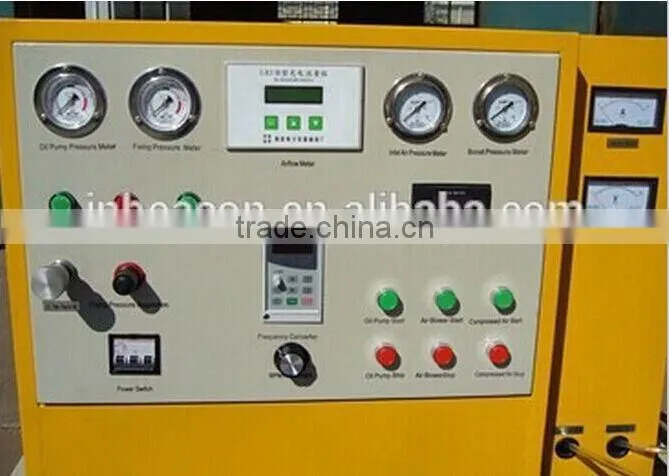

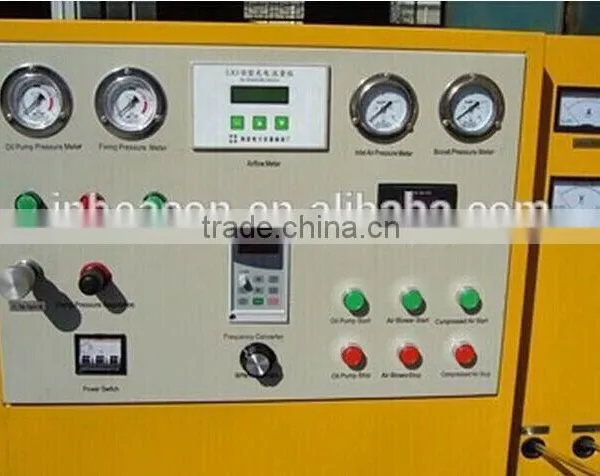

It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger,
and print the test result and wave form curve with a printer.
It achieves comprehensive dynamic test and data record of turbocharger.
2. Technical Parameter
| Power | AC AC380V 50HZ (made to Measure) |
| Power of airflow generator | 5.5KW (made to order) |
| Frequency converter power | 7.5KW |
| RPM of airflow generator | 0--20000r/min |
| Maximum air pressure of airflow generator | 5KPa |
| Maximum flow rate of airflow generator | 1500m³/h |
| Power of oil pump motor | 750W |
| Rated pressure of oil pump | 0.3MPa |
| Maximum displacement of oil pump | 15L/min |
----Photos
Company instruction
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
One year free warranty and lifetime maintenance
