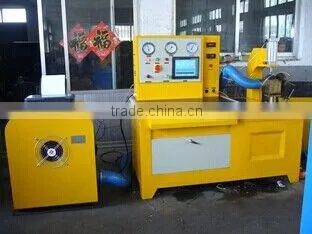

BCZY-2c test bench for turbocharger with 2016 new design
- 100 Set / Sets per Month
- Qingdao or Any port of china
- T/T Credit Card
You May Like
-
BCZY-2 turbocharger test bench from Beacon machine
-
BCZY-2 universal turbocharger test bench for testing inlet & outlet air pressure
-
High quality and low price BCZY-2 turbocharger test bench for various models vehicles
-
High quality and low price BCZY-2 turbocharger air flow test bench for various models vehicles
-
2016 The Hot sale and prime quality of BCZY-2 Model automobile Turbocharger Test Bench
-
2016 The lowest price of BCZY-2C Model Automobile Turbocharger Test Bench
Product Details
| Type | Other, turbocharger test bench | Voltage | 220V/380V | |
| Power | 7.5KW, AC380V 50HZ (made to Measure) | Certification | ISO CE | |
| Applicable Models | all kind of cars | Place of Origin | Shandong, China | |
| Brand Name | Beacon | Model Number | bczy-2c | |
| Warranty | 1 Years |
Product Description
BCZY-2c test bench for turbocharger with 2016 new design
Function Introduction
This test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values.

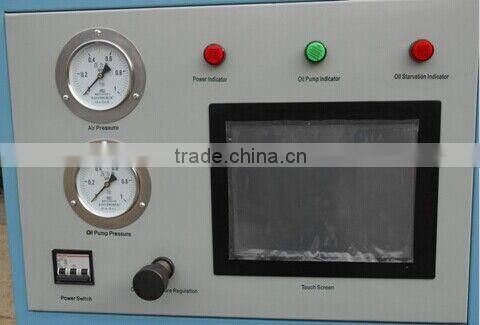

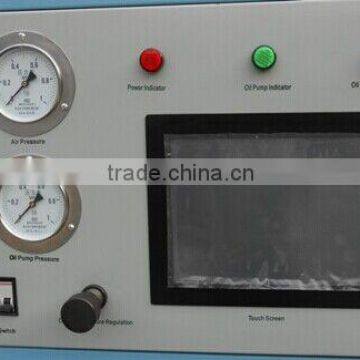

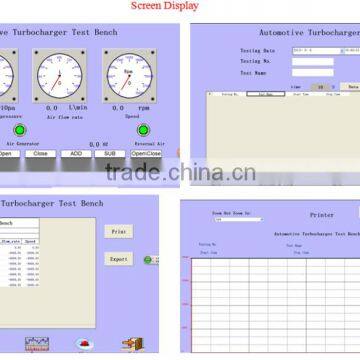

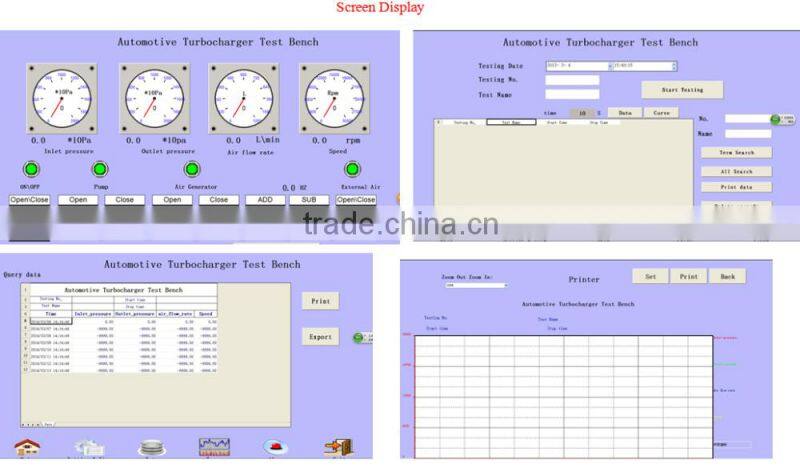

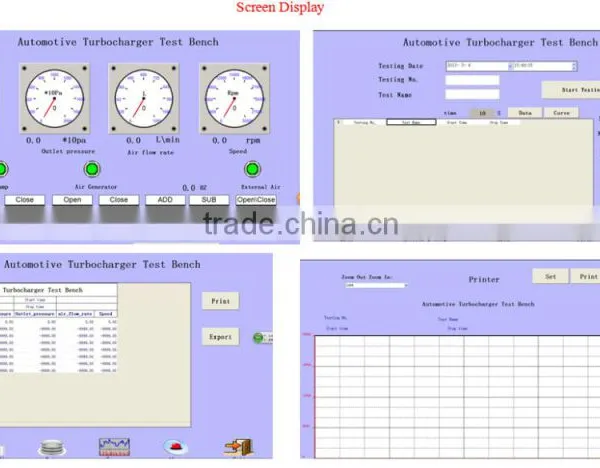

It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger,

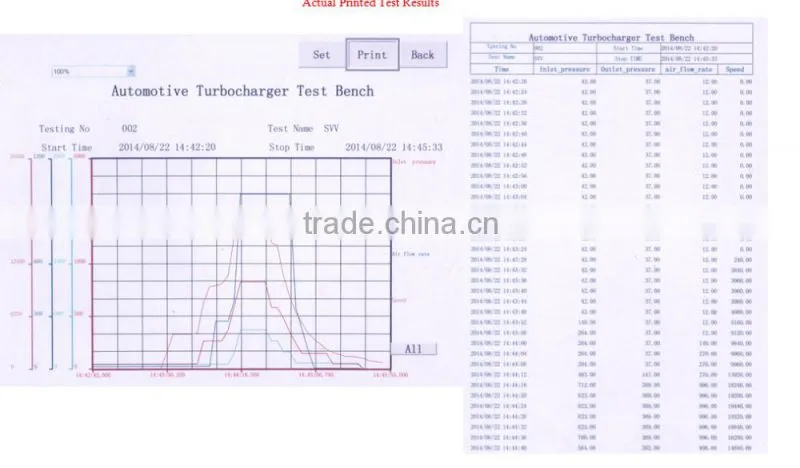

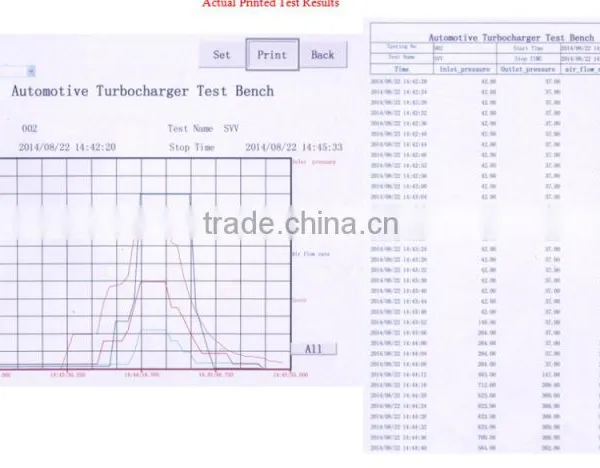

and print the test result and wave form curve with a printer.
It achieves comprehensive dynamic test and data record of turbocharger.
Technical Parameter
| Power | AC380V 50HZ (made to Measure) |
| Power of airflow generator | 5.5KW (made to order) |
| Frequency converter power | 7.5KW |
| RPM of airflow generator | 0--20000r/min |
| Maximum air pressure of airflow generator | 5KPa |
| Maximum flow rate of airflow generator | 1500m³/h |
| Power of oil pump motor | 750W |
| Rated pressure of oil pump | 0.3MPa |
| Maximum displacement of oil pump | 15L/min |

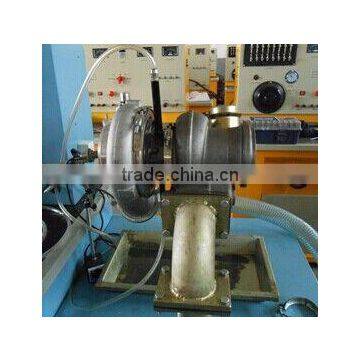

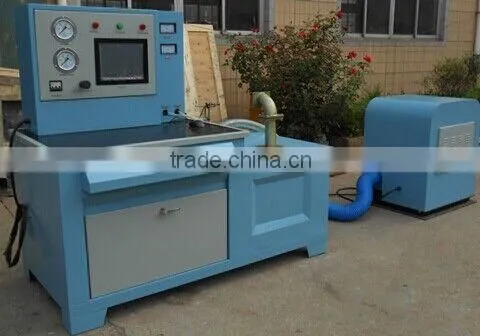

Check the product photo below:

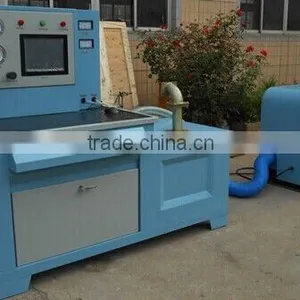

(we have different collor on your request)
Other function machine you need just click model name in this list! :
| common rail test bench | diesel fuel test bench | common rail tester |
| CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
| BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
| CRS200 | BC2001 | VP44 pump tester |
| CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
| CRI2000 | BCS619 | EUI EUP&Cambox |
| BCS200 | BCS815 | V3V4V5 pump tester |
| BCS300 | BC-CR819 | |
| PQ1000(only 1300USD per set) |
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
