Detailed Product Description of 5L mineral water bottle Semi auto blow moulding machine:
PET semi automatic bottle blowing machinelding machine is a two-steps PET blow molding machine, which adopts PLC control, direct pressure piston type pneumatic-hydraulic locking mold, high pressure blow. It can be used together with digital infrared heaters, suitable to blow different kinds of bottle.
Features of 5L mineral water bottle Semi auto blow moulding machine:
1.Direct pressure piston type pneumatic-hydraulic locking mold system makes a steady mold locking.
2.Imported high pressure blowing valve together with Mitsubishi programmable controller makes its operation flexible and precise.
3.The journey between open and close mold is long enough to ensure a strong interchangeability with simple assembly and disassembly
4.The use of the centralized silencer used in high and low pressure exhaust helps to lower the noise effectively.
5.Major electrical and pneumatic components come from the reliable and famous brands in Europe, America and Japan to ensure that the machine is of high quality, good stability and long lifespan.
6.It can be used together with infrared heating device and is suitable to blow 0.3-2L bottle for mineral water and tea beverage, 0.1-0.7L bottle for cosmetics, and 0.3-5L bottle for oil bottle and jar.
Machine Technical Parameters of 5L mineral water bottle Semi auto blow moulding machine:
Item |
HGS250A |
Pillar space |
370X395 |
Mold size |
170-260 |
Open mould stroke |
250MM |
Stretching stroke |
350MM |
Sealing stroke |
50MM |
Voltage |
220V/50HZ |
Operating pressure |
0.8MPA |
Blowing pressure |
3.0MPA |
Efficiency |
500-980 |
Capacity |
5000ML |
Maching size |
1400X560X1550 |
Weight |
490KG |
Machine Picture:
heating machine as follow:

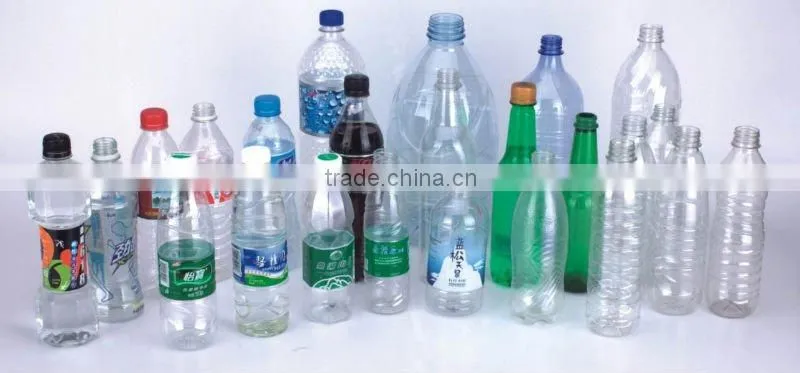

Product Picture:
