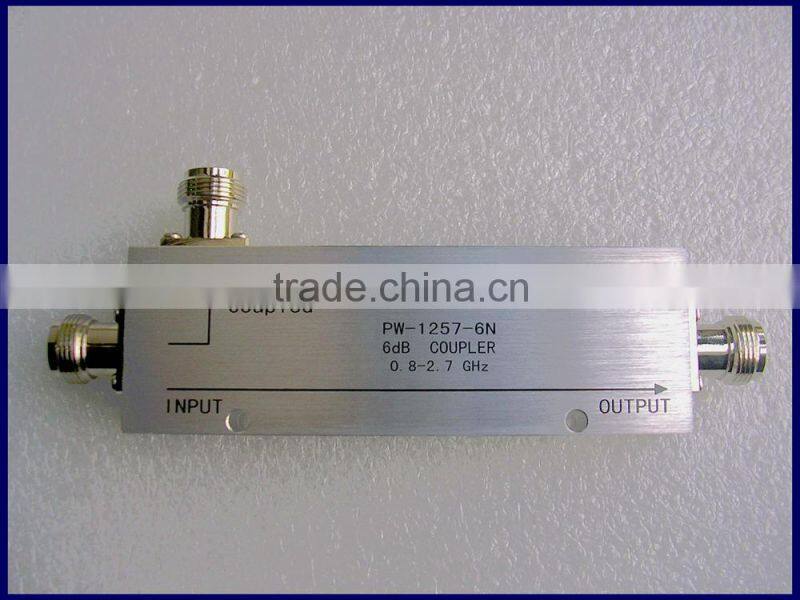

Hot Selling 6dB 800-2700MHz Directional Coupler N Female Connector

Shenzhen Xinlun Communication Technology Co., Ltd.
Hot Selling 6dB 800-2700MHz Directional Coupler N Female Connector thumbnail-1
Hot Selling 6dB 800-2700MHz Directional Coupler N Female Connector thumbnail-2
Hot Selling 6dB 800-2700MHz Directional Coupler N Female Connector photo-1

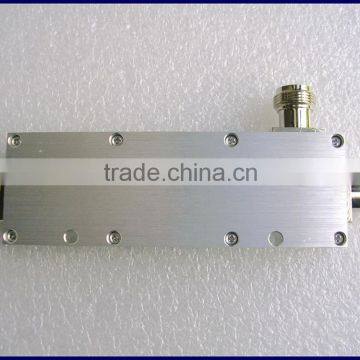

Hot Selling 6dB 800-2700MHz Directional Coupler N Female Connector photo-2
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XINLUN
Model Number:
XL-DC06-0827
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name XINLUN
Model Number XL-DC06-0827
Product Description

Product Application

Product Application

800-2700MHZ N-Female connector 6DB Directional Coupler widely used in following areas:
1.Mobile Communication Network Optimization and Indoor distribution system.
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
3. Radar, Electronic Navagation and Electronic Confrontation.
4. Aerospace Equipment systems.
SPECIFICATIONS FOR DIRECTIONAL COUPLER (5DB/6BD/7BD)
Product N umber
XL-DC05-0827
XL-DC06-0827
XL-DC07-0827
Frequency Range
800~2700MHz
800~2700MHz
800~2700MHz
VSWR
＜1.3
＜1.3
＜1.3
Coupling
5±0.5dB
6±0.5dB
7±0.5dB
Insertion Loss
2.0dB
1.6dB
1.3dB
Isolation
25dB
25dB
25dB
Im.3rd Order
-140dBc(2*43dBm)
-140dBc(2*43dBm)
-140dBc(2*43dBm)
Maximum Input Power
100W
100W
100W
Normal Impedance
50
50
50
Connector
N-F
N-F
N-F
Operating Temperature
-50℃~+70℃
-50℃~+70℃
-50℃~+70℃
Operating Humidity
5%~95%
5%~95%
5%~95%
Dimensions(L×W×H)
156mm×58mm×17mm
156mm×58mm×17mm
156mm×58mm×17mm
Weight
285g
285g
285g

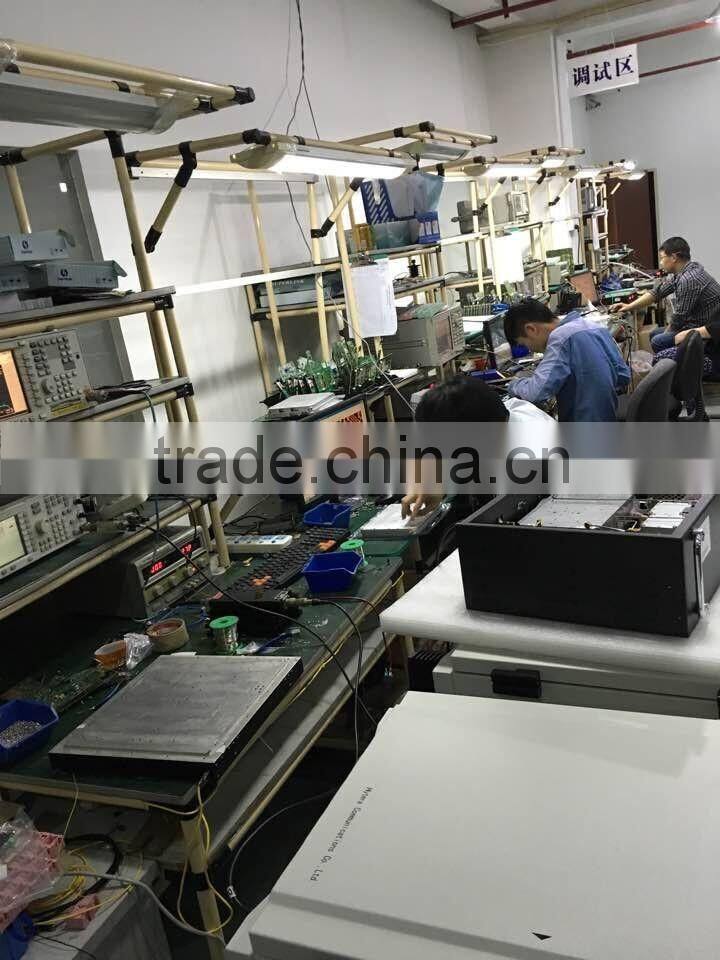

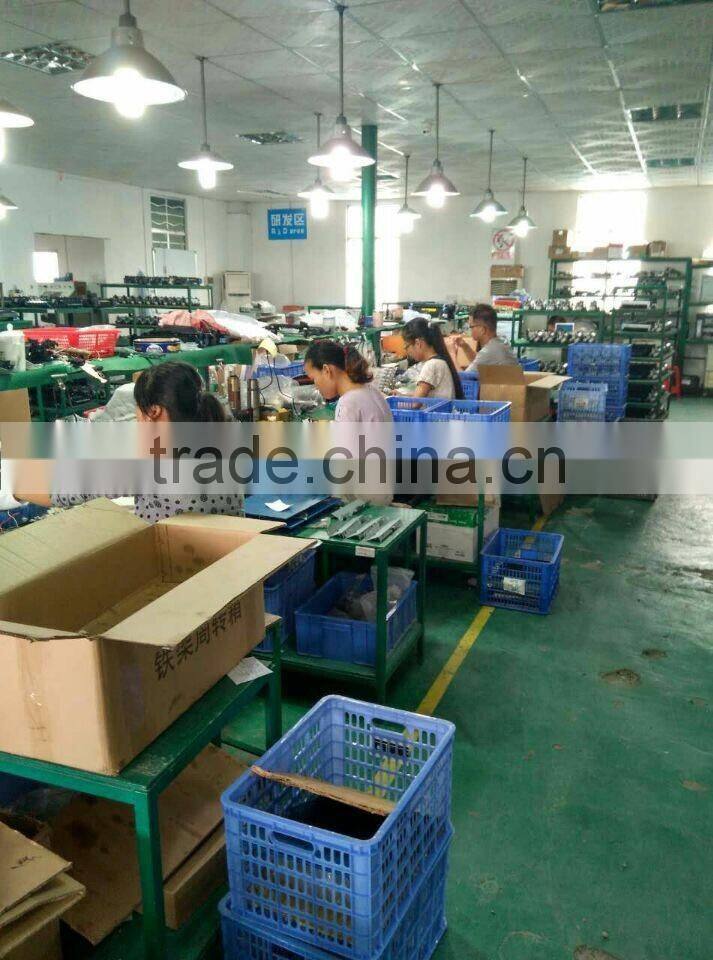

Our Factory

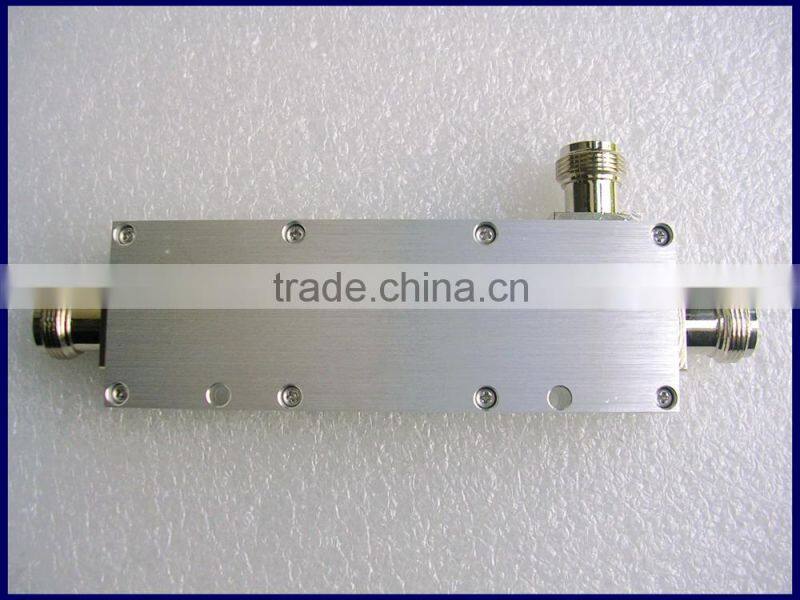

Detailed Images

Main Features

We also provide another surface treatment technology of paint, the parameters of products are same.

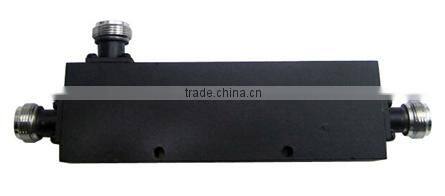

Color: Black.




Matte silver surface

Our Service

Pre-Sales Service

1.Your inquiry related to our products or prices will be           replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over10000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;

After-Sales Service

* Training how to instal our products, training how to use the products

* Engineers available to service installation overseas.

Packing & Delivery

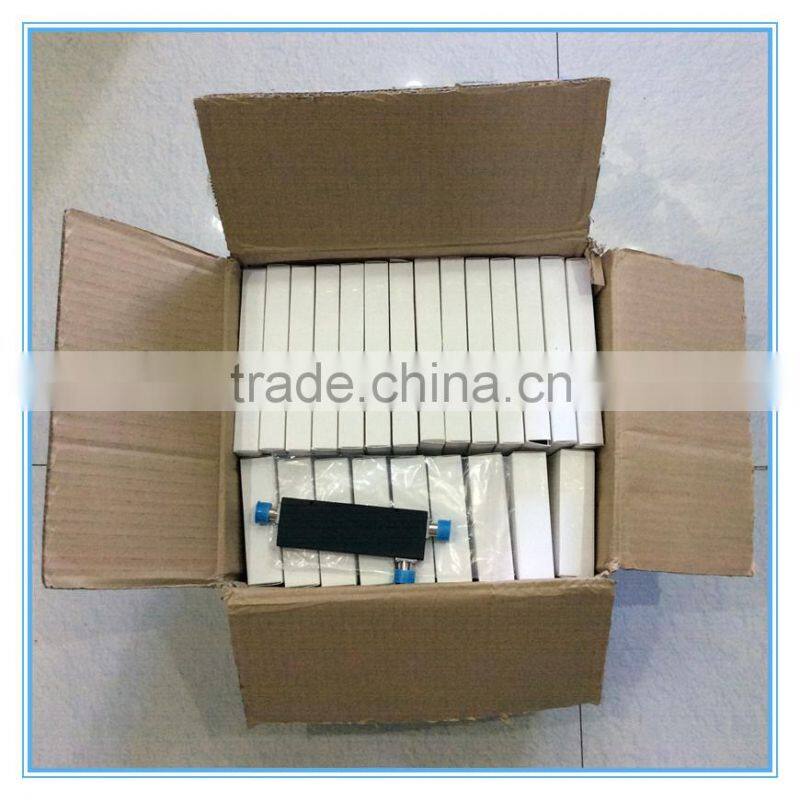

Packaging
Size
55(L) * 46 (W) * 32 (D)
Weight
15.6KGS



Packaging Details
The normal package is carton

(Size: L*W*H).
Packaging
Size
55(L) * 46 (W) * 32 (D)
Weight
15.6KGS



Packaging Details
The normal package is carton

(Size: L*W*H).
