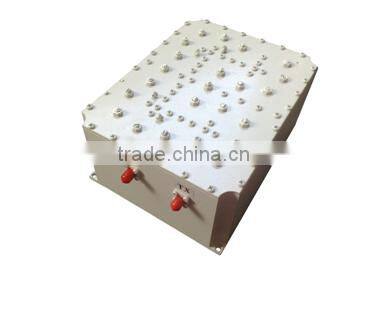

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 380MHz Duplexer
US$ 200 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
xinlun
Model Number:
XL-DUP-380A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
420MHz DuplexerUS$ 1 - 200MOQ: 1 Piece -
4 in 4 Out 700Mhz-2700Mhz Hybrid Coupler/Combiner for N-Female ConnectorUS$ 1 - 50MOQ: 1 Box
-
2070 ~2110 MHz RF Bandpass FilterUS$ 1 - 150MOQ: 1 Set
-
800-2700MHz 4 Way Power Splitter/divider N Female ConnectorUS$ 1 - 20MOQ: 1 Piece
-
1800MHz Anti Interference FilterUS$ 1 - 60MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
xinlun
Model Number
XL-DUP-380A
380MHz Duplexer Specifications
1 Specifications
NO. | Parameters | ||
RX | TX | ||
1 | Frequency Range | 385MHz -390MHz | 395MHz -400MHz |
2 | Insertion Loss | ≤2.0dB | ≤2.0dB |
3 | Pass Band Ripple | ≤1.0dB | ≤1.0dB |
4 | Attenuation Out of Band | ≥85dB@ DC-370MHz ≥90dB@395-400MHz ≥85dB@400-3000MHz | ≥85dB@ DC-385MHz ≥90dB@ 385-390MHz ≥85dB@415-3000MHz |
5 | Isolation | ≥90dB | |
6 | VSWR | ≤1.35 | |
7 | Average Power | ≥60W | |
8 | RF Connection Mode | ANT:SMA/F,50Ω; RX: SMA/F,50Ω; TX: SMA/F,50Ω; | |
9 | Operation Temperature | -25℃ ~ +70℃ | |
10 | Storage Temperature | -40℃ ~ +85℃ | |
11 | Humidity | ≤95% | |
12 | Dimension | 177mm*134mm*85mm(L*W*H) | |
13 | MTBF | ≥100000h | |
2 Machine Drawing
Fig3-1 Machine Drawing for Duplexer
3 ConnectorInterface Definition
Items | Description | Remark | |
1 | ANT | Antenna Interface | SMA/F |
2 | RX | RX Interface | SMA/F |
3 | TX | TX Interface | SMA/F |
