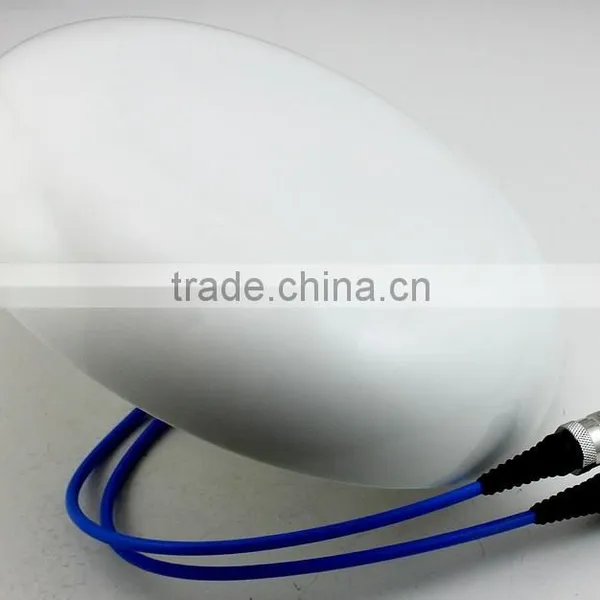

698-2700Mhz MIMO Ceiling Antenna
Electrical Specifications | |||||||
Item No. |
XL-MA-698-2700 |
||||||
Frequency Range |
MHz |
698-960 |
1710-2700 |
||||
Gain |
dBi |
3.5 |
5.0 |
||||
Polarization |
Linear×2 |
||||||
Beam width |
Horizontal |
deg |
360 |
||||
Vertical |
90 |
30-65 |
|||||
VSWR |
≤2.0 |
||||||
|
PIM, 3rd Order, 2 x 20 W, (900MHz/1800MHz) |
dBc |
≤-150 |
|||||
Maximum Power |
watts |
100 |
|||||
Impedance |
ohm |
50 |
|||||
Mechanical Specifications | |||||||
Dimensions, HxDia |
mm (in) |
130x204 (5.11x8.03) |
|||||
Weight, without Mounting Kit |
kg (lb) |
0.7(1.5) |
|||||
Radome Material and Color |
ABS, White, RAL7035 |
||||||

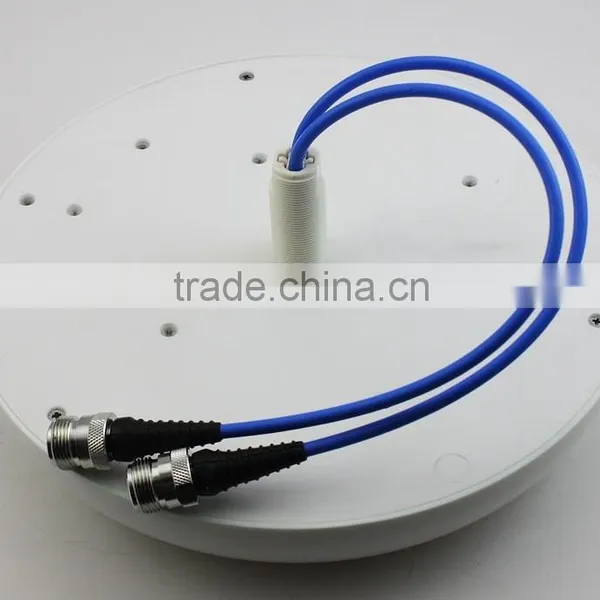

Mounting Kit |
Ceiling, via hole (standard) |
||||||
Connector Type |
N-Female×2 |
||||||
Operational Temperature |
oC |
-55 to +60 |
|||||
Shipping Dimensions, HxWxD |
mm (in) |
335x175x90 (13.2x6.9x3.5) |
|||||
Shipping Weight |
kg (lb) |
0.7 (1.5) |
|||||
|
|
<
