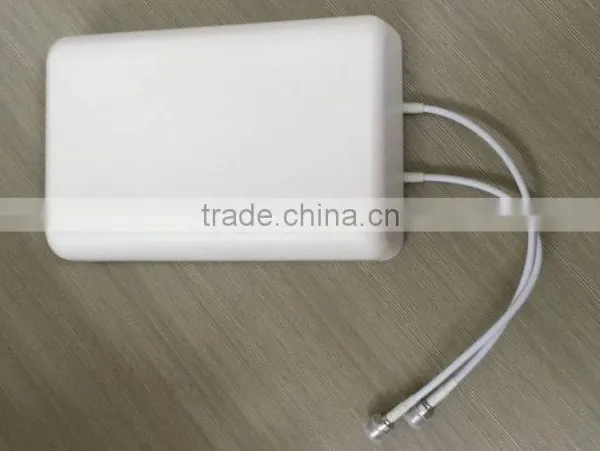

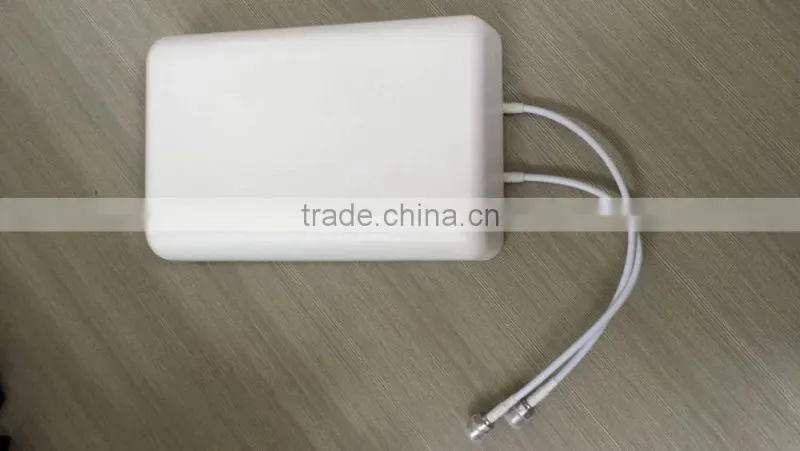

698~2700MHz Indoor MIMO Panel Antenna
Electrical Specifications | |||||||
Item No. | XL-PA-698-2700 | ||||||
Frequency Range | MHz | 698-806 | 806-960 | 1710-2700 | |||
Gain | dBi | 6.5 | 7 | 7.5 | |||
Polarization | Vertical | ±45° | |||||
Beam width | Horizontal | deg | 82 | 80 | 70 | ||
Vertical | 50 | 60 | 60 | ||||
Front-To-Back Ratio | dB | > 12 | > 15 | > 20 | |||
VSWR | ≤1.8 | ≤1.5 | |||||
Isolation between pols | n/a | >23 | |||||
PIM, 3rd Order, 2 x 20 W, | dBc | ≤-150 | |||||
Input Power per Port, maximum | W | 100 | |||||
Impedance | Ω | 50 | |||||
Mechanical Specifications | |||||||
Dimensions, HxWxD | mm (in) | 260x170x56(10.23x6.7x2.16) | |||||
Weight, without Mounting Kit | kg (lb) | 0.7(1.5) | |||||
Radome Material and Color | ABS, White, RAL7035 | ||||||
Mounting Kit | On-wall | ||||||
Connector Type and Location | N-Female×2 | ||||||
Operational Temperature | oC | -55 to +60 | |||||
Operational Humidity | % | < 95 | |||||
Shipping Dimensions, HxWxD | mm (in) | 335x175x90 (13.2x6.9x3.5) | |||||
Shipping Weight | kg (lb) | 0.7 (1.5) | |||||
Radiation Patterns |
Horizontal pattern |
| ||
Vertical pattern | |||
900MHz | 1710MHz | 2500MHz |
Features and Product Description |
< Wide band Directional Antenna , coverage 698MHz - 2700MHz . Typically used in indoor distribution of LTE and MIMO services. Low return loss, High gain, Stable performance. Compact, light-weight and easy to install. PIM<-150dBc @ 2x20 W. |
