Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Beacon
Model Number:
CR-BC816C
Contact Supplier Request Quote Chat Now
Taian Beacon Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Beacon
Model Number CR-BC816C
Power Electronic
Usage Auto Testing Machine



Product Description
Cheapest price and prime quality CR-BC816C common rail diesel injector test bench used
High quality CR-BC816C common rail diesel injector test bench used

we can produce competitive price and high quality of CR-BC816C  Common rail injector test bench comtrolled by computer .



  Technical data :



1. Rated output power 7.5KW
2. Test rang of rail pressure  0-1800bar
3.Oil pump rotation speed 0-3500rpm
4.Test precision of rail pressure ±2Mpa
5.Test temperature of test oil 40±2°C
6. Filter precision of test oil  less than 5μ
7. Capacity of tank 28L
8. Dimension 1200X900X1650MM
9. Aggregate weight 350KG
10. Electricity

380V, 50Hz, 3 phase

220V,60Hz, 3 phase





Function :

 1.Application: Bosch,Delphi,Denso,Siemens solenoid valve common rail injector.

2.High pressure cleaning to remove the impurities.

3.Measure the injected & return fuel quantity under full-loaded, idling, pre-injection and emission status.

4.Sealing performance test :check whether nozzle, nozzle cap and solenoid valve leaks oil

5.Check whether the injector orifice is obstructed through atomization test.

6.User can add and edit the data by themselves.

7.Save and print the testing results & customer information.



-- Characteristics

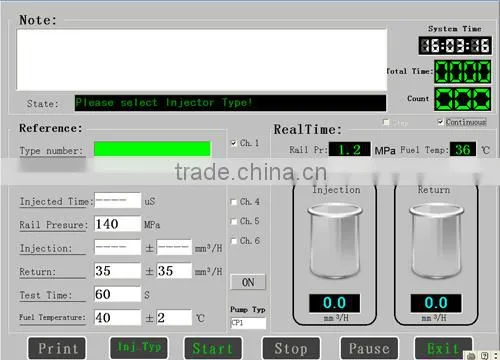

1.Computer control, 19” LCD operation.

2.Germany  flow sensor.

3.Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.

4.Rail pressure is controlled accurately by DRV.

5.Original Bosch CP1 pump and common rail system are equipped.

6.Industrial temperature controlling kit to keep fuel temperature constant at 40±2°C

7.Frequency converter is used to change the rotation speed

8.Stainless steel fuel tank with industrial air-conditioner inside .

9.Frequency converter is used to change the rotation speed.

10.High test precision, simple operation, low noise, and saving energy.

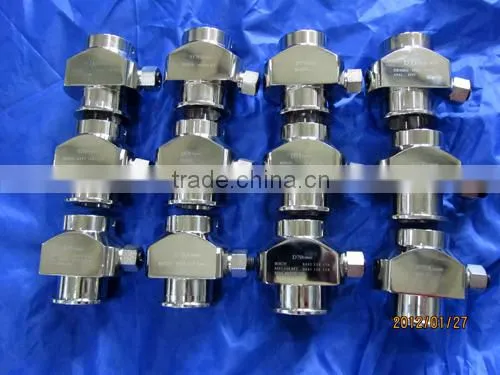

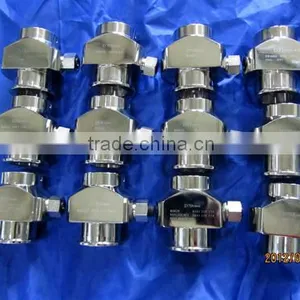

>> details photos

High quality CR-BC816C common rail diesel injector test bench usedHigh quality CR-BC816C common rail diesel injector test bench used

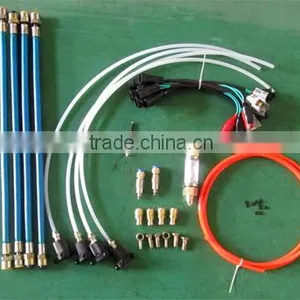

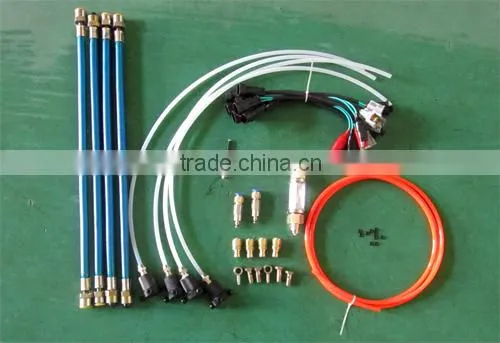

Accessories

High quality CR-BC816C common rail diesel injector test bench usedHigh quality CR-BC816C common rail diesel injector test bench used



>>>we also have other model number test bench for  injector and pump ,pls point the model name and then check details



diesel fuel injection pump test bench common rail  injection pump test bench  tester   and heui
12PSB

CRS708c(can add EUI/EUP&Cambox)

CRS709c(can add EUI/EUP&Cambox

CR1000
(200USD with piezo function)
BC3000  BC-CR708(most competitive price) CRS3
(can add piezo testing function )
BC2001 CRS200 VP44 pump tester
BC2001PLC CRS300(can add VP37 VP44 EUIEUP) VP37 pump tester
BCS619 eps200 EUI EUP&Cambox
BCS815 BCS200 V3V4V5 pump tester
  BCS300 s60h
BCS205 cr injector test bench PQ1000(only 1300USD per set)

Heui hydraulic test bench

 >>>Our products on show :



Packaging & Shipping







Our Services





High quality CR-BC816C common rail diesel injector test bench used





Company Information



 Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,

our products already sold to more than 100 countries . Our products including common rail injector test  bench ,common rail injector tester (CRDI),

diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,

common rail tools and spare part .

Welcome you to visit our factory and cooperate in the future!!!
