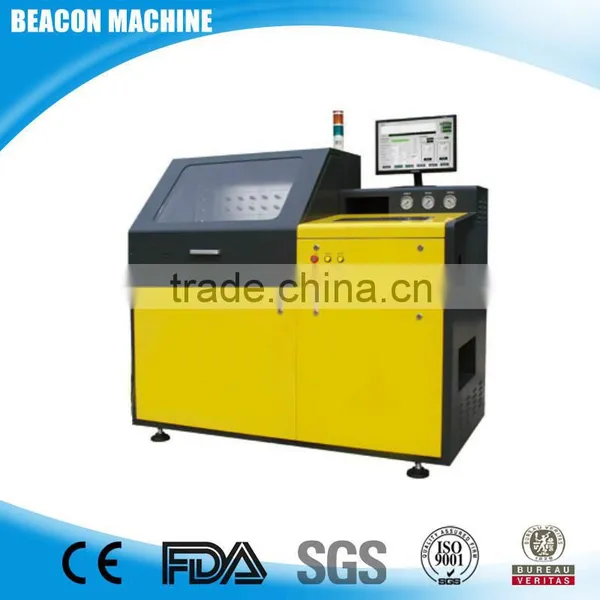

Help CenterThe Latest CR-BC819B Common Rail Diesel Injection Test Bench
Related Products
-
Bosch 708 Common Rail Injector Pump Test Bench by Direct ManufacturerUS$ 9,000 - 12,000MOQ: 1 Set -
Beacon CRS-708D Common Rail Used Fuel Injection Pump Test Bench as Bosch Eps815 Test BenchNegotiableMOQ: 1 Set
-
Bosch EPS200 Common Rail Diesel Injector Auto Electrical Test Bench Piezo Injector TesterNegotiableMOQ: 1 Set
-
Most Popular Products Heui Injector Test Bench for Sale From Beacon ManufacturerNegotiableMOQ: 1 Set
-
EPS100 Common Rail Diesel Injector Auto Electrical Test BenchUS$ 1,600 - 2,300MOQ: 1 Set
Technical data
| 1. Rated output power | 11KW, 15KW optional |
| 2. Oil pump rotation speed | 0-3500rpm |
| 3. Test rang of rail pressure | 0-1800bar |
| 4. Test precision of rail pressure | ±0.6Mpa |
| 5. Test precision of flow sensor | 0.5% |
| 6.Measuring rang of flow sensor | 0.008-2L/Min |
| 7. Temperature of test oil | 40±2°C |
| 8. Filter precision of test oil | less than 5μ |
| 9. Capacity of tank | 80L |
| 10. Dimension | 1760X830X1650MM |
| 11. Aggregate weight: | 800KG |
| 12. Electricity | 380V, 50Hz, 3 phase |
Function

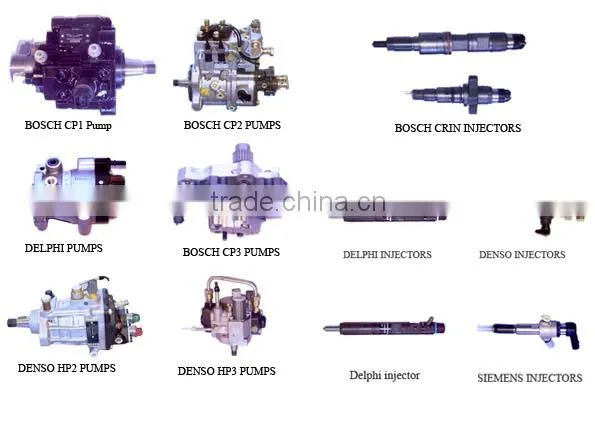

1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.

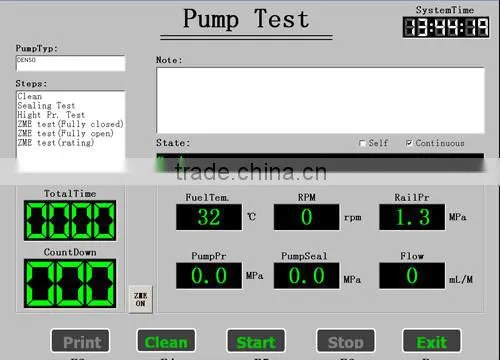

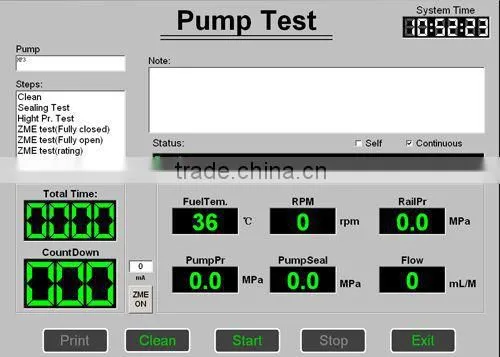

2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.

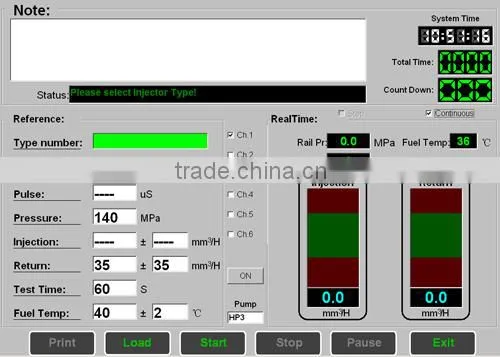

3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.
4. Cleaning the injectors while testing.
5. Testing 4-6 oil injectors in one setup.
6.Testing pump nozzle & electronic unit pump by additional programming system & adaptor.

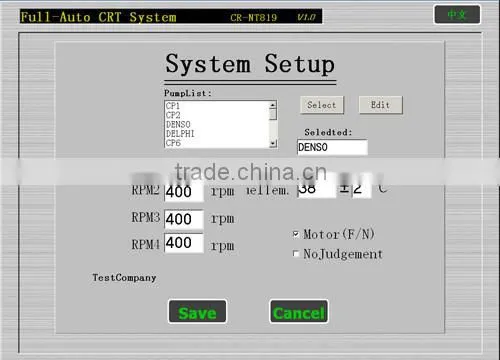

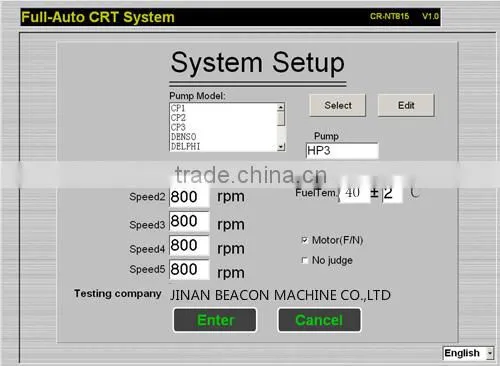

7.User can add and edit the data by themselves.
8.Save and print the testing results & customer information.
9. Support software upgrading.
Characteristics
1.Full-automatic operation procedure, save the time to set up the data.
2.High import configuration: takes up 50% of equipment cost.
3.Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4.Original Bosch CP1 common rail pump is equipped.
5.Germany flow sensor: flow range 0.008-2L/min, test precision 0.5%.
6.Remote control is convenient for software upgrading and after-sale service.
7.Frequency converter is used to change the rotation speed.

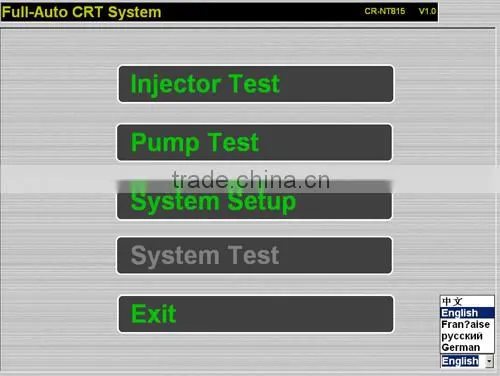

8.Support Multi-language.
>>> details photos

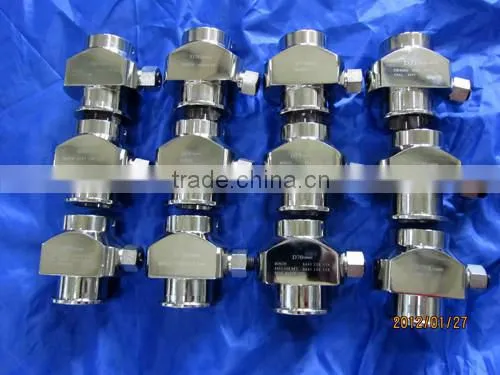

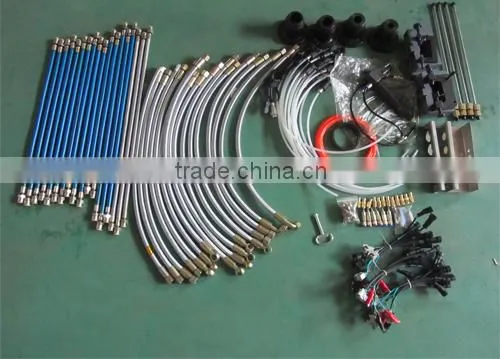

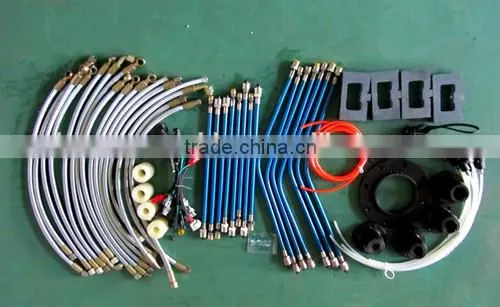

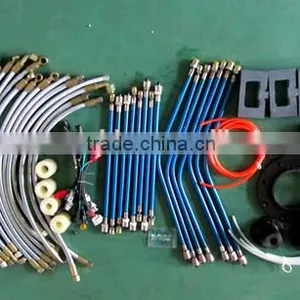

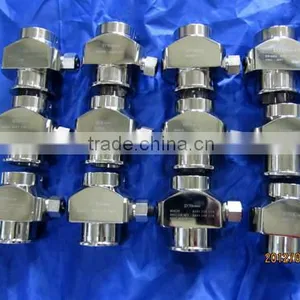

Accessories
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
--Welcome to contact with us !!!
