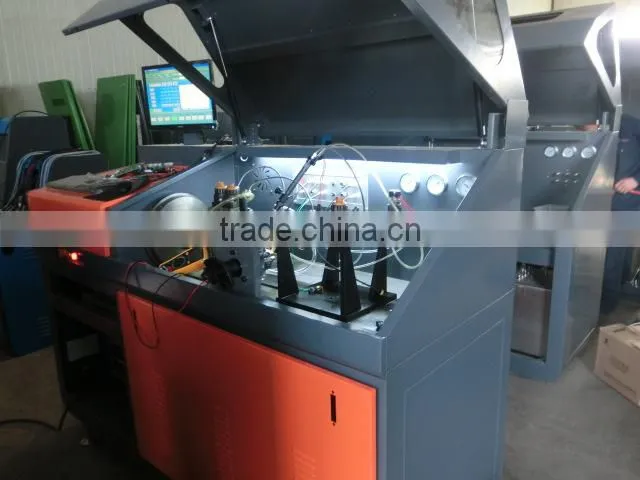

bosch 708 common rail injector pump test bench by direct manufacturer
>>>TECHNICAL PARAMETERS

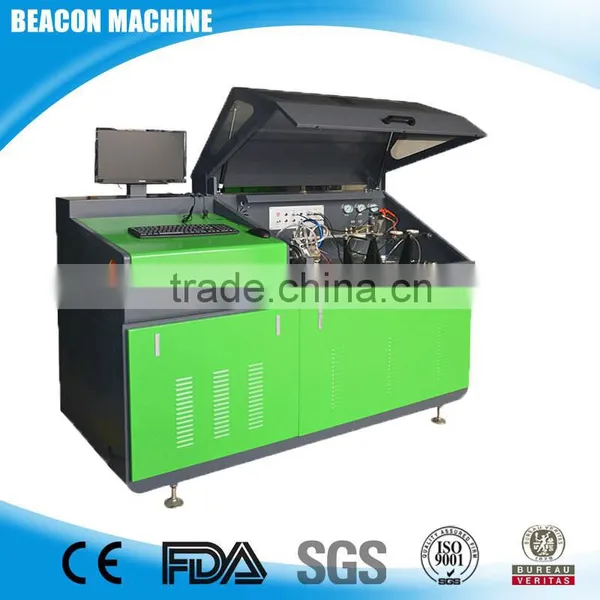

CRS-708C common rail injector test bench | |
Voltage |
380v or 400V/50Hz or 220V/60Hz 3phase or single phase |
Power |
7.5KW 11KW 15KW 18.5KW 22KW |
Driving coupling |
ISO4008/10115 mm length 116mm |
Test oil tank capacity |
32Lt |
Certification |
CE/ISO9001 |
Operating conditions |
DTC Speed range 0-3500rpm |
Feeding pump |
Power:0.75KW Flow:6.3 L/min |
Heater |
2KW |
Measurement sensor |
Flow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600bar |
Temperature range |
Measuring delta T 0-100 °C Measuring sensor Pt100 |
Test oil type |
DIN ISO 4113 |
Size |
190*98*172CM |
Weight |
1000KG |
Material |
steel |
>>>TECHNICAL DATA
1. Power: |
11kw, 15kw optional |
2. Oil pump rotation speed |
0-4000rpm |
3. Test rang of rail pressure |
0-1800bar |
4. Test precision of rail pressure: |
±0.5Mpa |
5. Test precision of flow sensor: |
0.5% |
6. Measuring rang of flow sensor |
0.008-2L/Min |
7. Temperature of test oil |
40±2℃ |
8. Filter precision of test oil: |
less than 5μ |
9. Capacity of tank |
80L |
10. Dimension |
190*98*172CM |
11. Aggregate weight: |
1000KG |
12. Electricity: |
380V, 50Hz, 3 phase 220V,60Hz, 3 phase |
>>>FUNCTION
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.
3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9.User can add and edit the data by themselves.
10.Save and print the testing results & customer information.
11.Support software upgrading.
>>>OPTION(On request):
1. |
VP37 pump test system |
2. |
Piezo injector test system |
3. |
EUI test system |
4. |
EUP test system |
5. |
Oil lubricate |
>>>CHARACTERISTICS
1. Full-automatic operation procedure, save the time to set up the data.
2. Germany flow sensor: flow range 0.008-2L/min, test precision 0.5%.
3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4.Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP3 common rail pump is equipped.
6. Industrial computer with windows system.
7 Rich database:640 types of data.
8. Self-protection under following status:overheat, oil-mist, overpressure, low oil level,
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
11. Iron fuel tank with industrial air-conditioner inside .
12.Support Multi-language
--Characteristics
1,the machine can add to eui eup system and cam box with all adpater
2.it use original German flow sensor which is with high quality
3.the machine use the brand new and original bosch rail
4.the price of crs708C has included all the functions ,for example :test the piezo injector ,hpo pump test function ,DRV valve function and the pump delivery test function
5.the crs708C use new update common rail system which is similar with the original eps815 .
6.the machine use original CP1 pump .
Other colors

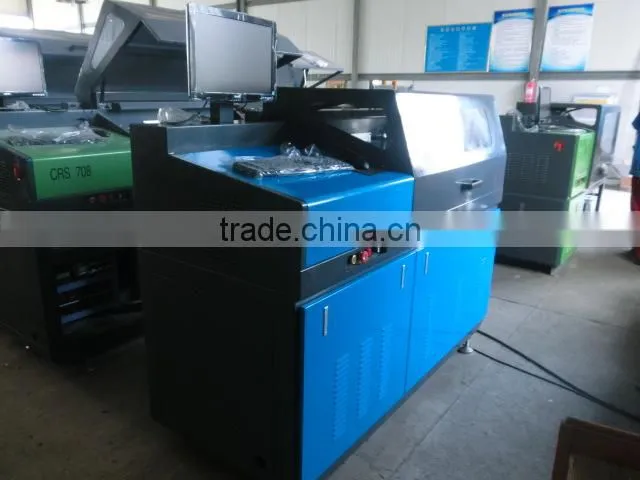

>>>Our products on show :
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,
common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future!!!
--Welcome to contact with us
