Home > Electrical & Electronics > Sensor > Pressure Sensor > Warehouse Scale Load Cell, Railway Scale Sensor

Warehouse Scale Load Cell, Railway Scale Sensor

Warehouse Scale Load Cell, Railway Scale Sensor thumbnail-1
Warehouse Scale Load Cell, Railway Scale Sensor thumbnail-2
Warehouse Scale Load Cell, Railway Scale Sensor photo-1
Warehouse Scale Load Cell, Railway Scale Sensor photo-2
US$ 80 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
manyyear
Model Number:
MLC132
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name manyyear
Model Number MLC132
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description
warehouse scale load cell, railway scale sensor

Features

Model: MLC132

Category: Bridge Load Cell

Range: 50,60,75,100KLB

Dimension: 260*D51.5mm

Material: Alloy steel,stainless steel

Application:   crane scale,steel embody scale/lifting weight limited

Characteristic: crane scale load cell,steel embody scale load cell

Technology


Specification

comprehensive error:

0.017%FS

output resistance:

700±5Ω

Rated output:

3±0.003mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.017%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40°C

Repeatability:

0.01%FS

use temperature:

-20~+55°C

Creep:

0.02%FS/10MIN

temp effect on zero:

0.02%FS/10°C

Zero balance:

±1%FS

Temp effect on span:

0.014%FS/10°C

 Input resistance:

700±10Ω

defend grade:

IP66 & IP68
Application

 warehouse scale load cell, railway scale sensor

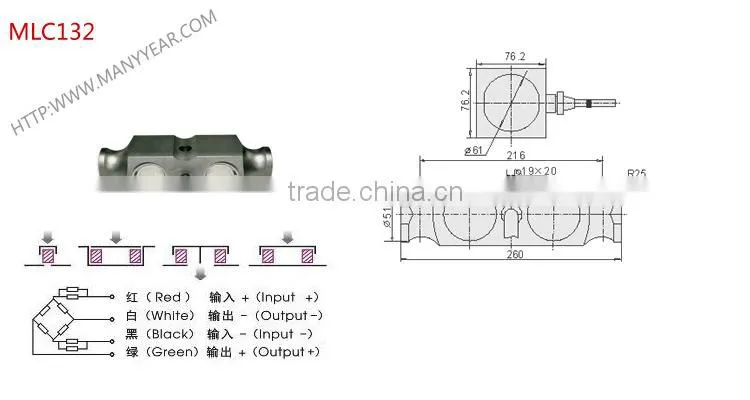

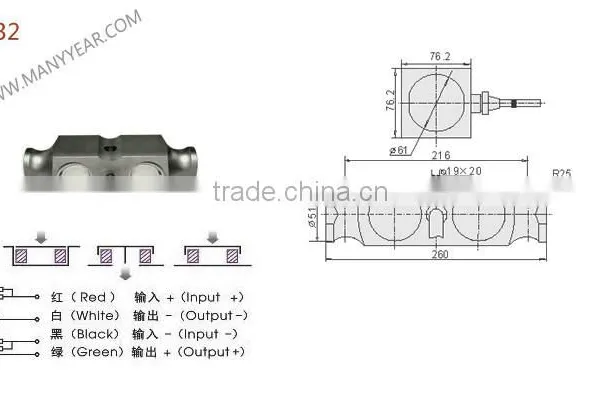

Product Dimension
warehouse scale load cell, railway scale sensor

Force type

warehouse scale load cell, railway scale sensor

Packaging & Shipping

Product photo

 warehouse scale load cell, railway scale sensor

Packing picture

warehouse scale load cell, railway scale sensor

Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
