Cheap Body Scale Personal Scale Load Cell

Cheap Body Scale Personal Scale Load Cell thumbnail-1
Cheap Body Scale Personal Scale Load Cell thumbnail-2
Cheap Body Scale Personal Scale Load Cell photo-1
Cheap Body Scale Personal Scale Load Cell photo-2
US$ 1.5 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC902
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC902
Type Medical / Personal Scale
Power Supply NA
Display Type NA
Rated Load 75kg
Accuracy NA


Product Description
cheap body scale personal scale load cell

Features

Model:MLC902

Category:Micro load cell

Range:10kg,25kg,50kg,75kg

Dimension:34*34*7.8mm

Material:Alloy steel

Application:body scale, baby scale,personal scale

Characteristic:body scale load cell, personal scale load cell

Technology

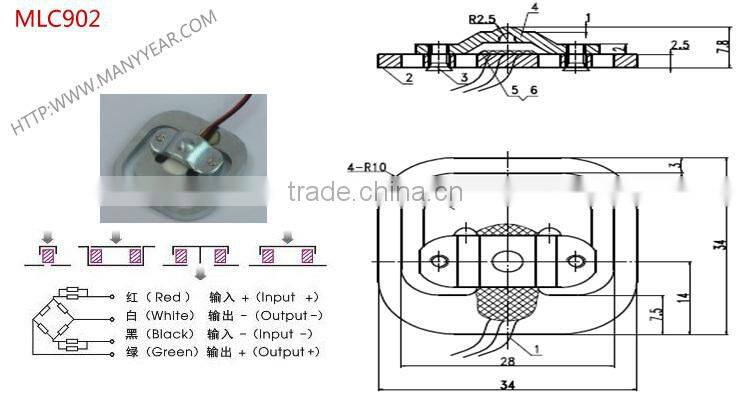

Dimension reference

Load range

10kg

30kg

50kg

75kg

H1

1.5

2

2.5

3

H2

6.8

7.3

7.8

8.3

Rated output:

0.5±0.15mv/v

1.0±0.15mv/v

1.0±0.15mv/v

1.0±0.15mv/v

Specification

Comprehensive error:

0.2%FS

output resistance:

1000±10Ω

Rated output:

1.0/0.5±0.15mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.2%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.2%FS

compensated temp:

-10~+40ºC

Repeatability:

0.15%FS

use temperature:

-20~+55ºC

Creep:

0.15%FS/10MIN

temp effect on zero:

0.2%FS/10ºC

Zero balance:

±0.3mv

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1090±10Ω

defend grade:

IP66

Application

cheap body scale personal scale load cell



Product Dimension

cheap body scale personal scale load cell



Force type

cheap body scale personal scale load cell




Packaging & Shipping

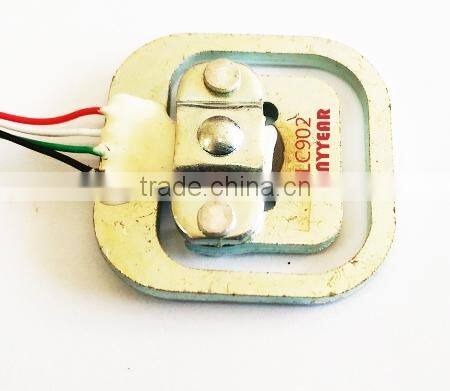

Product photo

cheap body scale personal scale load cell



Packing picture

cheap body scale personal scale load cell




Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
