Kitchen Scale Sensor ,fish Scale Sensor, Micro Fore Test Equipment

Kitchen Scale Sensor ,fish Scale Sensor, Micro Fore Test Equipment thumbnail-1
Kitchen Scale Sensor ,fish Scale Sensor, Micro Fore Test Equipment thumbnail-2
Kitchen Scale Sensor ,fish Scale Sensor, Micro Fore Test Equipment photo-1
Kitchen Scale Sensor ,fish Scale Sensor, Micro Fore Test Equipment photo-2
US$ 2 - 20 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC611C
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC611C
Type Hanging Scale
Power Supply NA
Display Type NA
Rated Load 20kg
Accuracy NA
Product Description

kitchen scale sensor ,fish scale sensor, micro fore test equipment

Features

Model:MLC611C

Category:micro load cell

Range:0.5~20kg

Dimension:58*12.7*12.7mm

Material: alloy aluminum

Application:handle scale,kitchen scale,fish scale,micro fore test equipment

Characteristic:postal scale load cell, handle scale load cell

Technology


                                                                               Other dimension

LOAD-KG

0.5

1

2

3

4

5

6

7

7.5

8

10

15

20

CREEP

T5

T5

T5

T6

T8

T8

T8

T8

T8

T8

T4

T2

T2

a

10.5

10.5

10.5

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

Sensitivity

1.0 ±0.15

1.0 ±0.10

                                                                         Specification

comprehensive error:

0.05FS

output resistance:

1000±10Ω

Rated output:

0.5±0.1mv

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40ºC

Repeatability:

0.05%FS

use temperature:

-20~+55ºC

Creep:

0.05%FS/10MIN

temp effect on zero:

0.1%FS/10ºC

Zero balance:

±0.1%FS

Temp effect on span:

0.1%FS/10ºC

Input resistance:

1090/1130±10Ω

defend grade:

IP66



Application

kitchen scale sensor ,fish scale sensor, micro fore test equipment

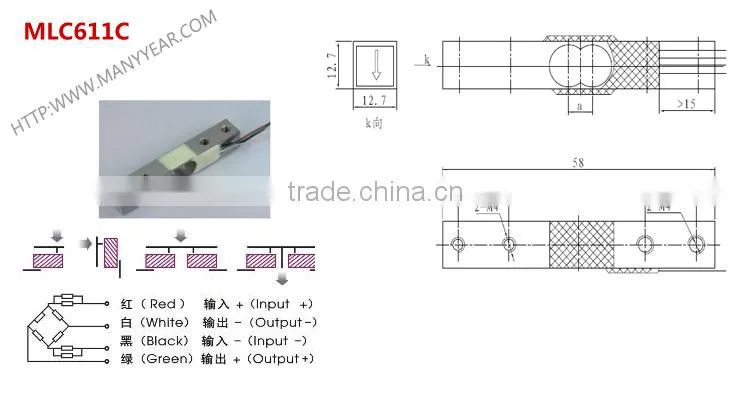

Product Dimension

kitchen scale sensor ,fish scale sensor, micro fore test equipment



Force type

kitchen scale sensor ,fish scale sensor, micro fore test equipment



Packaging & Shipping

Product photo

kitchen scale sensor ,fish scale sensor, micro fore test equipment



Packing picture

kitchen scale sensor ,fish scale sensor, micro fore test equipment



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
