Electronic Scale Load Cell ,platform Scale Load Cell

Electronic Scale Load Cell ,platform Scale Load Cell thumbnail-1
Electronic Scale Load Cell ,platform Scale Load Cell thumbnail-2
Electronic Scale Load Cell ,platform Scale Load Cell photo-1
Electronic Scale Load Cell ,platform Scale Load Cell photo-2
US$ 8 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC609D
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC609D
Type Other, platform scale
Power Supply NA
Display Type NA
Rated Load 60kg
Accuracy NA
Product Description
electronic scale load cell ,platform scale load cell

Features

Model:MLC609D

Rated load: 6,12,15,30,60kg

Precision: C2 & C3

Safe overload:150%   Ultimate overload: 200%

Material: 17-4PH stainless steel

Apply to: electronic scale,platform scale, belt scale,packaging scale and other electronic weighing device.

Technology



capacity

kg

6/12/15/30/60

Accuracy class



C2

C3

Maximum number of verification intervals

n max

2000

3000

Minimum load cell verification interval

v min

E max/5000

E max/10000

Combined error

(%FS)

0.030

0.020

Creep

(%FS/30min)

0.024

0.016

Temperature effect on sensitivity

(%FS/10℃)

0.017

0.011

Temperature effect on zero

(%FS/10℃)

0.023

0.015

Output sensitivity (note 1)

(mv/v)

2.0 ±0.2/2.0 ±0.002/3.0 ±0.2

Input resistance (note 2)

(Ω)

400±20

Output resistance

(Ω)

351±2

Insulation resistance

(MΩ)

≥5000(50VDC)

Zero balance

(%FS)

1.5

Temperature, compensated

(℃)

-10~+40

Temperature, allowed

(℃)

-35~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation, Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Corner correction



0.02% load value/ 100mm

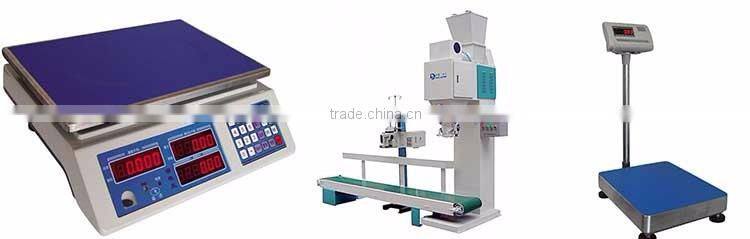

Application

 electronic scale load cell ,platform scale load cell

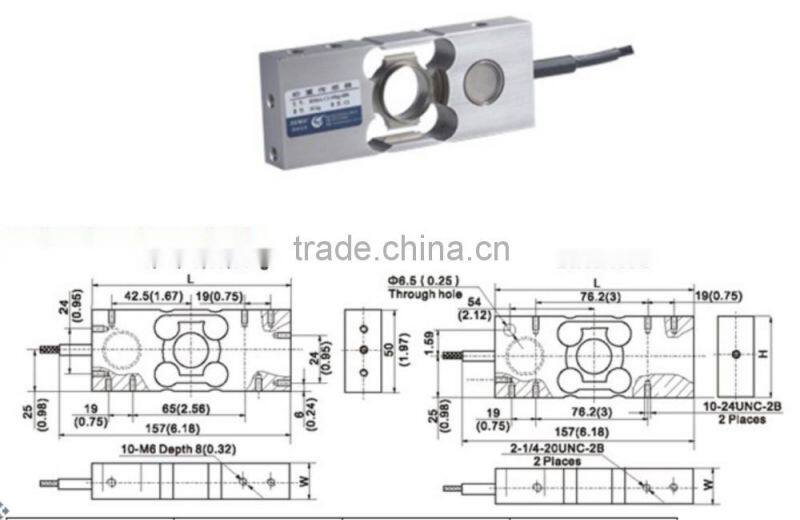

Product Dimension

electronic scale load cell ,platform scale load cell

CAPACITY

L

H

W

6,12,15,30KG

130 (5.12)

50 (1.96)

18.5 (0.73)

60KG

130 (5.12)

50 (1.96)

23.5 (0.92)

Force type

electronic scale load cell ,platform scale load cell

Wiring:

Note:Connection of 6 conductor wires are as above

Both 4 and 6 conductor wires are available

For 4 conductor wires the yellow and blue sense wires are removed.

On customers’ requirements.

Cable diameter: D5±0.2mm

Standard length for 4 conductor cable: 3m

Standard length for 6 conductor cable: 6m

Packaging & Shipping

Product photo

electronic scale load cell ,platform scale load cell



Packing picture

electronic scale load cell ,platform scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
