0.3kg Micro Load Cell, 0.3kg Weight Sensor

0.3kg Micro Load Cell, 0.3kg Weight Sensor thumbnail-1
0.3kg Micro Load Cell, 0.3kg Weight Sensor thumbnail-2
0.3kg Micro Load Cell, 0.3kg Weight Sensor photo-1
0.3kg Micro Load Cell, 0.3kg Weight Sensor photo-2
US$ 8 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC608I
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC608I
Type Other, postal scale
Power Supply NA
Display Type NA
Rated Load 6kg
Accuracy NA
Product Description
0.3kg micro load cell, 0.3kg weight sensor

Features

Model: MLC608I

Category: single point load cell

Range: 0.3-6kg

Dimension: 109*25*8mm

Material: Alloy aluminum

Application: micro electronic balance, micro force test, jewelry scale

Characteristic: 0.3kg micro load cell, 0.3kg weight sensor

Technology


                                                                                 Specification

comprehensive error:

0.02FS

output resistance:

1000±10Ω

Rated output:

1.0±0.15mv/v(1kg);

2mv/v(3kg)

Insulation resistance:

≥2000 MΩ/50V

Non-linearity:

±0.05%F.S.

Excitation voltage:

5~10VDC

Hysteresis:

±0.05%F.S.

compensated temp:

-10~+40ºC

Repeatability:

±0.05%F.S.

use temperature:

-20~+55ºC

Creep:

±0.05%F.S.5min

temp effect on zero:

±2.0%F.S./10ºC

Zero balance:

±0.1%FS

Temp effect on span:

±0.05%F.S./10ºC

Input resistance:

1055±10Ω

defend grade:

IP66

Application

0.3kg micro load cell, 0.3kg weight sensor

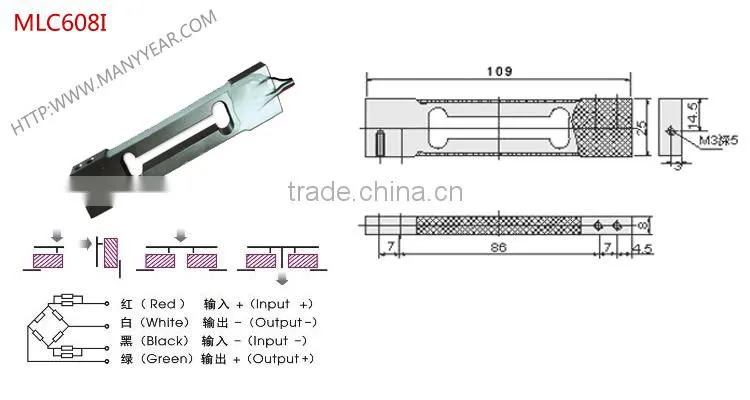

Product Dimension

0.3kg micro load cell, 0.3kg weight sensor



Force type

0.3kg micro load cell, 0.3kg weight sensor



Packaging & Shipping

Product photo

0.3kg micro load cell, 0.3kg weight sensor



Packing picture

0.3kg micro load cell, 0.3kg weight sensor



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
