Electronic Counting Scale Sensor , Platform Scale Load Cell

Electronic Counting Scale Sensor , Platform Scale Load Cell thumbnail-1
Electronic Counting Scale Sensor , Platform Scale Load Cell thumbnail-2
Electronic Counting Scale Sensor , Platform Scale Load Cell photo-1
Electronic Counting Scale Sensor , Platform Scale Load Cell photo-2
US$ 7 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC607
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC607
Type Counting Scale
Power Supply NA
Display Type NA
Rated Load 150kg
Accuracy NA
Product Description
electronic counting scale sensor , platform scale load cell

Features

Model: MLC607

Category: single point load cell

Range: 50kg, 115kg, 150kg

Dimension: 122*25*40mm

Material: Alloy aluminum

Application: electronic counting scale,platform scale, pricing scale,

Characteristic: Platform scale weighing load cell, pricing scale weighing

Technology


comprehensive error:

0.05%FS

output resistance:

1000±10Ω

Rated output:

2±0.003mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+60ºC

Creep:

0.02%FS/10MIN

temp effect on zero:

 0.02%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

1000±15Ω

defend grade:

IP65
Application

 electronic counting scale sensor , platform scale load cell

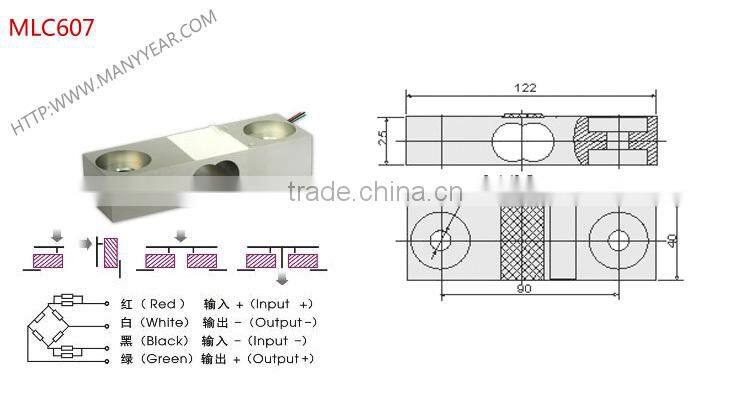

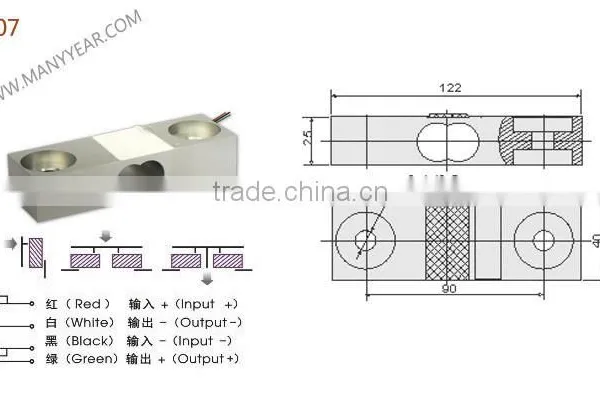

Product Dimension
electronic counting scale sensor , platform scale load cell

Force type

electronic counting scale sensor , platform scale load cell

Packaging & Shipping

Product photo

electronic counting scale sensor , platform scale load cell



Packing picture

electronic counting scale sensor , platform scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
