Belt Drive Balancing Machine, Fan Balancing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

YYQ

Taian Tongchuang Balancing Machine LLC.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name TC

Model Number YYQ

Power Electronic

Usage Balancing Machine

Specifications

Hard bearing
Belt drive
computer display

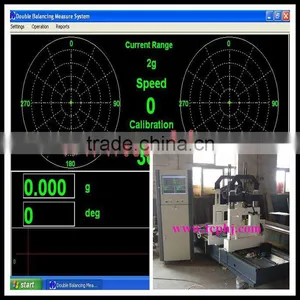

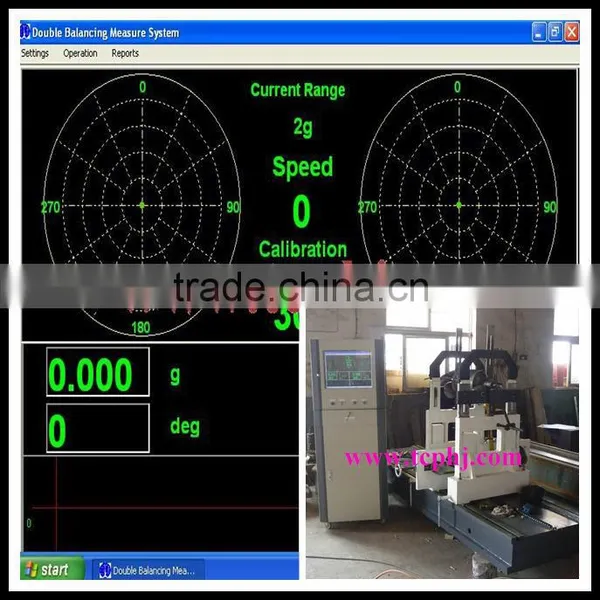

17 inch screen displays unbalance value, phase, rt rotate speed
Resonable price

Technical Data

Model	Weight of workpiece (kg)	Max.diameter of workpiece (mm)	Distance between two support bearings(mm)	Range of journal diameter (mm)	Balancing speed (rpm)	Min. achievable residual un balance(g.mm/kg):	Unbalance reduction ratio(%):	Drive power (kw)
YYQ-5	0.1-5	400	50-600	3-40	400-5000	≤0.5	≥90	0.09
YYQ-16	0.3-16	500	60-600	5-40	400-5000	≤0.5	≥90	0.18
YYQ-50A	1-50	900	60-800	8-70	300-5000	≤0.5	≥90	0.75
YYQ-100A	2-100	900	80-1000	10-140	300-5000	≤0.5	≥90	1.5
YYQ-160A	2-160	950	100-1400	10-180	300-2500	≤0.5	≥90	1.5
YYQ-300A	5-300	1200	150-1500	20-180	300-2500	≤0.5	≥90	4.0
YYQ-500A	10-500	1500	150-1500	20-240	180-2500	≤0.5	≥90	4.0
YYQ-1000A	10-1000	1500	150-2600	20-240	180-2500	≤0.5	≥90	5.5
YYQ-1600A	30-1600	1800	150-2600	20-240	180-2500	≤0.5	≥90	7.5
YYQ-3000A	100-3000	2000	150-2600	15-300	180-2500	≤0.5	≥90	11
