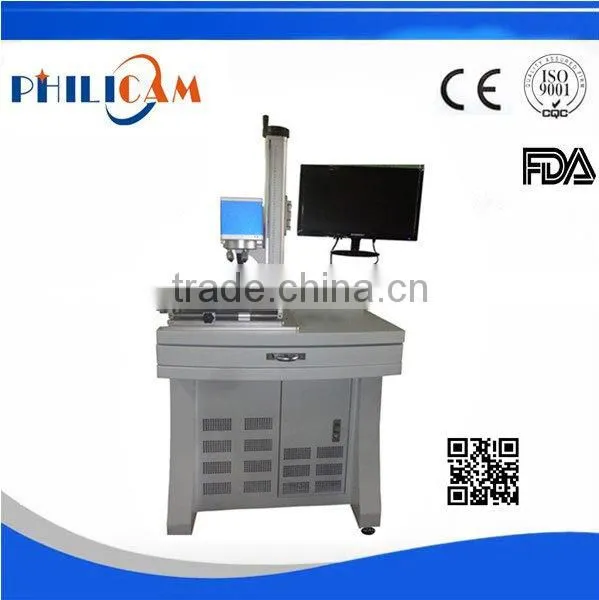

machine de gravure laser 20 w metal/ fiber laser marker
Feature of machine de gravure laser 20 w metal :
The fiber laser marking machine adopts originally imported fiber laser and imported speedy gavol scanning system. High quality of light beam.Marking has non-touched process, permanent effect, humanized operation, and stable running. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.
1.Adopting the imported original IPG fiber laser from Germany. And taking use of original imported isolators to protect fiber laser window, which enhances stability and laser life.
2.Its beam quality is much better than traditional solid laser marking machine. As the base module output, diameter of focal spot is less than 20um.Divergence angle is 1/4 of pumped
semiconductor laser. Particularly applicable to fine, precision marking.
3.High conversion efficiency of electro-optic, and the power consumption of the whole equipment is below 500W which is 1/10 of that of the solid laser marking machine pumped by the lamp to save the energy to a large extend
4.No maintainance for more than 100000hours
5. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc. It can realized automatic edition and correction of characters, signs, graphs,
images, bar codes, two-dimensional codes,automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly.
Application :
All metals (including rare metals), engineering plastics, electroplate coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.
Fiber laser marking machine | |
modle |
FLDJ-10w /20w/30w/50w |
Power |
10w /20w/30w/50w |
Laser wavelength |
1064nm |
Repeating frequency |
20-80 KHz ≤15000mm/s
|
Beam quality |
<1.2 |
Marking range |
30mm/30mm-300mm/300mm |
Engraving line speed |
≤15000mm/s
|
Min. line width |
≤ 0.01mm |
Min. character |
0.1mm |
Max marking depth |
1.5mm |
Repeatability accuracy |
±0.001 |
Power supply |
220V/50Hz/60hz |
Power consumption |
≤ 800W |
Outline dimensions |
1480mmX830mmX720mm |
gross weight |
140 KG |
Cooling system |
Air cooling |

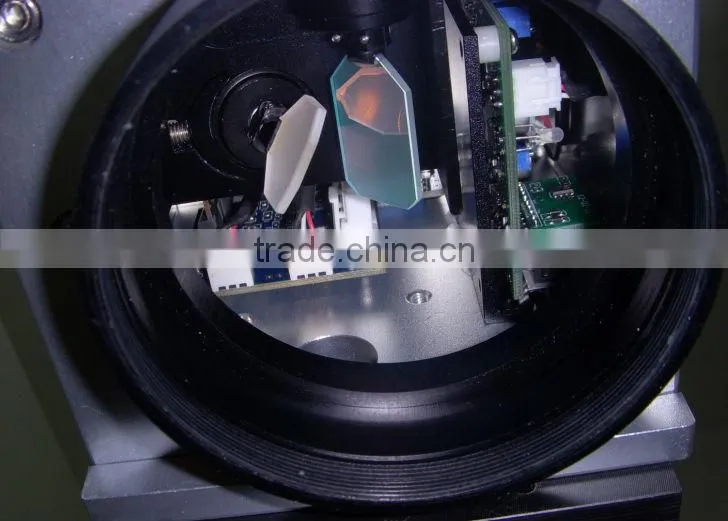

Cavity:
Field lens:

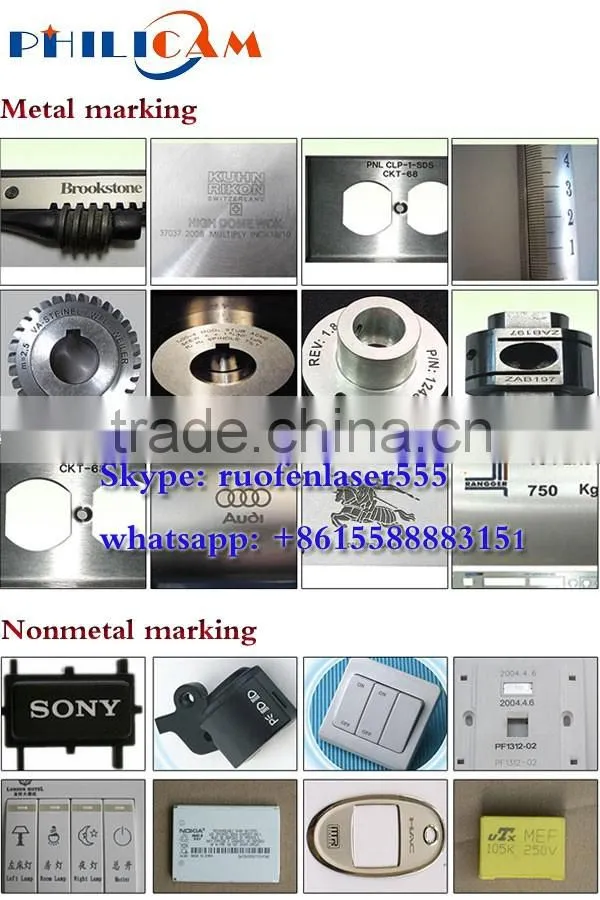

Sample:

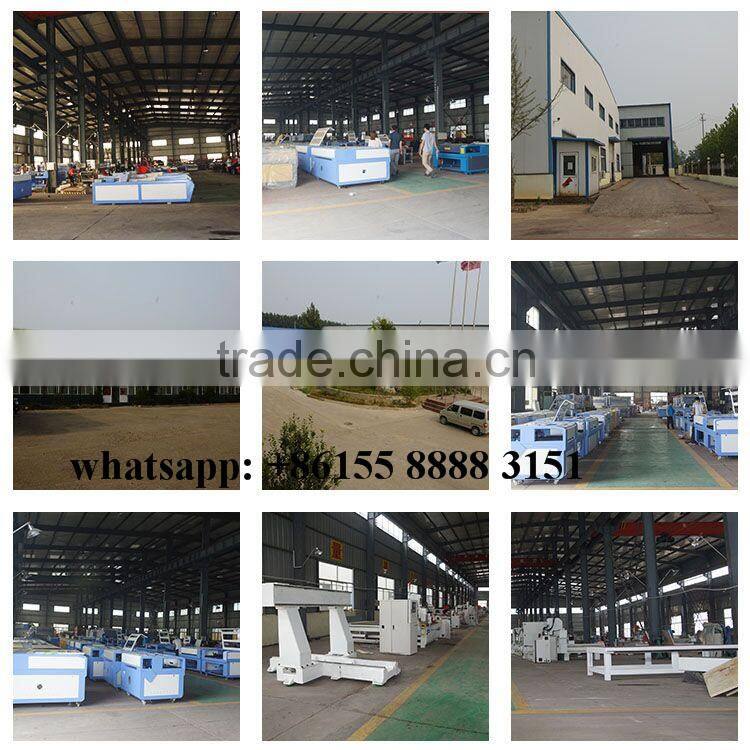

Photo of us
Our warranty:
#warranty: 1 year for the machine
#provide technical services to the door (We have professional engineers to offer machine installation commissioning and maintenance)
#replace all parts for free during the warranty period(no human damage)
# 24th technology online support (skype, yahoo, MSN)
Why choose Philicam product?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling . There is no middle man and no agent, so the price is pretty competitive.
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers.
We can offer different choices for our customers !!!
Please contact me.
Nina
skype: ruofenlaser555
viber/whatsapp/wechat: +8615588883151
QQ: 824214243
Send Inquiry to This Supplier
