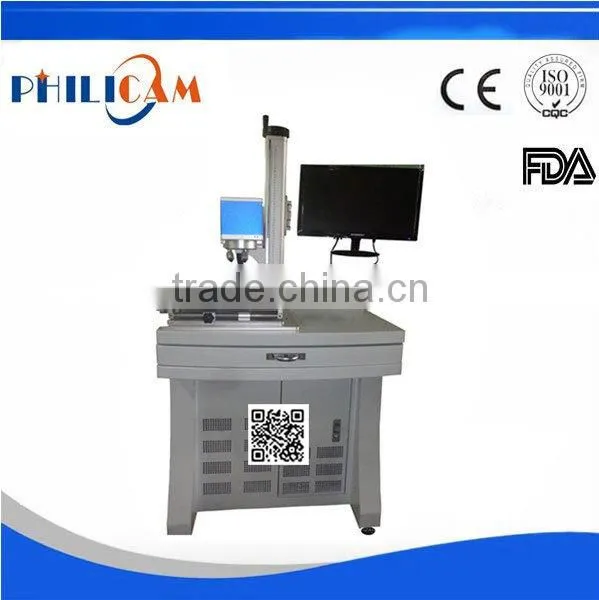

Help CenterJinan PHILICAM CE Approved Pulsed Fiber Laser Marking Machine for Metal
Related Products
-
New and High Tech Fiber Laser Mark Machine Prices for JewelleryUS$ 1 - 15,000MOQ: 1 Set -
Best Quality China Yag Diode Pump Laser Marking MachineUS$ 1 - 10,000MOQ: 1 Set
-
Cheap High Level and Performance Fiber Metal Laser Cutting MachineUS$ 6,900 - 12,000MOQ: 1 Set
-
Portable Handheld Fiber Laser Cutting Machine for Metal Sheet on SaleUS$ 6,900 - 10,000MOQ: 1 Set
-
10w 20w Laser Machine Engrave on Metal and NonmetalUS$ 6,500 - 8,000MOQ: 1 Set
pulsed fiber laser marking machine
Features
1.The device uses semiconductor-pumped solid-state laser, it uses semiconductor laser diode-pumped Nd: YAG medium of 808nm wavelength, and the medium produced a large number of inverted particles
which formed giant pulsed laser output of 1064nm wavelength under the action of Q switching, so
the electro-optical conversion is efficient.
2.The product size is small, which is only one-fourth of the traditional lamp-pump.
3.The professional designed laser resonator make beam quality better, and processing lines more elaborate.
4.The accompanied precision XYZ three-dimensional table can achieve precision positioning requirements.
5.The equipped high precision water temperature control system provides reliable long-life protection for the machine.
6.The software control system adopts WINDOWS XP as the operating platform, all-Chinese language interface, compatible with AUTOCAD, CORELDRAW, PHOTPSHOP and other file output.
7.It supports marking of bar code, text, graphics etc. the PLT, DXF, BMP and other file formats, direct using SHX,
TTF font store. The system can automatically encode, print serial number, batch number, and dates and so on.
Application
Materials: any metal (including precious metals), engineering plastics, plating, coating materials, spray material,
plastic, rubber, epoxy resin, ceramic, and other materials.
Industry: the phone keypad keys translucent plastic, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories,
bags decorated clasps, cookers, stainless steel products and other industries.
Technical parameter for Laser Marking machine:
Input voltage: |
AC220V±20V |
Frequency: |
50Hz |
Input power: |
1.5kVA |
Wavelength: |
1.064µm |
Power: |
20W |
Instability: |
±5% |
Radio-frequency power: |
≤50W |
Modulating frequency power: |
200Hz~50kHz |
Pulse duration modulation: |
4µs~25µs |
Working area: |
110mmx110mm |
Scanning speed |
0~7000mm/s |
Marking depth: |
0.01~0.2mm (according to material) |
Marking width: |
0.1-0.2mm (according to material) |
XY table working area: |
85mm x 85mm |
Laser head lifting height: |
200mm |
Cooling way: |
Refrigeration unit cools the circulating media then the circulating media cools the laser cavity. |
Refrigerating power: |
1P |
Refrigeration unit: |
De-ionized water, distilled water or purified water. |
Configuration
Samples
Why choose PHILICAM product?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser machine manufacturing and selling . There is no middle man and no agent, so the price is pretty competitive.
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers.
Payment terms:
1 You can pay 30% by T/T(bank transfer) in advance ,when we finished the machine ready for shipping ,you pay the 70% left.
2 You can pay by Escrow by Escrow.
Delivery time:
7-12 working days.If we see the scanner of bank receipt /confirmation by email ,we will take into producing the machine ,and ship it to you as soon as possible .
Our technical support and quality assurance as follows:
1.warranty:1 years
2.replace all accessories during the warranty period for free (except wearing parts and artificial damage)
3.Provide 24 hours technology online support
How to choose a good laser machine
1)Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This
situation will have a bad effect on your producing.So the quality of the machine is most important factors to choose a laser machine.
2)Future more,after-sales service is very important, too.Good after-sales service represent the image of a company .After you use the machine and find some problem of machine, a good after-sales can solve it effectively and protect the rights of consumers.
3)The third is technical support.Because of time difference,there is a big problem to communicate with the seller. When you need help, maybe it is the sleeping
time for the sellers. So the effectively contact information and serve is also useful to you. Other sellers maybe can not do this, but our company can provide 24th service a day.
4)The last is company. In order to ensure their image, a company with good reputation usually can produce good quality machine .
Thanks for your attention! PHILICAM is a manufacturer with more than 10 years' experience.
More details, please contact me via skype: ruofenlaser555
viber/whatsapp/wechat: +8615588883151
QQ: 824214243
