Philicam F2-9 China 3d Wood drilling Cnc Router Machine for furniture
- 200 Set / Sets per Month
- qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | PHILICAM | Model Number: | F2-9 | Voltage: | AC380V/50HZ |
Power(W): | 9.0kw | Dimension(L*W*H): | 3000*1820*1550mm | Weight: | 1100KG |
Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Philicam F2-9 China 3d Wood drilling Cnc Router Machine for furniture
Machine parts of F2-9 Wood drilling Cnc Router Machine for furniture
* 1300*2500*300mm working size
*9.0kw air cooling tool changer spindle
*X Y axis helical gear tranmission
*Z axis Taiwan TBI ball screw transmission
*Taiwan HIWIN 20 rails
*vacuum table and 5.5kw vacuum pump
*Taiwan Syntec control system
*750w Delta servo motor and drivers
*Fuling 11 kw inverter
*filter
*dust collector
*tool sensor
Technical parameters of F2-9 Wood drilling Cnc Router Machine for furniture
Description | Parameter |
X,Y Working Area | 1300x2500x300mm |
Table Size | 1440×3040mm |
Resolution | 0.01mm |
Lathe Structure | heavy duty |
X,Y Structure | Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure | taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed | 60m/min |
Spindle | 9 KW air cooling spindle |
Spindle Speed | 0-24000r/min, variable speed |
Working Voltage | AC380V/50Hz |
Motor and driver | YASKAWA motor and driver |
Command | G code (HPGL,U00,mmg,plt) |
Operating System | Taiwan SYNTEC control system |
Diameter of Cutter | φ3.175-φ12.7 |
Cooling Mode | Air-cooling |
Dust-collect Function | Yes |
Work Holding | By suction or clamp |

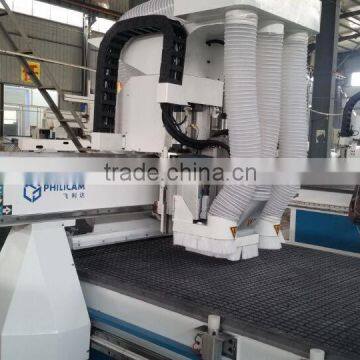

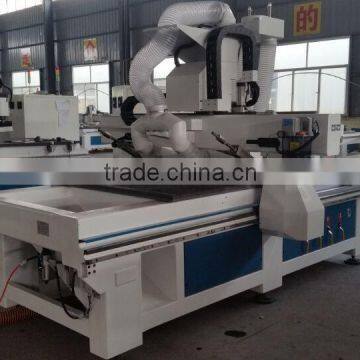

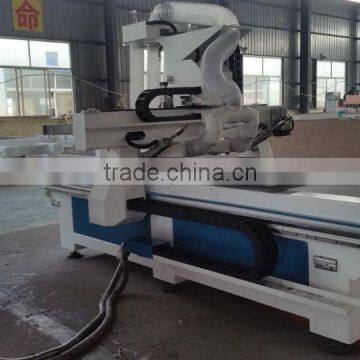

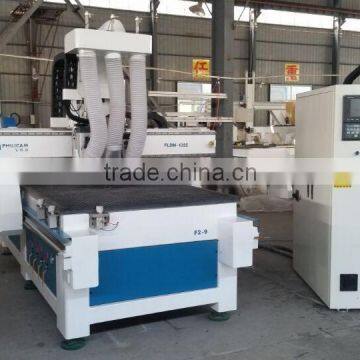

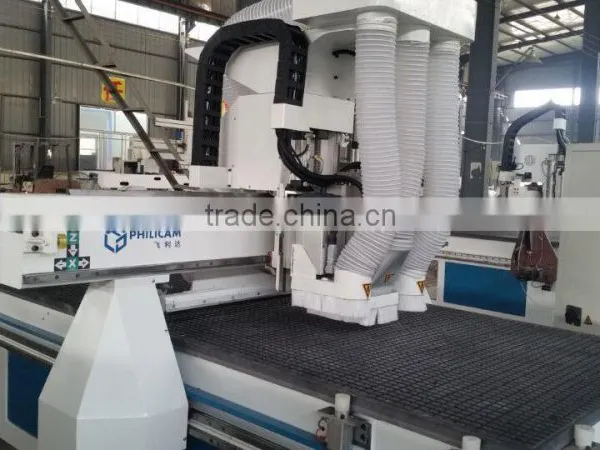

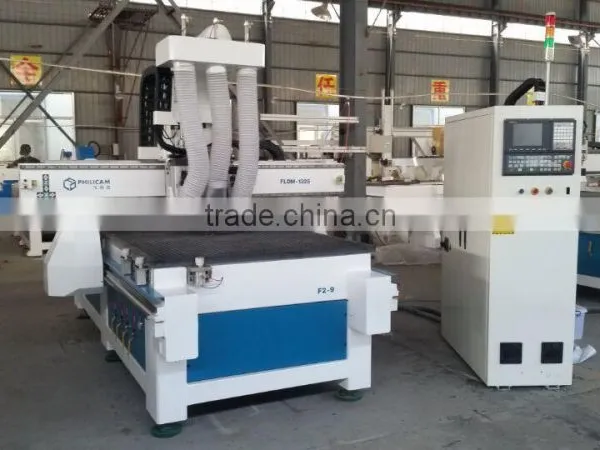

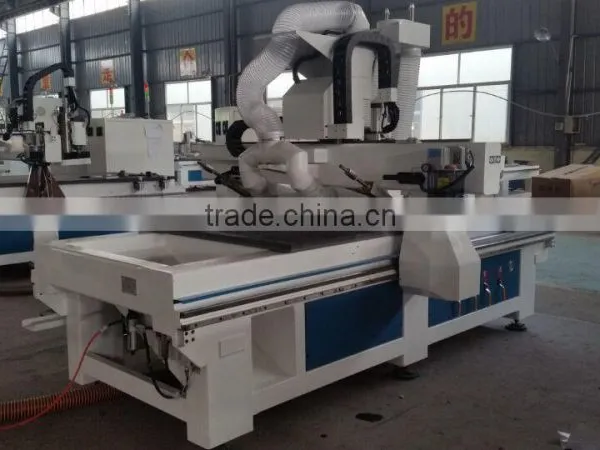

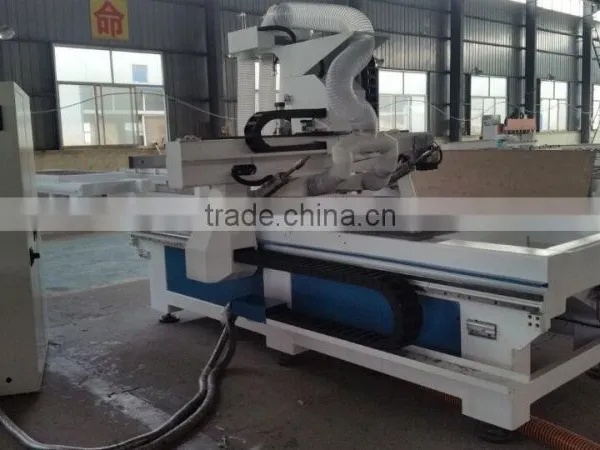

machine parts pictures of F2-9 Wood drilling Cnc Router Machine for furniture
Suction Cup Load device :
the suction cup load system is installed on the gantry, it can automatic go to hydraulic plastform to grab the boad , then drive it to the working table

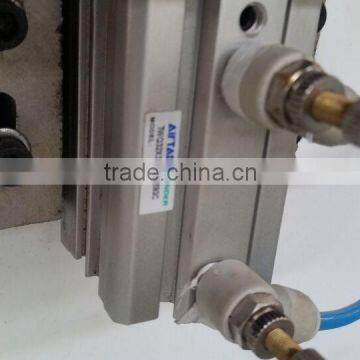

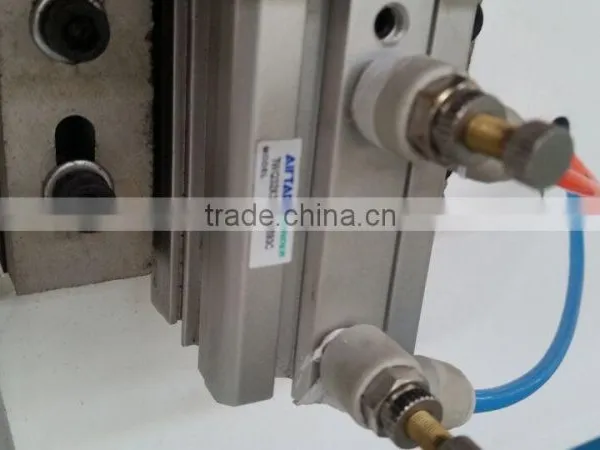

automatic loading auxiliary device :
when the suction cup load a sheet, the auxiliary device will help to reduce resistance and more easier to travel
Applications of F2-9 Wood drilling Cnc Router Machine for furniture
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
After Sale Service of F2-9 Wood drilling Cnc Router Machine for furniture
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
Payment Terms of F2-9 Wood drilling Cnc Router Machine for furniture
We accept T/T, Western Union. Paypal. or Trade assurance.
Most customers prefer to T/T. because its simple to do the transfer.
Usually we accept 30% in advance by T/T, 70% before delivery.
But before we send you the machine, we will test the machine then ensure everything is OK.
then show you machine photos and videos. After you agree,we arrange the delivery
Packing parts of F2-9 Wood drilling Cnc Router Machine for furniture
FAQ of F2-9 Wood drilling Cnc Router Machine for furniture
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
any questions, please do not hesitate to contact me
whatsapp :86-18615250502
skype and mail :export001(@)
wechat :919569070
