Philicam F3 ATC cnc wood engraving router machinery for doors cabinet
Circle ATC ,also called Rotary ATC,Disk ATC and Drum style ATC,is an Automatic Tool Changer (ATC) specially designed for optimal use your CNC routing machine. What distinguishes the Circle ATC from other ATCs is the the tool magazine is mounted next to the spindle. This results in a much faster tool change than with linear ATCs,because linear ATCs arrange the toolsat the far end of the router table so that the spindle and gantry have to move to the end of the table every time. By contract,the Circle ATC offers more efficent and lightning fast tool changes.
/v_show/id_XMTY1NzMxMzg2MA==.html
*Philicam F3 of cnc router atc
* 1300*2500*300mm working size
*9.0kw air cooling tool changer spindle
*X Y axis helical gear tranmission
*Z axis Taiwan TBI ball screw transmission
*Taiwan HIWIN 20 rails
*vacuum table and 5.5kw vacuum pump
*Taiwan Syntec control system
*750w Delta servo motor and drivers
*Fuling 11 kw inverter
*filter
*dust collector
*tool sensor
Machine parts pictures of cnc router atc
9.0kw air cooling tool changer spindle with maximum torque of 6.4 Nm on revolution between 12000 to 24000 per minutes,which is the perfect RPM for all tool bits and is capable of cutting and engraving on the materials.
The Vacuum table and 5.5kw vacuum pump ,it helps to absorb the processing material,it must uses a vacuum pump to provide power for avoiding slide of the machine.

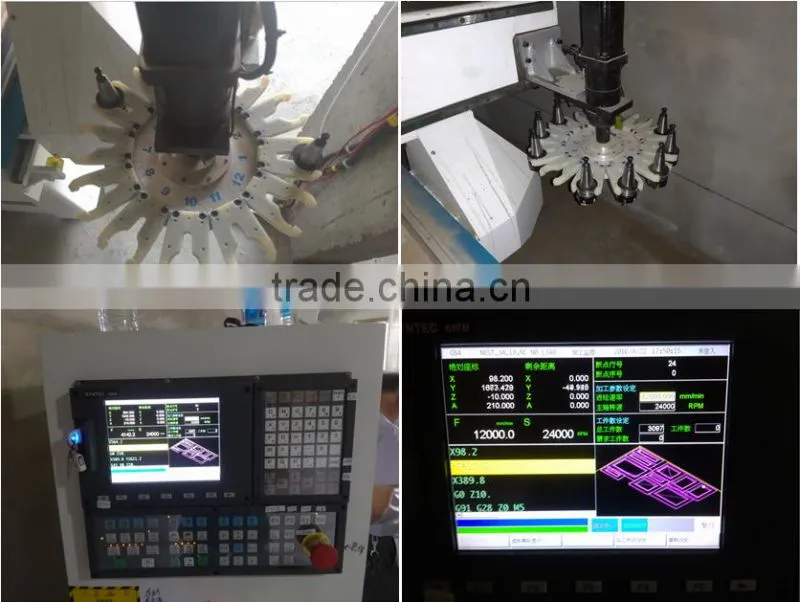

SYNTEC CNC Controller Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility
Dust collector with Dust Collection system, all dusts are controlled within small area by the brush of the dust hood on the spindle then get vacuumed away into the dust bag of dust collector. With our effective dust collection system, you have a cleaner working environment, longer lifespan of machine's mechanical parts and most important, a healthier workforce.
Technical Parameters of cnc router atc
Description |
Parameter |
X,Y Working Area |
1300x2500x300mm |
Table Size |
1440×3040mm |
Resolution |
0.01mm |
Lathe Structure |
heavy duty |
X,Y Structure |
Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure |
taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
9 KW air cooling spindle |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC control system |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |
Tool Magazine |
round -style auto-tool changer system with 10 pieces of tools |
Applications of cnc router atc

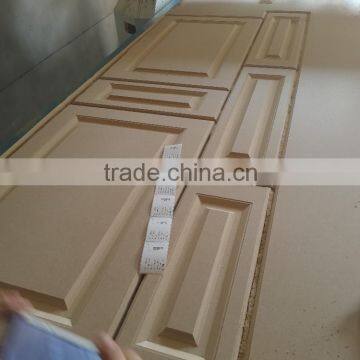

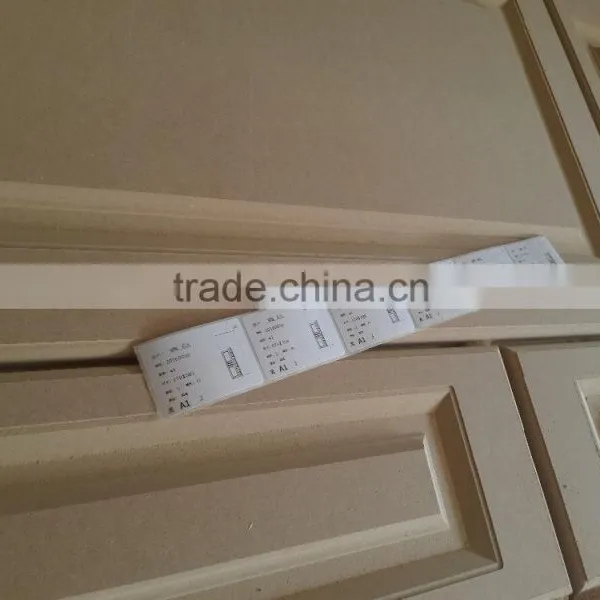

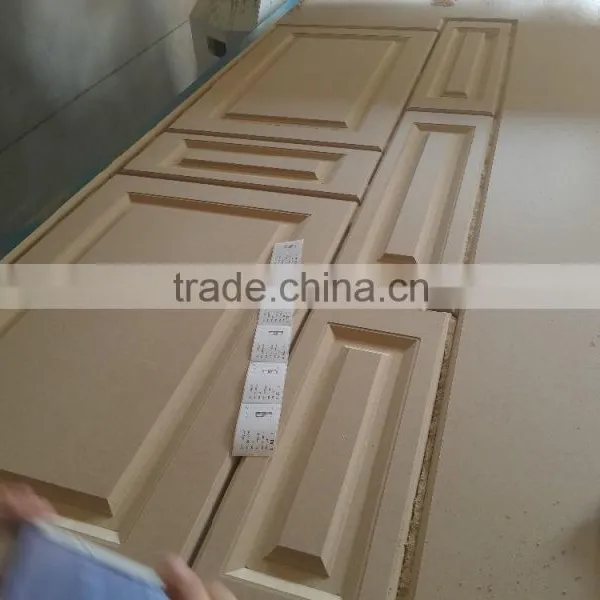

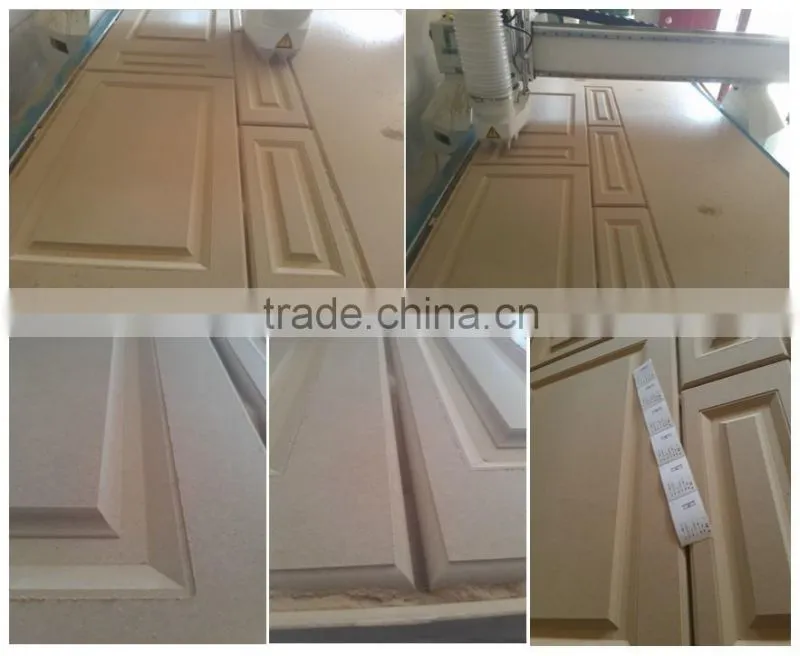

1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

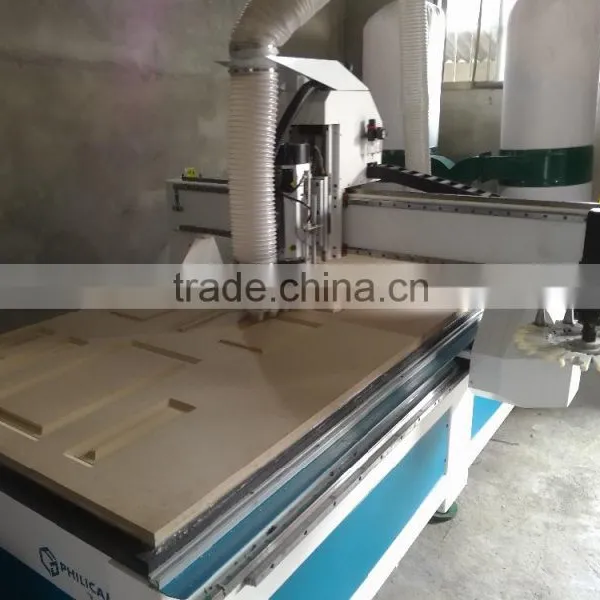

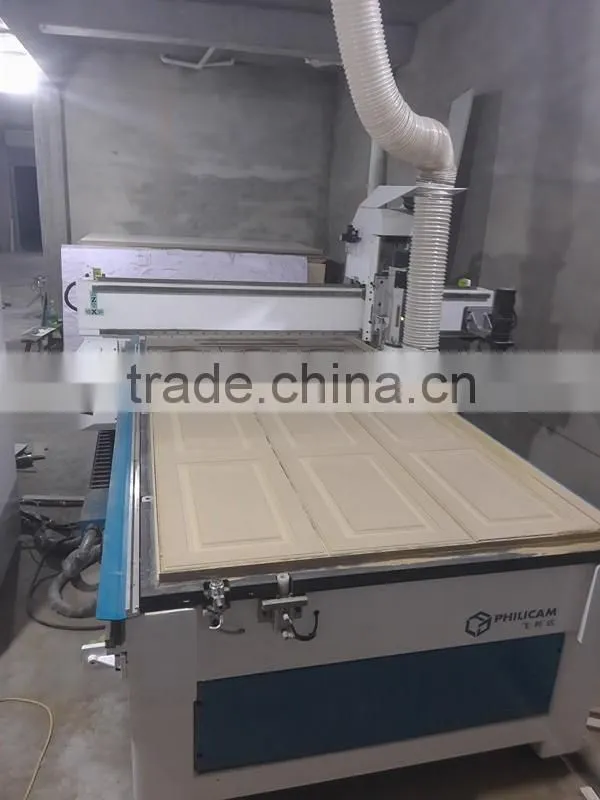

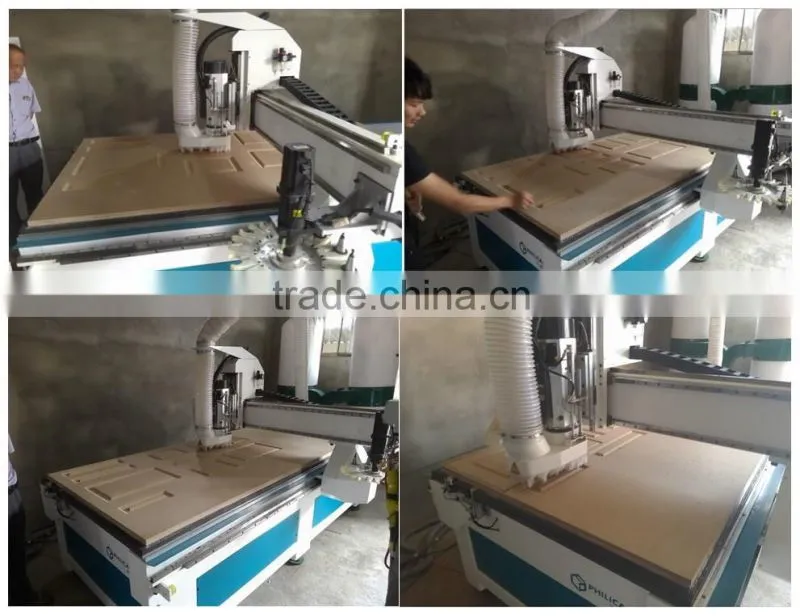

different direction pictures of cnc router atc
After Sale Service of cnc router atc
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
Payment Terms of cnc router atc
We accept T/T, Western Union. Paypal. or Trade assurance.
Most customers prefer to T/T. because its simple to do the transfer.
Usually we accept 30% in advance by T/T, 70% before delivery.
But before we send you the machine, we will test the machine then ensure everything is OK.
then show you machine photos and videos. After you agree,we arrange the delivery
Packing parts of cnc router atc
FAQ of cnc router atc
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
any questions, please do not hesitate to contact me
whatsapp :86-18615250502
skype and mail :export001(@)
wechat :919569070
