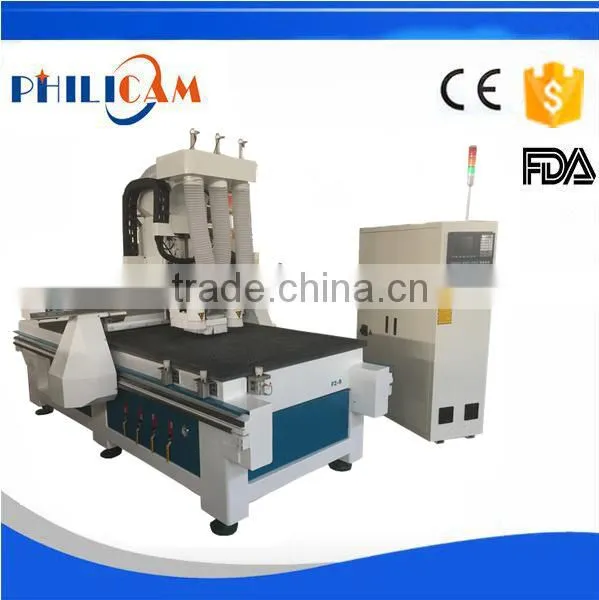

Help CenterPhilicam F2-9 Atc Spindle Cnc Router Carving Wooden Door Making Machine
Related Products
-
Philicam F2-9 China 3d Wood Drilling Cnc Router Machine for FurnitureUS$ 10,000 - 25,000MOQ: 1 Set -
FLDM-1325 Automatic Tool Changer Wood Working Cnc Router With Drilling HeadUS$ 5,000 - 30,000MOQ: 1 Set
-
Philicam F3 ATC Cnc Wood Engraving Router Machinery for Doors CabinetUS$ 5,000 - 17,000MOQ: 1 Set
-
Philicam Wood Cnc Router Machine Auto Tool Changer for Wooden Door DesignUS$ 5,000 - 20,000MOQ: 1 Set
-
Philicam Made In China 3d Cnc Router Wood With Round AtcUS$ 10,000 - 36,000MOQ: 1 Set
FLDM-1325 auto tool changer cnc router atc for wood drilling
Machine Features of F2-9 wooden door making machine
1.Processing of the machine is suitable for diversified complexity features widely: ornamental engraving and milling, drilling, cutting, sawing, door plank, sculpture shape
2.Z axis adopt Taiwan origin TBI screw, the Taiwan original orbit of silver side rail, high precision, strong wear resistance, long service life
3.Taiwan's new generation of control system, convenient operation, powerful functions
4.Drive system using yaskawa servo motor and drive. The function is all ready, stable performance, high reliability
5.Imported from Italy HSD spindle, high precision, long life and stable performance
6.Automatic lubricating device, the machine maintenance is convenient
7.Most of the other electronic parts from world famous brands
Machine parts of F2-9 wooden door making machine
* 1300*2500*300mm working size
*9.0kw air cooling tool changer spindle
*X Y axis helical gear tranmission
*Z axis Taiwan TBI ball screw transmission
*Taiwan HIWIN 20 rails

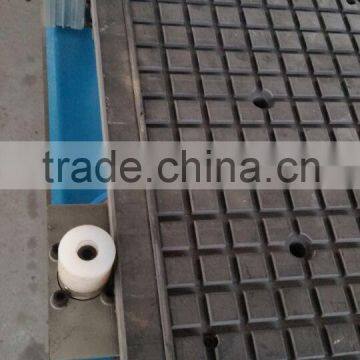

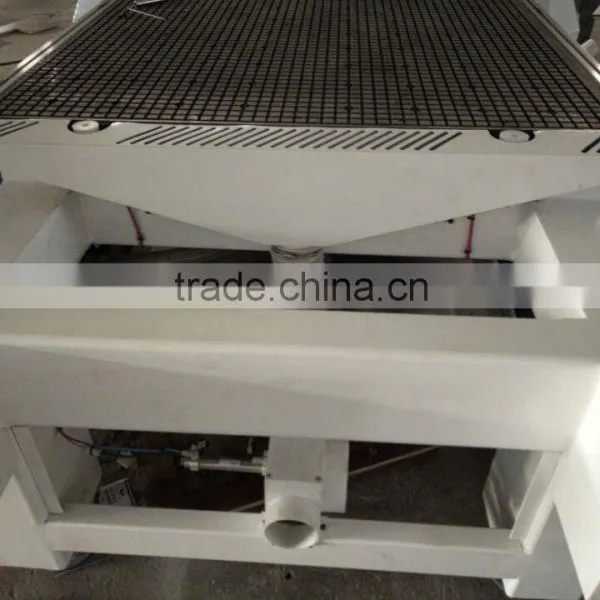

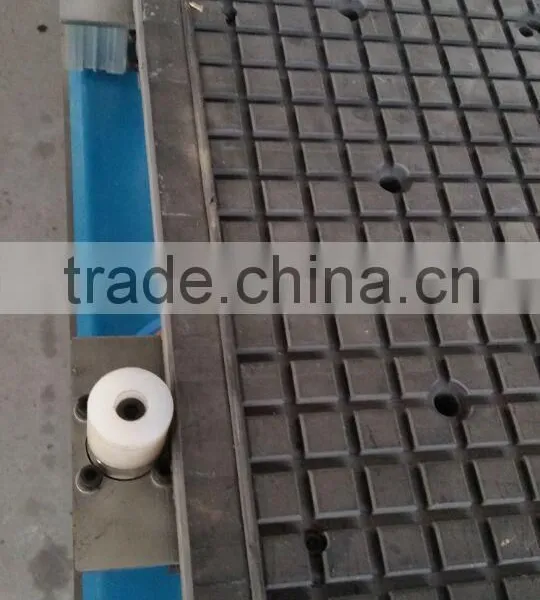

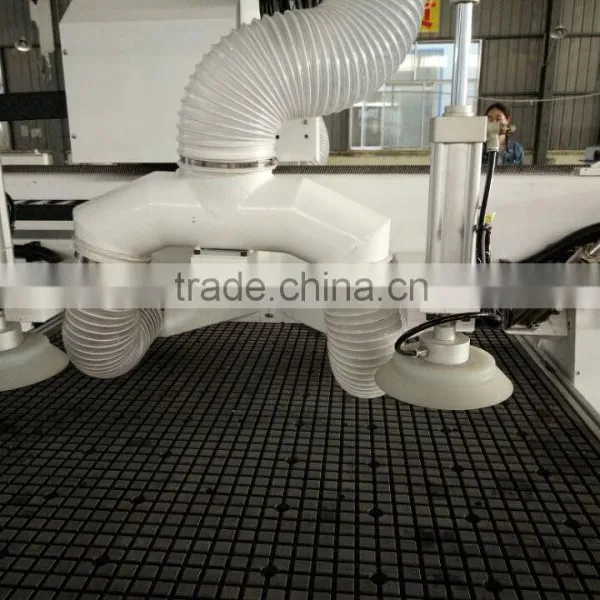

*vacuum table and 5.5kw vacuum pump

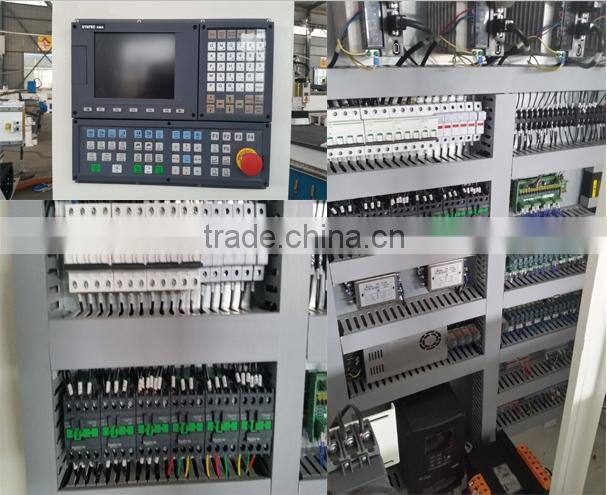

*Taiwan Syntec control system
*750w Delta servo motor and drivers
*Fuling 11 kw inverter
*filter

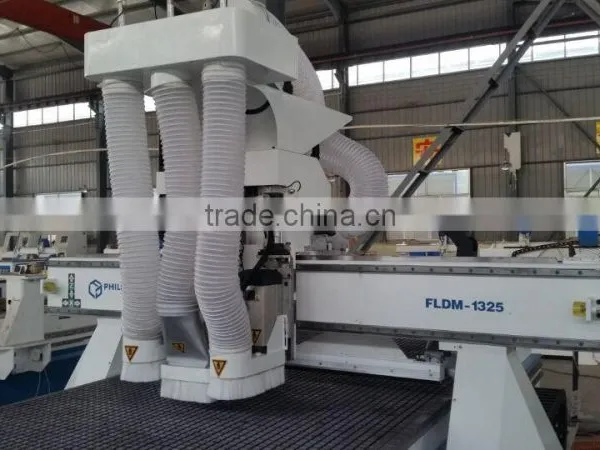

*dust collector
*tool sensor

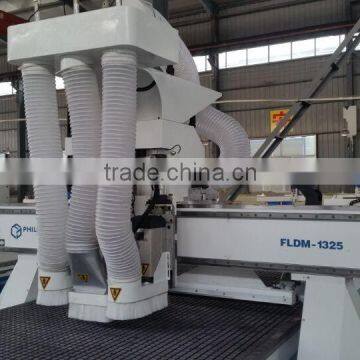

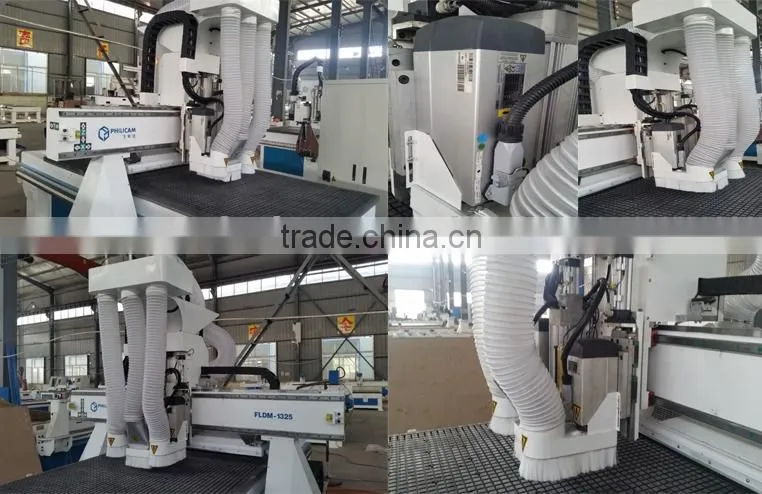

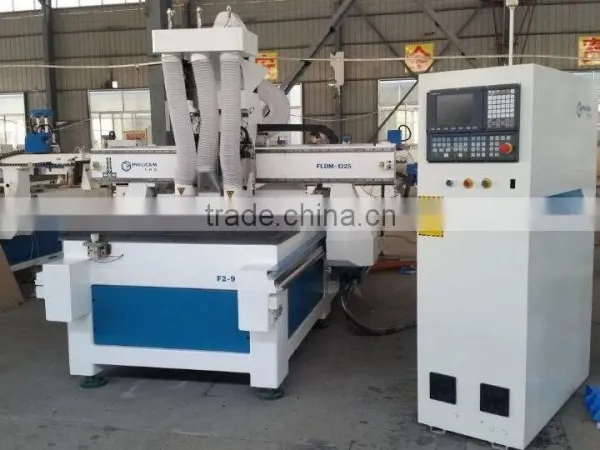

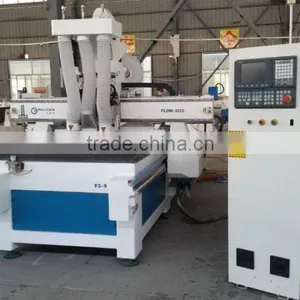

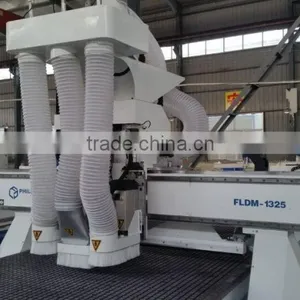

Machine parts pictures of F2-9 wooden door making machine
Technical Parameters of F2-9 wooden door making machine
Description |
Parameter |
X,Y Working Area |
1300x2500x300mm |
Table Size |
1440×3040mm |
Resolution |
0.01mm |
Lathe Structure |
heavy duty |
X,Y Structure |
Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure |
taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
9 KW air cooling spindle |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC control system |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |
Applications of F2-9 wooden door making machine
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Hot sale of F2-9 wooden door making machine
After Sale Service of F2-9 wooden door making machine
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
Payment Terms of F2-9 wooden door making machine
We accept T/T, Western Union. Paypal. or Trade assurance.
Most customers prefer to T/T. because its simple to do the transfer.
Usually we accept 30% in advance by T/T, 70% before delivery.
But before we send you the machine, we will test the machine then ensure everything is OK.
then show you machine photos and videos. After you agree,we arrange the delivery
Packing parts of F2-9 wooden door making machine
FAQ of F2-9 wooden door making machine
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
any questions, please do not hesitate to contact me
whatsapp :86-18615250502
skype and mail :export001(@)
wechat :919569070
