Home > Products > CNC laser machine > Philicam 1mm stainless steel laser cutting machine 500w
Philicam 1mm stainless steel laser cutting machine 500w
- 200 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | 3mm | Cutting Area: | 1300*2500mm | Cutting Speed: | 0-300mm/s |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Cypcut |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | PHILICAM |
Model Number: | FLDJ 1325 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Advantages of Fiber Metal cutting machines
1.Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2.High cutting speed: cutting speed is more than 20m/min.
3. Stable running: adopting the top world import fiber laser,stable performance, key parts can reach 100.000 hours.
4. High efficiency for photoelectric conversion :compare with CO2 laser cutting machine ,fiber lasers have three times
photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment .Photoelectric conversion rate is up to 25-30%.Low electric power consumption,it is only about 20%-30% of traditional CO2 lasers.
6.Low maintenance: fiber line transmission ,no need reflect lens, save maintenance cost.
7. Easy operations: no need to adjust the optical path.
8.Super flexible optical effects: compact design, compact and easy to flexible manufacturing requirements
Advantages
1. Low operation cost :power consumption is only 70-80% of co2 laser
2. High cutting speed :2-3times faster than yag of co2 laser
3. High cutting accuracy :finest laser beam up to 0.01mm
4. Low maintenance :almost totally free of maintenance

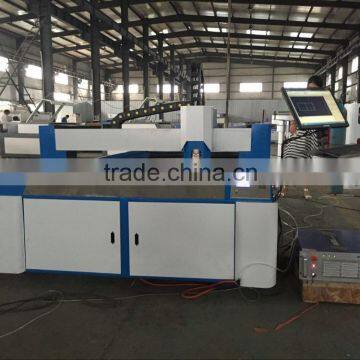

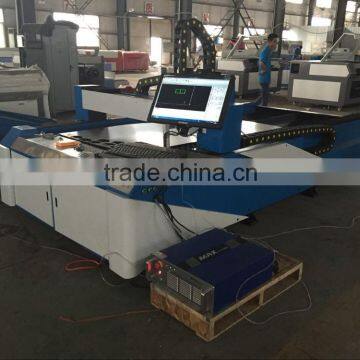

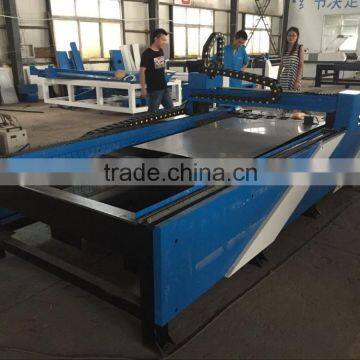

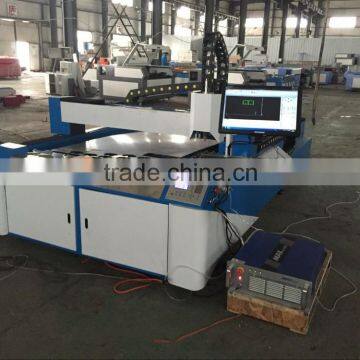

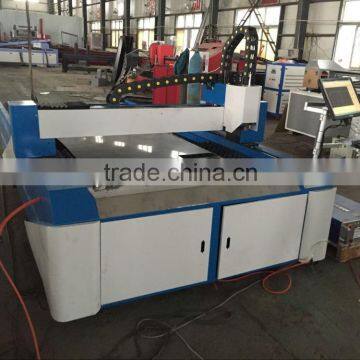

Machine parts pictures
Technicial Parameters
NO. | Model | FLD1325 |
1 | Working area | 1300x2500mm |
2 | Laser medium | Fiber |
3 | Laser power | 200w |
4 | Laser wave length | 1060nm |
5 | Min line width | ≤0.12mm |
6 | Positon accuracy | 0.03mm/m |
7 | Repetition accuracy | 0.02mm/m |
8 | Focus method | Following and automatic adjust focus |
9 | Guide rail | PMI from Taiwan |
10 | Drive system | Japan Servo motor and drivers |
11 | Cooling system | Water cooling |
12 | Control system | RUIDA rdc6333f |
13 | Working environment | Temperature: 0-45℃, |
14 | Power supply | 380v/50Hz |
15 | Total weight | 2000kg |
16 | Packaging size | 3600X2100X1600mm |

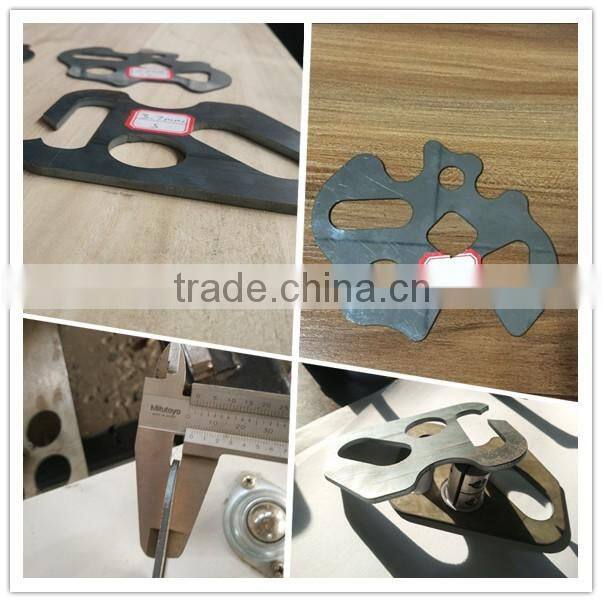

Machine Samples
FAQ
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Packing parts
factory show
Why choose Philicam ?
1. Feel Confident when buy from a CNC company that has expert staffs with over 10 years of CNC building experience.
2. Get the support that you deserve from our confident well trained staff members.
3. PHILICAM prides itself in having the patience and the ability to provide knowledge and service.
We have professional after service:
1. One year quality guaranty. Lifetime maintenance free of charge.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
