Home > Products > CNC laser machine > FLDJ 1325 co2 laser cutting machines for wood mdf

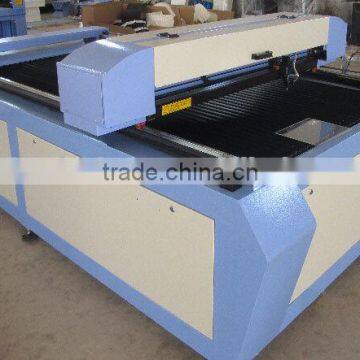

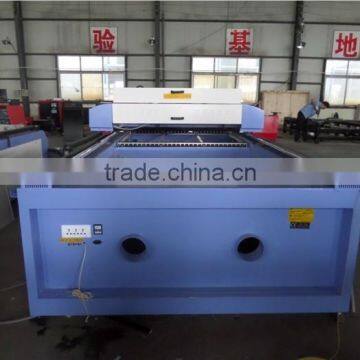

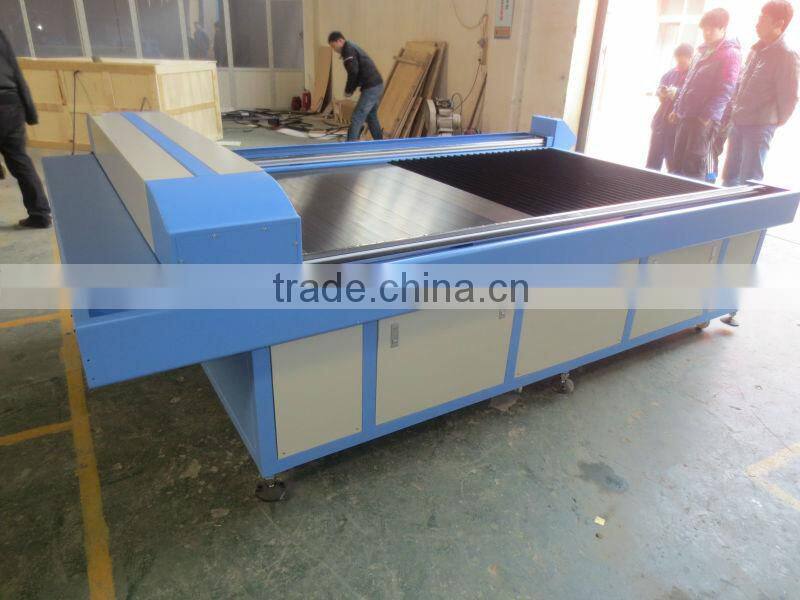

FLDJ 1325 co2 laser cutting machines for wood mdf
- 200 Set / Sets per Month
- Qingdao
- T/T
- DANAPR UV laser marking machine price F215
- DANAPR China UV Laser Marking Machine
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 1300*2500mm |
Engraving Speed: | 0-60,000mm/min | CNC or Not: | Yes | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, PLT | Place of Origin: | Shandong, China |
Brand Name: | PHILICAM | Model Number: | 1325 | Dimension(L*W*H): | 11000mm*700mm*600mm/39in*27in*24in (L*W*H) |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
FLDJ 1325 co2 laser cutting machines for wood mdf
Features
1.High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is more stable than the traditional type,and the life time of the laser tube can be over 10000 hours.
2.Compared with the ordinary laser machine,the series adopts more scientific design and high strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from dsitortion during long term work.
3.The humanized and mordem appearance shows Lifan Machinery consistent humanity idea,and it also makes the operation and maintenace quite easy

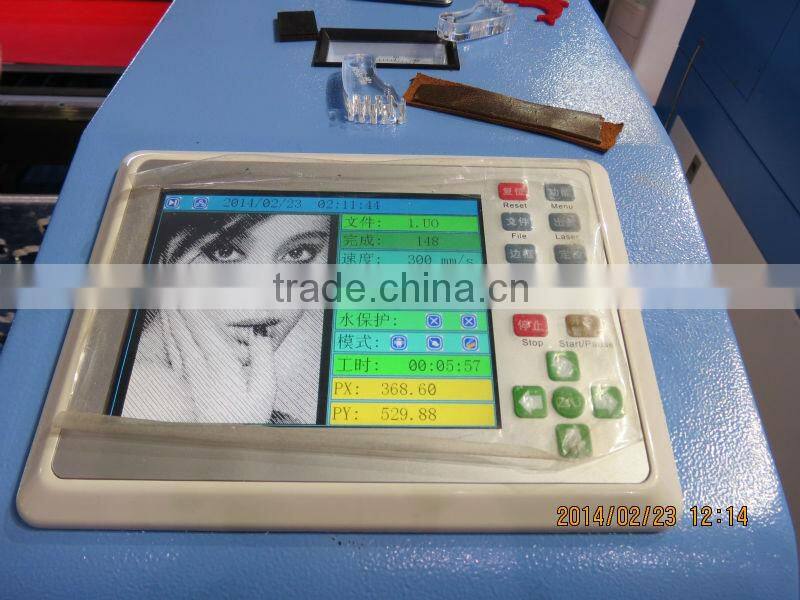

4.Advanced DSP control system,professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
Parameters :
NO. | Description | Parameter |
1 | Engraving area | 1300*2500mm |
2 | Laser power | 80W |
3 | Table | Blade table |
4 | Drive system | Leadshine motor and driver |
5 | Dust collector | 550W |
6 | Air pump | ACO-009 |
7 | Water pump | 4m head delivery |
8 | Water protection switch | with |
9 | Tool box | Standard |
10 | Engraving speed | 0-60000mm/min |
11 | Engraving Depth | 0-3.5mm |
12 | Minimum shaping character | " Chinese: 2×2mm English: 1×1mm" |
13 | Resolution ratio | 0.025mm |
14 | Power supply | 220v ,2 phase,50Hz |
15 | Resetting positioning accuraIT | <0.01mm |
16 | Number of hanged line | 68Line |
17 | Gross Power | 1.6Kw |
18 | Operating temperature | 0-45°C |
19 | Operating humidity | 5-80%(free of condensed water) |
20 | Graphic format supported | BMP,HPGL(PLT),JPEG,GIF,TIFF,PCS,TGA |
Our warranty:
#Warranty: 1 year
#Replace all parts for free during the warranty period(no human damage)
# Provide technical services to the door (We have professional engineers to offer machine installation, commissioning and maintenance)
# 24 th technology online support (Skype,Yahoo,MSN)

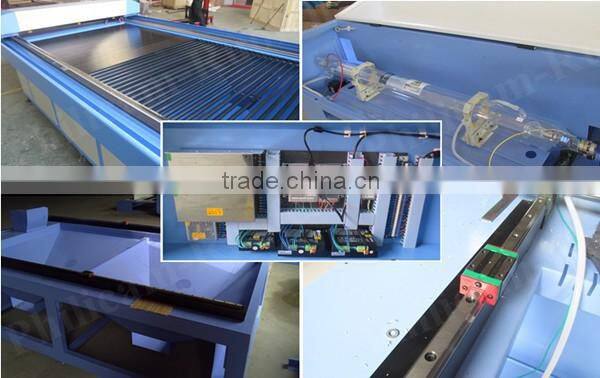

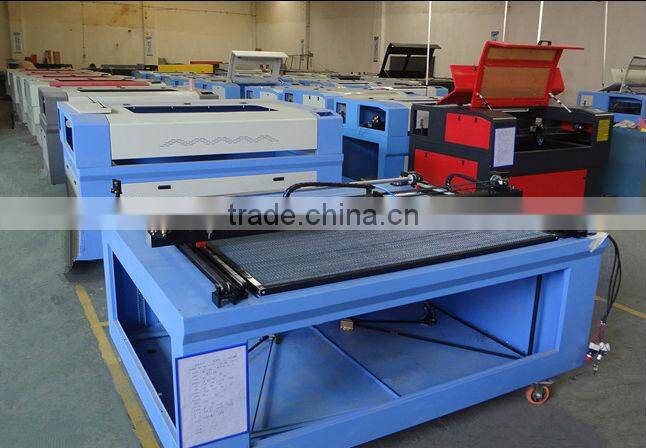

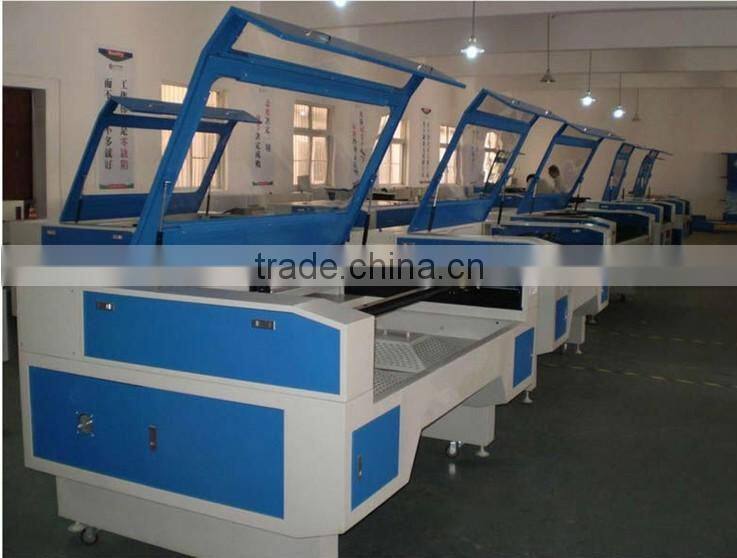

Machine part:
Samples:
Hot sale:

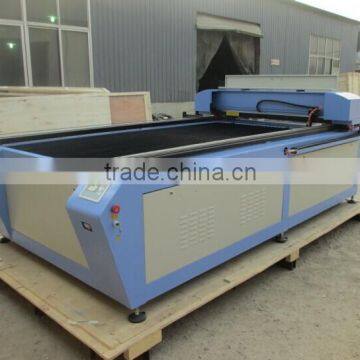

Packing parts
anything need I help, please contact me
skype and mail :export001(@)
whatsapp and phone number :+86-18615250502
Contact Us
- Jinan Ruofen Laser Machinery Co., Ltd.
- Contact nameGrace Dong
- Phone86-531-82367598
- AddressRm. 519, Mingfu Bldg., Hangyun Road, Licheng Dist.
