Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price

Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-1
Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-2
Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-3
Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-4
Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-5
Philicam 1325 Laser Engraver 150w / Paper Wood Laser Cutting Machine Price photo-6
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300mm*2500mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Engraving Area 1300mm*2500mm
Engraving Speed 1-8000mm/min
CNC or Not Yes
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Stone, Wood
Graphic Format Supported AI, BMP, DST, DXF, PLT
Place of Origin Shandong, China
Brand Name PHILICAM
Model Number RFE1325-80W
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price



Why our product better than other similar product?



  • CE Certification, ISO9001 Quality Certification.

  • USB Interface, U-Flash Disk Supported, Machine will read files from memory stick,you can work even without a PC.

  • Smooth and Precise Engraving and Cutting.

  • Manual up/down table.

  • Red Dot Pointer.Provides a visible means of determing engraving location.

  • Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.

  • Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

  • Adjustable Speed and Power. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

  • Exhaust Fan system included.

  • Reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

  • Cylinder Rotary Attachment, Engrave any cylindrical object.Process the cylinder object such as cup, brush pot, musical instrument and so on.

  • Engrave almost anything(except metal) on almost any surface.

  • 12 months free warranty and life time free maintenance service.



 The features:

  1. Touched following system designed by Ruofen one of key elements to successfully cut die board. Touched following system can automatically senses the distance from cutting head to die board being cut and then adjust the focal position to keep a good cutting quality.
  2. FLDJ 1325 is equipped with upward and downward exhausted-air blower system. The upward system is located on the side of cutting head. When the cutting head moves, the upward system is following to exhaust the smoking from materials. The combination of upward and downward blower system can totally discharge smoking and fume.
  3. In order to protecting the ball screw from contaminated and rusted, ball screws are sealed, which makes sure ball screws and the machine long operating life.
  4. The combination of Mitsubishi servo system and ball screw guarantees high precision, high efficiency and running stable.
  5. Computer-off controlling system is convenient for you to control machine during working.

The applications:

  • The series of machine is suitable to art gift,advertisement decoration,toy,electron element,cutting of template,paper product,stamp and other industries, such as bamboo,paper,plexiglass,acrylic,marble,jade,crystal.Also can cut acrylic sheet,paper and so on

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price





The Parameters



Model

FLDJ 1325

Engraving and Cutting Area

1300*2500mm

Tube type

CO2 sealed glass tube

Laser wave

10.6um

Laser Power

80w ( optional :100w,130W,150W )

Cooling

CW3000 water chiller

Engraving Speed

0-75,000mm/min

Cutting Speed

0-40,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

4,000 dpi

File output mode

2.0 USB interface

Machine Power

<2,000W

Support Format and Software

PLT,DST,DXF,DWG.CDR,AI, Auto CAD, Coreldraw,

Photoshop, laser cut 5.3

Working Environment Temperature

0-45°C

Drive system

Leashine Stepper motor

Control system

Ruida DSP offline control system

Exhaust smoke system

550w exhaust fan

Working Voltage

220V,50HZ/60HZ

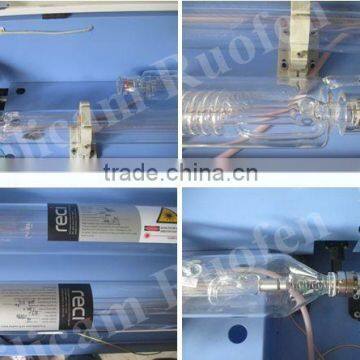

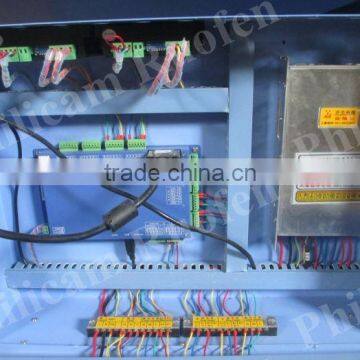

 The machine parts

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

FOR ALL OF OUR CLIENTS



There are many new brand name of similar item in the market recently, although their price are really cheap, but the quality of their products are also terrible:



1. All our item has passed CE quality certification



2. Have a visit to our factory,you are welcomed whenever.



3. You can purchase a high quality and safety machine, but please don't waste the money for a cheaper but a low quality machines. We only sell top-quality item.



4. We seek a good relationship with the supplier, so that we can get the stable and reliable cooperation with our client.





Shipping&Payment:



Now we charge 30% as deposit before producing and banlance before shippment.



We support Alibaba Escrow and T/T payment terms



All items will be shipped 7-14workdays

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price





Technical Support:



We have a professinal technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.

Philicam 1325 laser engraver 150w / paper wood laser cutting machine price

please do not hesitate to contact me

skype and mail :export001(@)

whatsapp and phone number :+86-18615250502
