JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min thumbnail-1
JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min thumbnail-2
JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min thumbnail-3
JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min thumbnail-4
JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min photo-1

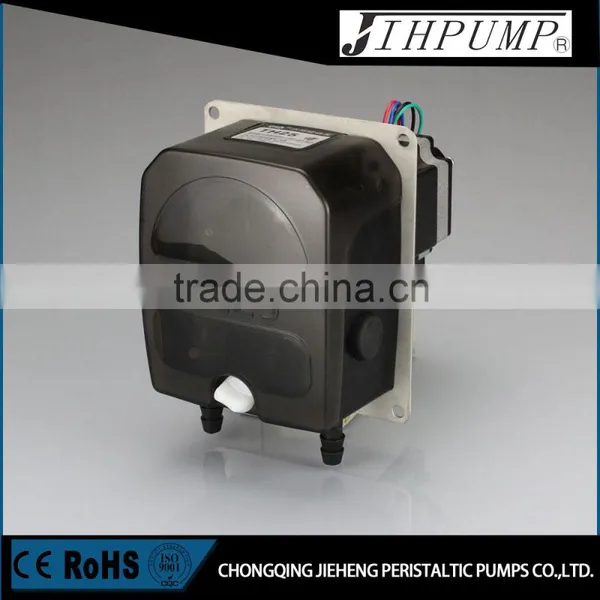

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min photo-2

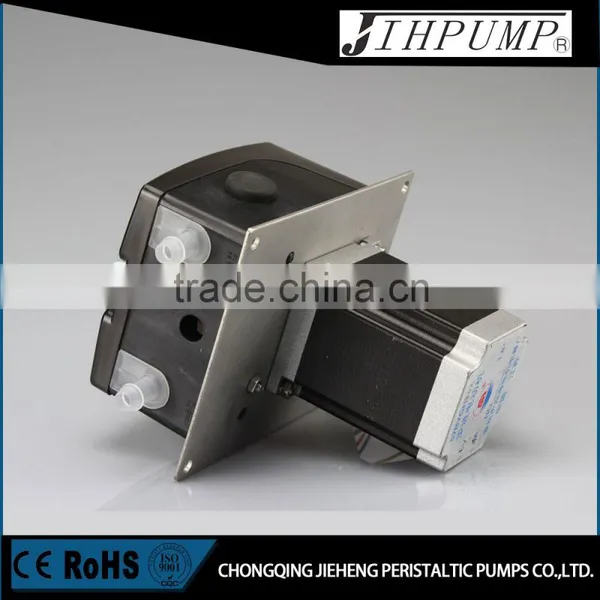

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min photo-3

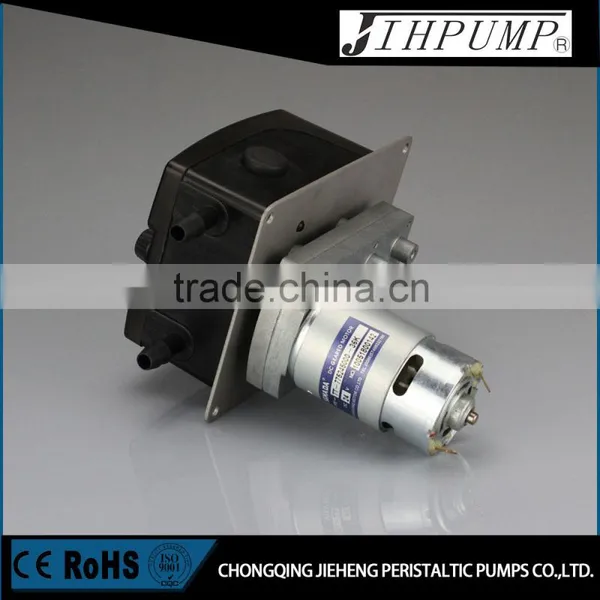

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min photo-4
US$ 50 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JIHPUMP
Model Number:
TH25
Contact Supplier Request Quote Chat Now
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name JIHPUMP
Model Number TH25
Theory Rotary Pump
Structure Other, Peristaltic pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electricity
Pressure Low Pressure
Application Metering

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

Application
 1. Pharmaceutical Machinery:Granulation machine,Drying equipment,Coating Machine etc.
 2. Environmental protection machinery:Environmental protection machinery and water treatment equipment

     circulation or add drug
 3. Packing Machinery:Filling machine
 4.  Food Machinery:Juice or coffee machines
 5.  Printing Equipment:Delivery Ink

Feature
1. Max flow rate 3400ml/min,max speed 300rpm
2. Large rotor with advanced structural design,more stability,longer hose life
3. Suitable for 24#,35#,36# etc tube,max inner diameter 9.6mm
4. The pump cover and pump housing is intensify design,strong,weathering resistance and chemical

    resistance,closed-end pump head meet GMP and FDA requirement.
5. Can equipped with AC synchronous gear motor,DC gear motor,brushless DC motor and stepper motor to meet

    the long life low noise operation

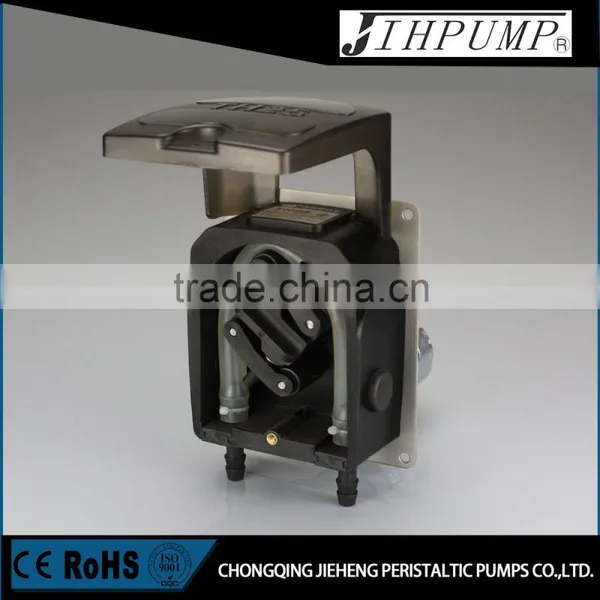

6. Easy to load tube or install pump head
7. Transparent pump cover,observe the pump operation more clearly.
Specification

Item

TH25/ZL(DC motor)

TH25/BT(stepper motor)

TH25/JL(AC motor)

Picture JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

Speed

135,166(r)

0~200r(Space operation 300r)

 200r(space operation 300r)

Tube

Fit with 2.4mm thickness tube,inner diameter up to 9.6mm,pressure tube space can be fine-tune

24#,35#,36#

Flow Rate

Max 1900ml/min

0-2266ml/min(space operation 3400ml/min)

0-2266ml/min(Space operation 3400ml/min)

Roller

Pressure tube space and outlet pressure can be adjusted.

Power

5-18W

30-50W

25W
Motor Type DC gear motor  Stepper motor(Drive in optional) AC gear motor(With governor or iverter)

Voltage

DC:12V,24V

DC:6~24V

AC:220V,380V in optional
Weight  1.15Kg  1.55Kg  2.85Kg
Picture JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

 JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min
Mounting Type

 Mounting Panel

 Mounting Panel

 Mounting Panel or mounting bracket in optional
Mounting support

JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min



Flow Rate (ml/min,Media:Water)
Tube

24#

35#

36#
ID×wall (mm)

6.4×2.4

7.9×2.4

 9.7×2.4

3.8rpm

21

30

48

11rpm

62

80

118
47rpm

245

322

495

67rpm

347

465

690
100rpm

530

700

1100
120rpm

690

900

1450

166rpm

904

1179

1900

200rpm

1060

1400

2200
300rpm Stepper Motor

1600

2100

3400
300rpm AC motor

1575

2300

3600

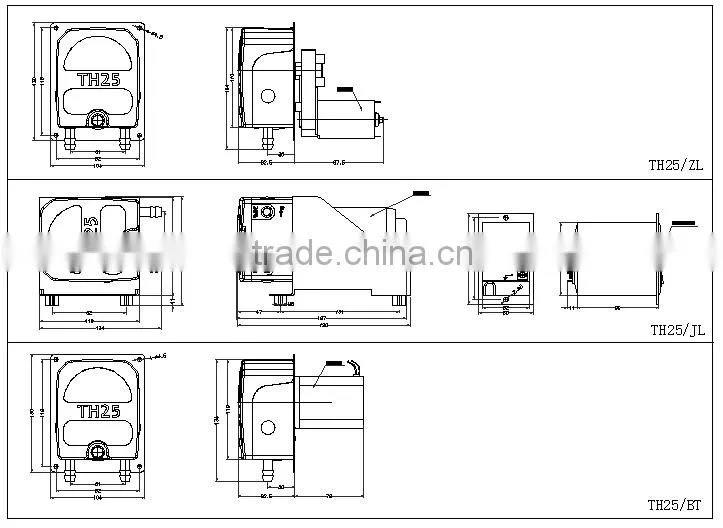

Dimension

 JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min



 JIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/minJIHPUMP Quick Install Panel Type OEM Peristaltic Pump of Flow Rate 3600ml/min
