Product Description
The model PT124B-3051DG(DA) differential gauge/absolute pressure transmitter can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC signal corresponding to the measured pressure differential. The model PT124B-3051DG(DA) also features remote setup and monitoring though communication with the model 375 TERMINAL or RSM100 Modem.
Advantages
Adopts global leading high precision silicon transducer technology
Accuracy +/-0.075%
Advanced stability and static pressure performance, error less than +/-0.1%/10MPa
Internal integrated high sensitivity temperature transducer, with perfect thermal drift
All SS316L welding sealed construction with silicon filled
Product Parameter
Medium |
Gas, steam, liquid |
Measurement range (Non migration) |
0-0.2KPa-1Kpa |
Accuracy |
+/-0.075%, +/-0.1%, +/-0.25% |
Wetted parts material |
SS316L, Hastelloy C |
Output |
2-wire 4-20mA, HART communication optional, linear output or square root output available |
Ambient temperature limited |
-40~85℃ -20~65℃ (with LCD display, fluorine rubber Oring)
|
Protection grade |
IP67 |
Electrical connector |
M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
Process connector |
1/4NPT female and 7/16 female on the cover flanges |
Mounting position effect |
Rotation in diaphragm plane has no effect. Tilting up to 90°will cause zero shift up to 0.4KPa, which can be corrected by the zero adjustment. |

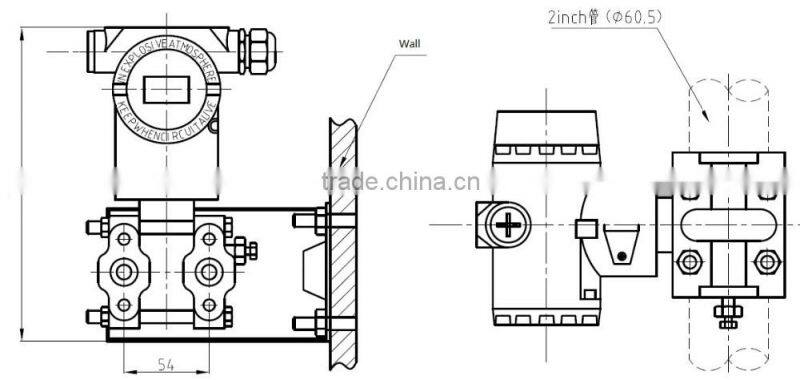

Profile
Electrical connector
Process connector
Factory Show
Product Application
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
Technical Team
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
Quality Control
Customer Photo
Packaging Process
Our Service
