3.33mV/V Output Pressure Sensor for Extruder

Shanghai Zhaohui Pressure Apparatus Co., Ltd.
3.33mV/V Output Pressure Sensor for Extruder thumbnail-1
3.33mV/V Output Pressure Sensor for Extruder thumbnail-2
3.33mV/V Output Pressure Sensor for Extruder thumbnail-3
3.33mV/V Output Pressure Sensor for Extruder thumbnail-4
3.33mV/V Output Pressure Sensor for Extruder thumbnail-5
3.33mV/V Output Pressure Sensor for Extruder thumbnail-6
3.33mV/V Output Pressure Sensor for Extruder photo-1
3.33mV/V Output Pressure Sensor for Extruder photo-2
3.33mV/V Output Pressure Sensor for Extruder photo-3
3.33mV/V Output Pressure Sensor for Extruder photo-4
3.33mV/V Output Pressure Sensor for Extruder photo-5
3.33mV/V Output Pressure Sensor for Extruder photo-6
US$ 100 - 599 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124G-123
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124G-123



Product Description

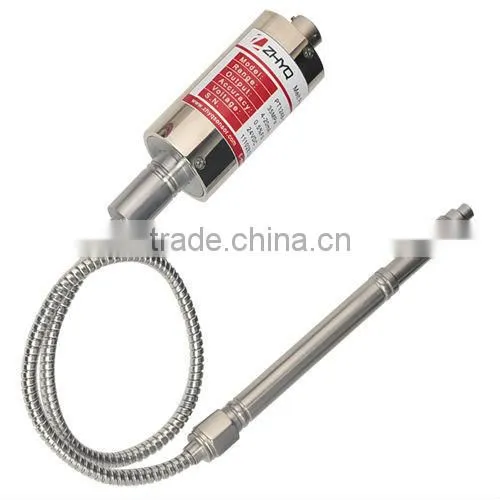

3.33mV/V output pressure sensor for extruder



PT124G-123 is 3.33mV/V output pressure sensor for extruder , this series is 3.33mV/V output , 0.5% accuracy flexible stem melt pressure transducer ,is widely used in both domestic and abroad.This melt pressure transducer can be utilized together with the N Series Intelligent Digital Pressure Instrument. Zero & full span can be adjustable,  the melt pressure transducer of PT124G-123 welding with amplify circuit can be change to PT124B-123 , the signal be connected with PLC directly , this series melt pressure transducer with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. high accuracy ,international standard output , and can replace Dynisco ,Gefran ,GP50 absolutely .



Feature

Stainless steel welding,Easy to install

Zero and span adjustable

Various amplified signals optional

Internal 80% shunt calibration

Good stability and anti-jamming capability

Excellent stability and repeatability

High accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely.



Application

Chemical fiber Equipment

Polyester  and Rubber manufacturing equipment

Medicine & Food process equipment

Blown Film Machine; Plastic extrusion machinery

Measurement and Control all kinds of melt fluid



Specification

Name

3.33mV/V output pressure sensor for extruder

Model

PT124G-123

Pressure range

0-35Bar...0-1500Bar  (0-500psi…20000psi)

Over Pressure

1.5 X FSO

Combined Error

± 0.5% FSO; ±0.25% FSO (Including Linearity, Repeatability & Hysteresis)

Output

3.33 mV/V, 2mV/V

Input Voltage

10VDC

Repeatability

+/- 0.2%FSO

Bridge Resistance Input

345 Ohms minimum

Bridge Resistance Output

350 Ohms +/- 10%

Internal Shunt Calibration (R-Cal)

80% FSO +/- 1%

Insulation Resistance

200 megohms @ 100 Vdc

Max Diaphragm Temperature

400°C / 750°F

Mounting Torque

500 inch/lbs. max.

Standard Wetted Parts

Diaphragm coated 15-5 PH SST

Rigid stem length

6 inch, 9inch  others available on request

Flexible stem length

18 inch, others available on request

Electrical connector

6PINS, 5PINS.

Process connector

1/2″-20UNF, M14×1.5, M18×1.5 Optional


3.33mV/V output pressure sensor for extruder

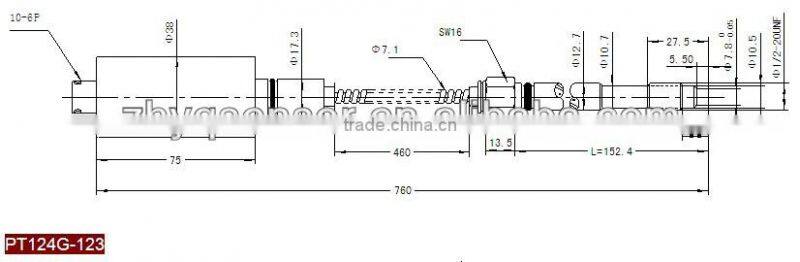

Dimension

3.33mV/V output pressure sensor for extruder



Order Guide: with "* "are required , with "---"is optional



Model

Range

(bar)

Output

Rigid/Flexible length (inch)

Screw Thread

Electric connection

Accuracy

Other requirement

PT124G-123

*

*

*

*

*

*

---

Example:PT124G-123-500Bar-3.33mV/V -6”/18"-1/2-20UNF-6PIN-0.5%FS



This 3.33mV/V output pressure sensor for extruder can matching with our N series Intelligent Digital Indicator to local display the pressure .



3.33mV/V output pressure sensor for extruder

Factory Show

3.33mV/V output pressure sensor for extruder

Product Application

3.33mV/V output pressure sensor for extruder

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.

Quality Control

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.

3.33mV/V output pressure sensor for extruder



3.33mV/V output pressure sensor for extruder

Customer Photo

3.33mV/V output pressure sensor for extruder

Packaging & Shipping

3.33mV/V output pressure sensor for extruder

Our Services

3.33mV/V output pressure sensor for extruder

FAQ

3.33mV/V output pressure sensor for extruder
