Description:
PT124B-122T is flexible silicon oil filled melt pressure sensor with J thermocouple for food extruder , this series is oil filled Melt Pressure sensor (Steel stem & Sanitary), designed with rigid stem and flexible stem and with thermocouple which can measure the pressure and temperature in one point. this melt pressure sensor filled with environment, avirulent medium slicon oil. If the melt pressure sensor diaphragm damaged during process, the leaking medium is no harm to the human body or ambient.it can achieve the pressure measuring and has the wide application in Medicine & Food process equipment,drinking water environmental monitoring. all our oil filled melt pressure sensor has the wide application in China, with the advantage of precision and reliable pressure measuring and high-standard quality.
This series melt pressure sensor PT124G-122T welding with amplify circuit can be change to PT124B-122T , output signal is standard , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. also can replace Dynisco / Gefran products absolutely .
Feature
all our melt pressure sensor are Stainless steel welding
Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repetition
filled with environmental, avirulent silicon oil medium, no harm .
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment ,
Drinking water environmental monitoring occasion
Other pressure measurement and Control
Specification
Name |
flexible silicon oil filled melt pressure sensor with J thermocouple for food extruder |
Model |
PT124B-122T |
Pressure range |
0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V ,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
5PIN, 6PIN optional |
Thermocouple Type |
J.K.E.PT100 optional |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5 Optional |

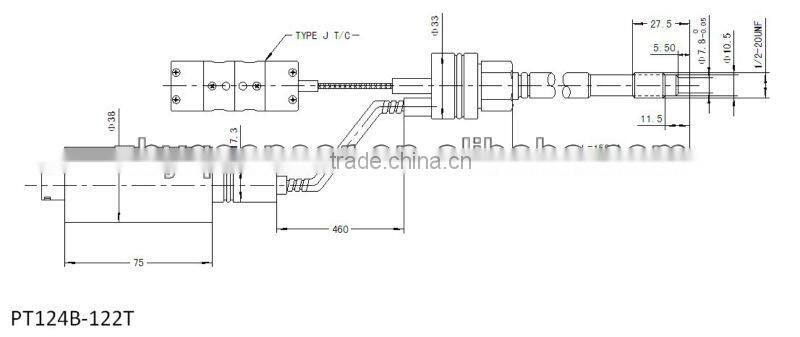

Dimesion
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124B-122T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-122T-500Bar-4-20mA -6/18”-1/2-20UNF-J-5PIN-0.5% | ||||||||
This flexible silicon oil filled melt pressure sensor with J thermocouple for food extruder can matching with our N series to local display the pressure and temperature
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
