Description

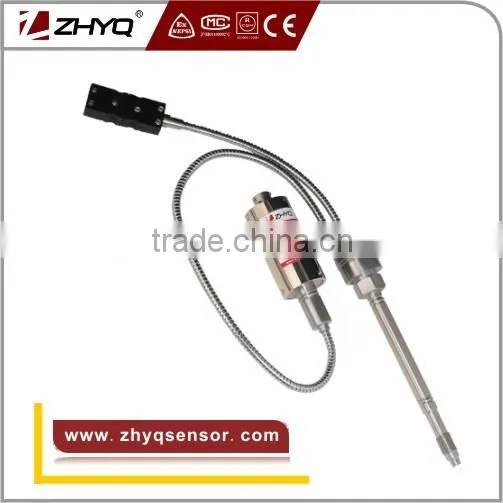

PT124G-123T is 3.33mv/V output pressure sensor for extruder with J thermocouple , this series flexible Melt Pressure Transducer with thermocouple , it can measure the pressure and temperature in one point. is widely used in both domestic and abroad.This melt pressure transducer can be utilized together with the N Series Intelligent Digital Pressure Instrument and Zero & full span can be adjustable, the melt pressure transducer of PT124G-123T welding with amplify circuit can be change to PT124B-123T , the signal be connected with PLC directly , all our pressure transducer with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
flexible melt pressure transducer , Stainless steel welding , Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
high accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely .
can measure the pressure and temperature in one point
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
Specification
Name |
3.33mv/V output pressure sensor for extruder with J thermocouple |
Model |
PT124G-123T |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 0.5% FSO; ±0.25% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
3.33 mV/V, 2mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400°C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
6PIN connector |
Thermocouple type: |
J,K,E,PT100 Optional |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124G-123T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124G-123T-500Bar-2mV/V -6/18”-1/2-20UNF-J-6PIN-0.5% | ||||||||

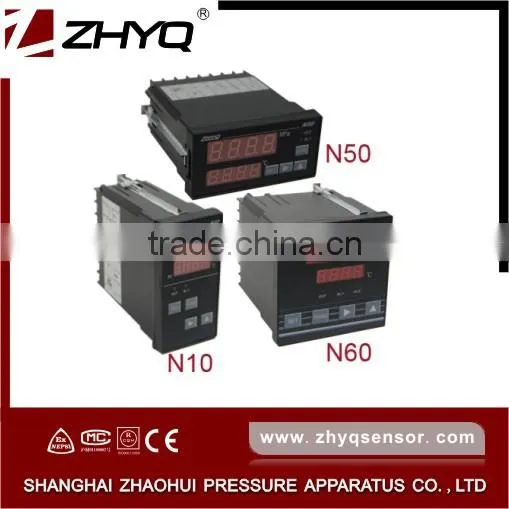

This 3.33mv/V output pressure sensor for extruder with J thermocouple can matching with our N series Intelligent Digital Indicator to local display the pressure and temperature at the same time .
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
