Specifications
40 ton weighing scale1.high precision
2.light weight
3.10/20/40 ton rated load
4.CE, ISO9001 certified
IP68 standard 40 ton weighing scale
Description

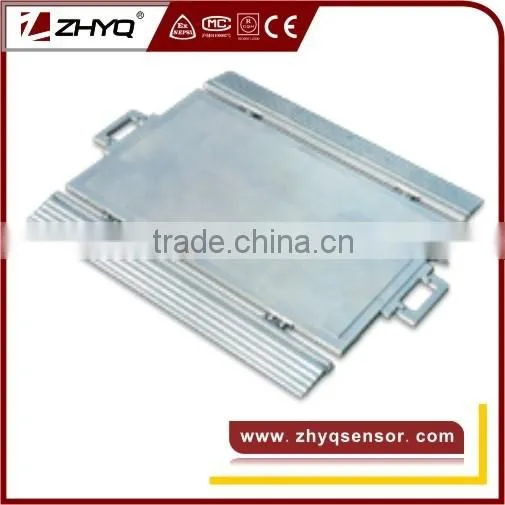

ZH180A is made of aluminum alloy, and it is ultra thin, light and portable. Also the slope is made of aluminum, and it can be easily mounted or uncounted. With full sealed technology it can meet EU IP 68 standard.
One ZH180A can statically or dynamically measure wheel weight, so double is parallelly connected to measure axle weight. And the instrument, which is connected, calculate the vehicle weigh.
Parameters
Rated load: | 10t / 20t / 40 tonweighing scale |
Rated output: | 0.9±0.1mv/v |
Repeatability: | 0.05%FS |
Error on corners: | 0.2%FS |
Zero balance: | ≤1%FS |
Static comprehensive error: | 0.1~0.5%FS |
Dynamic comprehensive error: | 1.5%FS(1~5km/h)/ 3~5%FS(5~10km/h) |
Ultimate overload: | 150%FS |
Non-linearity: | 0.2%FS 40 tonweighing scale |
Use temp.range: | -30~80℃ |
Compensated temp.range: | -10~50℃ |
Temp.effect on span: | 0.03%FS/10℃ |
Temp.effect on zero: | 0.05%FS/10℃ |
Output resistance: | 700/560/467Ω |
Defend grade: | IP 68 40 tonweighing scale |
Recommended voltage: | 10V |
Excitation voltage: | 9~15V |
Net weight: | 20kg(20t)/30kg(40t) |
Max load of 1/4 weigh bridge: | 6t/8t/10t |
Full load: | 10t/20t/40t |
Dimension of the surface: | 719x419mm/899x499mm |
Insulation resistance: | ≥5000MΩ(100VDC) |
Remark: Four-core shielded cable is attached: φ5.5x10m | |
Price, Service and Package
1. Our quotations are always valid for you if there is no world market unrest.
2. Your inquiries will be replyed in the shortest time.
3. All goods will be fully checked by our QC before delivery.
4. We offer 1 year warranty for all of our products.
5. Package: The goods will be put into the packing box with instructions and quality certificate quality first ,then we pack them into the box with polystyrene foam to avoid damage of the products.
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
Reasons for choosing us
1. various types for your selection
2. professional enough to accept OEM/ODM service
3.factory produce directly, fast delivery time
4.CE and ISO9001 certified
5.1 year warranty and good customer service
