Specifications
axle weighing scale1.high precision weighing scale
2.light weight
3.20 ton rated load
4.CE, ISO9001 certified

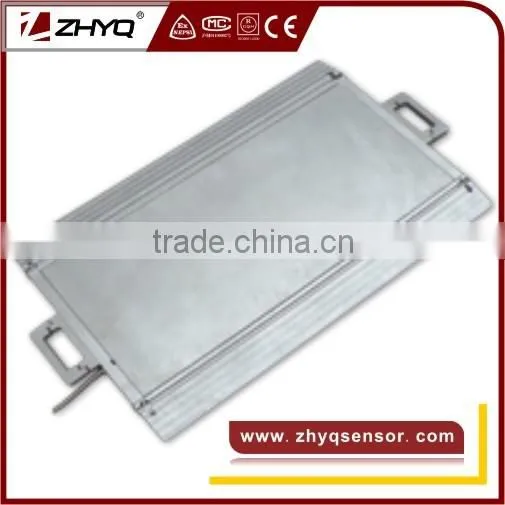

Axel weighing scale with special dynamic meter
Description
ZH180EB is made of aluminum alloy, and it is ultra thin, light and portable. It is widened the surface, so that the test will be more exact, more convenient. And it is combined the slope and the pad together, and it is net weight is 23kg, so it is more convenient and portable. With the special dynamic meter, it can measure every vehicle for high-precision dynamic test.
One ZH180EB can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight.
Parameters
Rated load: 20t
Rated output: 0.7±0.1mv/v
Repeatability: 0.05%FS
Error on transverse: 0.2%FS
Zero balance: ≤1%FS
Static comprehensive error: 0.12~0.5%FS
Dynamic comprehensive error:
1.5%FS(1~5km/h)/ 3~5%FS(5~10km/h)
Non-linearity: 0.2%FS
Use temp.range: -30~80°C
Compensated temp.range: -10~50°C
Temp.effect on span: 0.03%FS/10°C
Temp.effect on zero: 0.05%FS/10°C
Output resistance: 1000±3Ω
Defend grade: IP 67
Ultimate overload: 150%FS
Recommended voltage: 10V
Excitation voltage: 9~15V
Net weight: 23kg
Max load of 1 /4 weigh bridge: 8t
Full load: 20t
Dimension of the surface:
800×350mm
Insulation resistance:
≥5000MΩ(100VDC)
Remark: Four-core shielded
Cable is attached: φ5.5×10m
(The cable length can be changed according to customer's request)
