Specifications
portable axel weighing scales1.high precision weighing scale
2.light weight
3.CE, ISO9001 certified

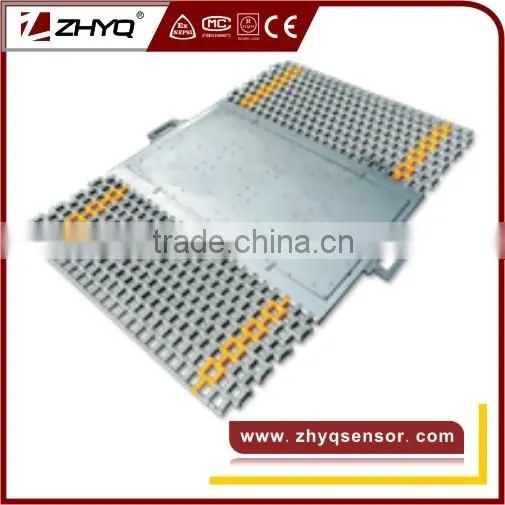

Ultra light and portable axel weighing scale
Description
ZH180F is made of aluminum alloy, and it is ultra thin, light and portable. Compared with other products, the foldable plastic slope greatly improve measuring dynamic accuracy.
One ZH180F can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight.
.
Features:
It is made of aluminum alloy, and it is ultra thin, light and portable.
Compared with other products, the foldable plastic slope greatly improve measuring dynamic accuracy.
The net weight is 38kg, and the length of weight-bridge is changed to 800mm from 700mm.
One ZH180F can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight.
Parameters
Rated load: 20t portable axel weighing scales
Rated output: 0.9±0.1mv/v
Repeatability: 0.05%FS
Error on transverse: 0.1%FS
Zero balance: ≤1%FS portable axel weighing scales
Static comprehensive error: 0.1~0.5%FS
Dynamic comprehensive error:
1.0%FS(1~5km/h) 3~5%FS(5~10km/h)
Non-linearity: 0.2%FS portable axel weighing scales
Use temp.range: -30~80°C
Compensated temp.range: -10~50°C
Temp.effect on span: 0.03%FS/10°C
Temp.effect on zero: 0.05%FS/10°C
Output resistance: 1000±3Ω
Defend grade :IP 66/IP 68
Ultimage overload: 150%FS
Recommended voltage: 10V
Excitation voltage: 9~15V
Net weight: 38kg
Max load of 1 /4 weigh bridge: 8t
Full load: 20t
Dimension of the surface:
882×500mm
Insulation resistance: ≥
5000MΩ(100VDC)
Remark: Four-core shielded
cable is attached: φ5.8×10m
(The cable length can be changed according to customer's request)
