Specifications
weighing scale for cars1.high precision weighing scale
2.light weight
3.2 ton rated load
4.CE, ISO9001 certified

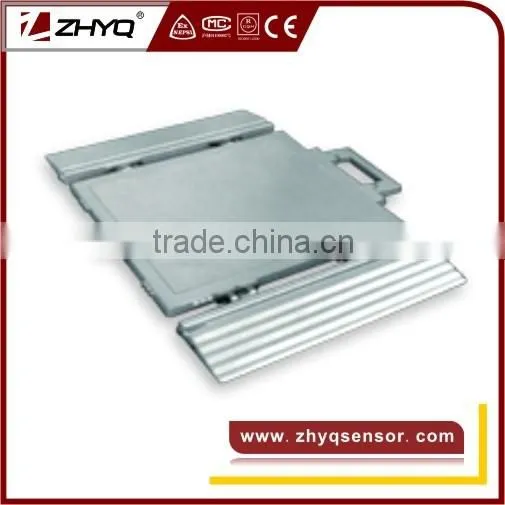

High accuracy weighing scale for little electrical cars
Description
ZH02B1 is made of aluminum alloy, and it is ultra thin, light and portable. Also the slope is made of aluminum alloy ,and it is can be easily mounted or uncounted. With full sealed technology it can meet EU IP 68standard. The weighing bridge is as small as A3 paper.
One Zh02B1 can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight. ZH02B1 can be widely used in measuring the weight of motorcar, auto car and little electrical bicycle.
Parameters
Rated load: 2t
Rated output: 1.0±0.1mv/v
Repeatability: 0.05%FS
Error on transverse: 0.2%FS
Zero balance: ≤1%FS
Static comprehensive error: 0.1~0.3%FS
Dynamic comprehensive error:
1.5%FS(1~5km/h) 3~5%FS(5~10km/h)
Non-linearity: 0.2%FS
Use temp.range: -30~80°C
Compensated temp.range: -10~50°C
Temp.effect on span: 0.03%FS/10°C
Temp.effect on zero: 0.05%FS/10°C
Output resistance: 400±5Ω
Defend grade : IP 66
Ultimage overload: 150%FS
Recommended voltage: 10V
Excitation voltage: 9~15V
Net weight: 8kg
Max load of 1 /4 weigh bridge: 1t
Full load: 2t
Dimension of the surface:
359×289mm
Insulation resistance:
≥5000MΩ(100VDC)
Remark: Four-core shielded
cable is attached: φ5.5×3m
(The cable length can be changed according to customer's request)
Factory show
