Air-condition Pressure Transmitter

Specifications

Air-condition pressurer transmitter
High performance and stability
Compact configuration
OEM design optional
Prompt delviery

Air-condition Pressure Transmitter

Model: PT124B-233

 Description

The PT124B-233 series air-condition pressure transmitter adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling. This series can replace the similar type of other products, and it can meet the requirement of various compressors and refrigeration equipments.





Application

Laboratory test apparatus

Agricultural chemical equipment

Refrigeration and HVAC systems

Hydraulic system

Gas tank pressure monitoring

Coolant pressure



Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeatability/Hysteresis

Special design for customer

Many OEM options



Specification

Range	-1~0~800bar
Accuracy	0.25%FS, 0.5%FS;1%FS
Linear	0.02%FS
Reliability	0.05%FS
Output	0.5-4.5V;0-5V ;1-5V;4-20mA
Input Voltage	24(5-36V)DC
Operation Temperature	-10°C~125°C
Compensation Temperature	-10~70°C(Standard compensation)
Over Pressure	150%FS
Housing material	316LSS
Electric Connection	Packard connector
Process Connection	Z1/4, 1/4NPT, 1/8NPT (Optional)

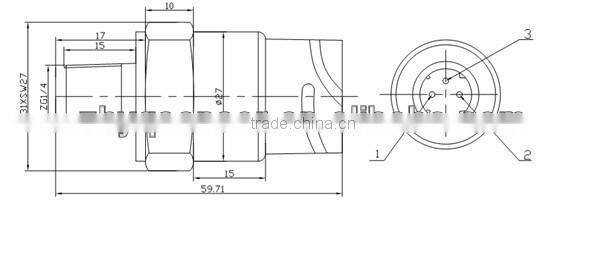

Dimensions

Ordering guide

Model	Range	Output	Process Connection	Electric Connection	Other requirement
PT124B-231	*	*	*	*	--
Example: PT124B-231-16Bar-4/20mA-7/16F-Packard connector



 Remarks: Please make * is necessary, and -- optional.
