Specifications
Air compressor pressure transmitterSuitable for vartious air compressor
High stability
Economic price
Fast delivery

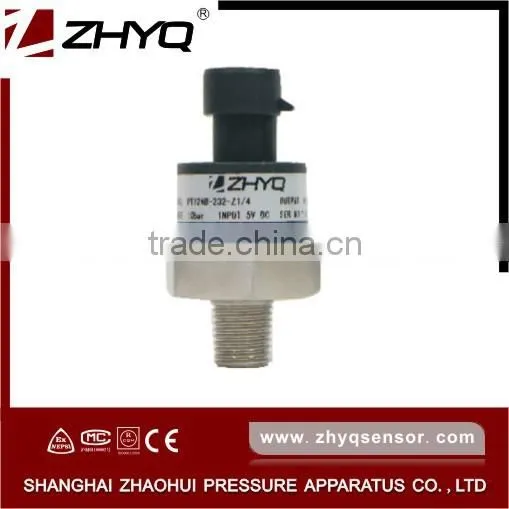

Air compressor Pressure Transmitter for atlas compressor
Model: PT124B-232
Description
The PT124B-232 series Air compressor Pressure Transmitter adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling. This series can replace the similar type of other products, and it can meet the requirement of various compressors and refrigeration equipments
Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure
Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
Specification
Range |
0….1bar to 0….60bar |
Accuracy |
0.25%FS, 0.5%FS;1%FS |
Linear |
0.02%FS |
Reliability |
0.05%FS |
Output |
0.5-4.5V;0-5V ;1-5V;4-20mA, |
Input Voltage |
24(5-36V)DC |
Operation Temperature |
-10°C~125°C |
Compensation Temperature |
-10~70°C(Standard compensation) |
Over Pressure |
150%FS |
Housing material |
316LSS |
Electric Connection |
Packed connector |
Process Connection |
Z1/4, 1/4NPT, 1/8NPT (Optional) |
Dimensions
Ordering guide
Model |
Range |
Output |
Process Connection |
Electric Connection |
Other requirement |
PT124B-232 |
* |
* |
* |
* |
--- |
Example: PT124B-232-50Bar-4/20mA-G1/4-Packard connector | |||||
Price, Package and Service
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, Port: Shanghai.
5, Payment: T/T.
6, OEM available
7, Delivery time is 7-10 working days.
8, All goods will be fully checked by our QC.
9, Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
