Help CenterCompact Type Pressure Transducer for Spraying Pump Machine
Related Products
-
With Cooling Slot 4-20mA Explosion Proof Pressure TransmitterUS$ 20 - 120MOQ: 1 Piece -
4-20ma LED Display Explosion Proof Pressure Transmitter With Clamp DesignUS$ 20 - 120MOQ: 1 Piece
-
4-20mA LED Display Flush Diaphragm Explosion Proof Pressure SensorUS$ 75 - 145MOQ: 1 Piece
-
4-20mA Explosion Proof Pressure Transmitter for Hazardous ApplicationUS$ 75 - 145MOQ: 1 Piece
-
SS316L Material 4-20mA LED Local Display Explosion Proof Pressure SensorUS$ 20 - 120MOQ: 1 Piece
The PT124G-211 Compact type pressure transducer for spraying pump machine adopt micro fused Technology. Firing the strain gauge with high temperature micro fused technology under 500℃ high temperature on stainless steel 17-4PH transducer elastomer, which will make out electrical signal after shape changing. Amplified by the microprocessor digital compensation amplifying circuit, full intelligent temperature compensated with digital software. Standard purification production process and parameter strictly controlled, to avoid the affect of the temperature, humidity and mechanical fatigue. With the features of high frequency response and widely operating temperature makes sure the long term stability of the pressure transducers in harsh environments.
Application
Pumps and Compressors
Hydraulic/Pneumatic Systems
Automotive Test Systems
Energy and Water Management
Agriculture – Sprayers and Dusters
Refrigeration – Freon and Ammonia Based
General Pressure Measurements
Feature
One Piece Stainless Steel Construction
Medium to high volumes from 6bar to 6000bar
Better than 0.5% combined error
mV or Amplified or Voltage Outputs
Wide Operating Temperature Range
Specification
Range: |
0-7000psi |
Accuracy: |
0.5%FS |
Zero Offset |
+/-3mV |
Span Output: |
0-118mV +/-3mV |
Input voltage: |
5VDC |
Input resistance |
<9KΩ |
Output resistance |
2~6KΩ |
Material |
17-4PH |
Insulation resistance |
>100mΩ@250V DC |
Operating temperature: |
-20~100℃ |
Compensated temperature: |
0~55℃ |
Overload pressure: |
200%FS |
Electric connector: |
4P4C Registered jack |
Process connector: |
11/16-24UNEF |

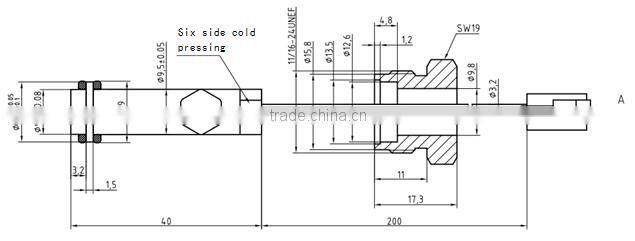

Dimensions
Compact type pressure transducer for spraying pump machine
Wiring
Ordering guide
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124G-211 |
* |
* |
* |
* |
* |
* |
--- |
|
Example: PT124G-211-3000psi-118mV-11/16-24UNEF-4P4C-0.5%-Φ9.5
| |||||||

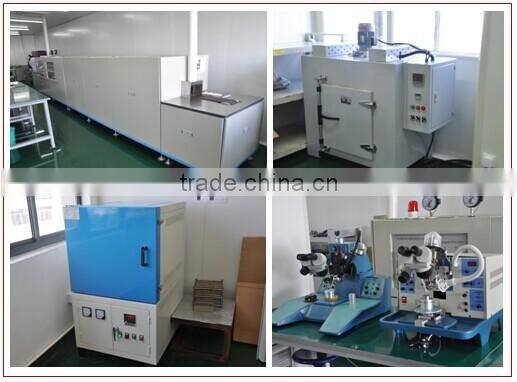

ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
