Specifications
Mechanical melt pressure gauge1.rigid stem, SS structure
2.with local LCD display
3.small orders are available
4.CE&ISO9001

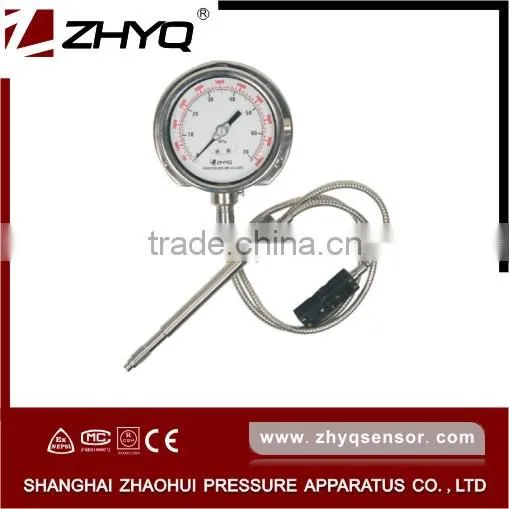

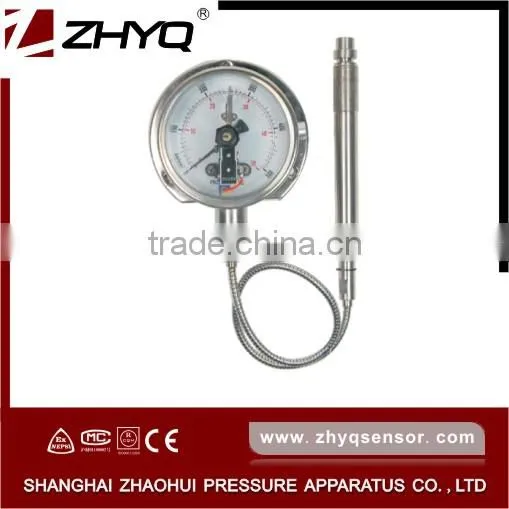

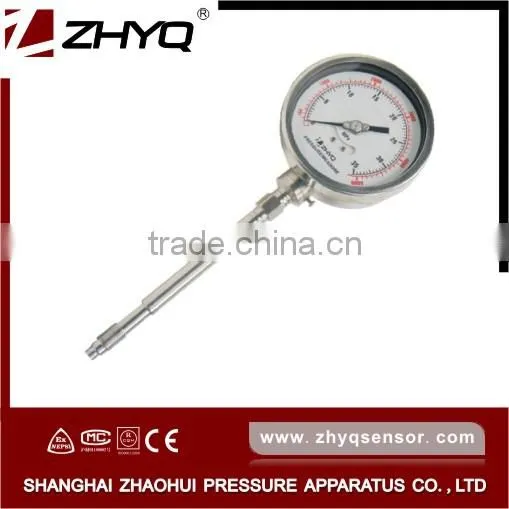

Mechanical melt pressure gauge
Description
PT124Y-612 machanical melt pressure gauge with output
PT124G-612 adopts the original packaging machine core, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing. This model has various signal output optional.
Application
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Feature
With signal output mechanical melt pressure gauge
Stainless steel sealing mechanical melt pressure gauge
Install easily mechanical melt pressure gauge
Zero adjustment melt pressure gauge
High reliability and good repeatability
Specification
Range |
0~100bar~700bar mechanical melt pressure gauge |
Output: |
3.33mv/v,4-20ma, 0-10v |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube mechanical melt pressure gauge |
Over Pressure |
1.5*FS |
Dial Diameter |
100mm mechanical melt pressure gauge |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH mechanical melt pressure gauge |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Process Connection |
M22*1.5;M18*1.5,M14*1.5(Optional) |
Dimension
Ordering guide
| Model | Range(bar) | Snout | process connection | Other requirements |
| * | * | * | * | … |
| Example:PT124Y-612-350Bar-3.33nV/V-6"-1/2-20UNF-6Pin | ||||
| Notes: * is required, … is optional | ||||
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Moneygram.
4. How about the usual delivery time?
We will send goods to you within 10 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
