Specifications
Melt Pressure Gauge with local reading1.all stainless steel material
2.isolated diaphragm
3.CE, ISO9001

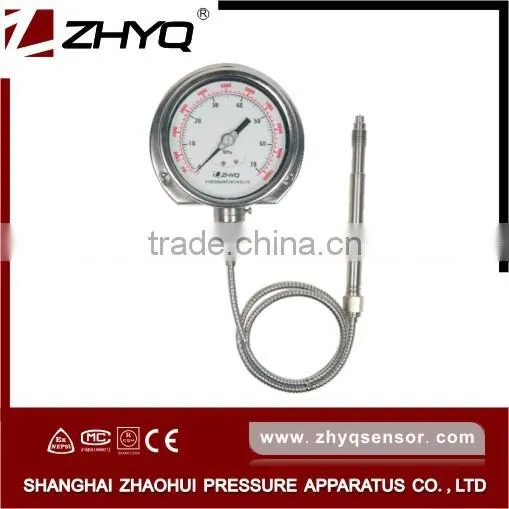

Mechanical Melt Pressure Gauge with local reading
Description
1. PT124Y-614 mechamical melt pressure gauge is with flexible stem and local index display,
2. This melt pressure gauge adopts the original German packaging machine stamen, isolated diaphragm and all stainless steel structure.
3. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
4. The mechanical pressure gauge can repcace similar interantional Melt Pressure Gauges.
Application
Plastic injection molding
Chemical fibre and filature
Rubber & plastic machinery
Compression moulding machine
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Spacification
Name |
Mechanical Melt Pressure Gauge with local reading |
Range |
0-1MPa ~ 0-150MPa(0-10Bar ~ 0-1500Bar) |
Accuracy |
±1.6%FS |
| Rigid stem | 6", 9" optional |
Flexible stem |
0.5~ 5m |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm melt pressure gauge with local reading |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH melt pressure gauge with local reading |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Process Connection |
1/2-20UNF, M22×1.5,M14*1.5(Optional) |

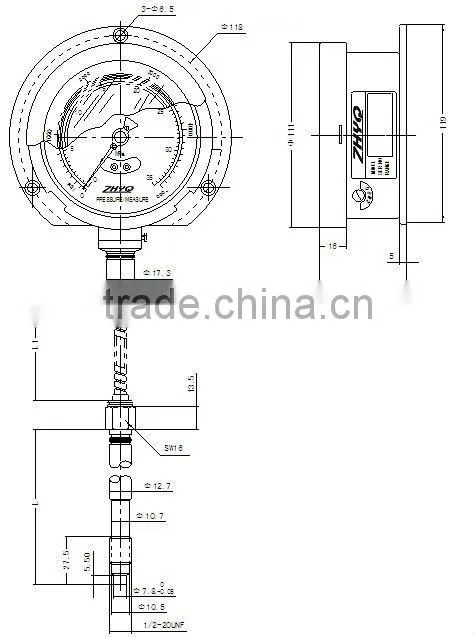

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range (bar) |
Rigid/Flexible length (inch) |
Screw Thread |
Other requirement |
PT124Y-614 |
* |
* |
* |
--- |
Example:PT124Y-614-350Bar-6”/18"-1/2-20UNF | ||||
Price, Package and Service
1, ZHYQ is producing various melt pressure gauges for 15+ years
2. OEM is available and our price is more competitive
3, Any questions from your are welcome and will be replied in 24 hours.
4, 7 days replacement, 12 months free repair if it's the problem of product's quanlity.
5, All goods will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains Electric contact Melt Pressure Gauge, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
