Help CenterMv/v Signal Output Melt Pressure Gauge With CE Certificate
Related Products
-
Bourdon Tube Homogenizer Pressure GaugeUS$ 80 - 150MOQ: 1 Piece -
Glycerine or Silicon Oil Filled Pressure GaugeUS$ 120 - 200MOQ: 1 Piece
-
4'' Diameter Extrusion Pressure GaugesUS$ 180 - 380MOQ: 1 Piece
-
Mechanical Melt Pressure GaugeUS$ 125 - 175MOQ: 1 Piece
-
Mechanical Melt Pressure Gauge With Local ReadingUS$ 150 - 260MOQ: 1 Piece
Specifications
melt pressure gauge1.rigid stem, SS structure
2.with local LCD display
3.small orders are available
4.CE&ISO9001 certified

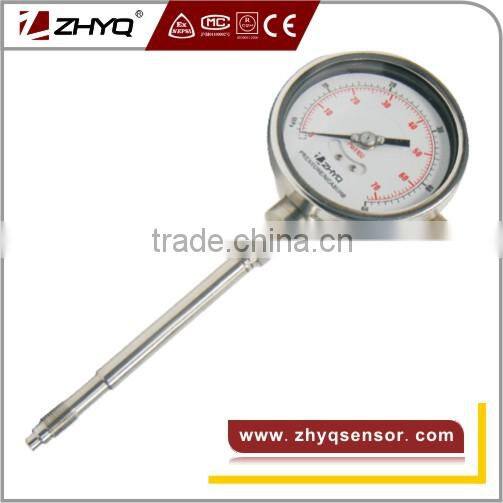

Mv/v signal output melt pressure gauge with CE certificate
Description
PT124Y-612 machanical melt pressure gauge with output
PT124G-612 adopts the original packaging machine core, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing. This model has various signal output optional.
Application
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Feature
With signal output melt pressure gauge
Stainless steel sealing melt pressure gauge
Install easily melt pressure gauge
Zero adjustment melt pressure gauge
High reliability and good repeatability
Specification
Range |
0~100bar~700bar melt pressure gauge |
Output: |
3.33mv/v,4-20ma, 0-10v |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube melt pressure gauge |
Over Pressure |
1.5*FS |
Dial Diameter |
100mm melt pressure gauge |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH melt pressure gauge |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Process Connection |
M22*1.5;M18*1.5,M14*1.5(Optional) |

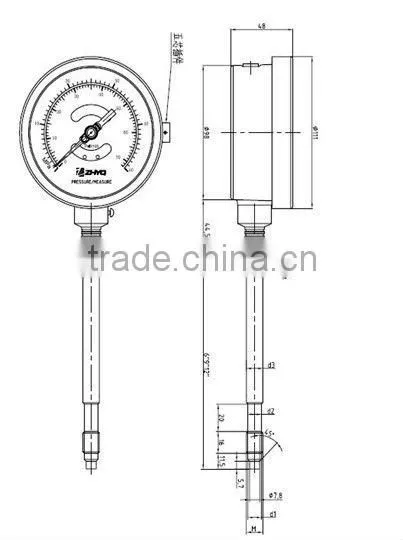

Dimension
Ordering guide
| Model | Range(bar) | Snout | process connection | Other requirements |
| * | * | * | * | … |
| Example:PT124Y-612-350Bar-3.33nV/V-6"-1/2-20UNF-6Pin | ||||
| Notes: * is required, … is optional | ||||
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Moneygram.
4. How about the usual delivery time?
We will send goods to you within 10 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Company information
We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2000) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!
